Variable Induction Control Valve: Service and Repair

REMOVAL

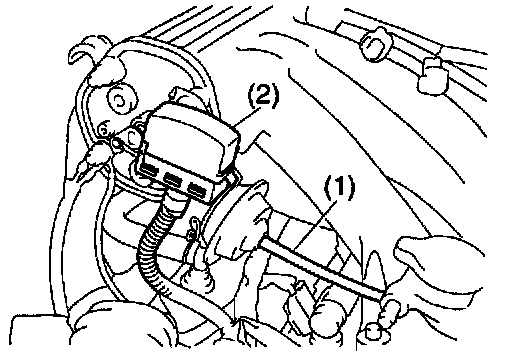

1. DISCONNECT ACTUATOR VACUUM HOSE
2. DISCONNECT DLC1 FROM DLC1 BRACKET
3. REMOVE INTAKE AIR CONTROL VALVE

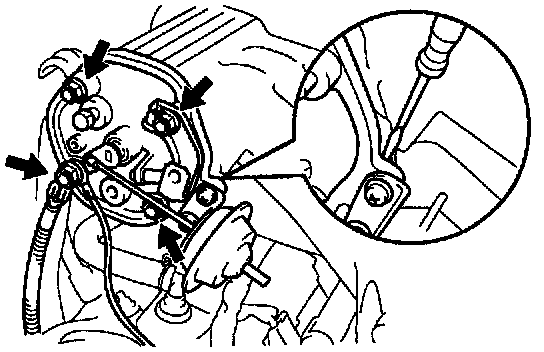

(a) Remove the 4 nuts and DLC1 bracket, and disconnect the ground strap and cable.
(b) Remove the intake air control valve by prying a screwdriver between the intake air control valve and air intake chamber.
(c) Remove the gasket.


INSTALLATION
1. INSTALL INTAKE AIR CONTROL VALVE

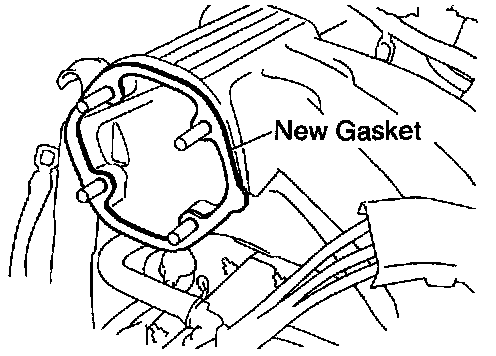

(a) Install a new gasket to the air intake chamber.

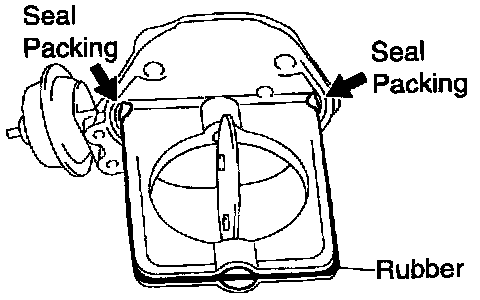

(b) Apply a light coat of engine oil to the rubber portions.





(c) Apply seal packing to the positions of the intake air control valve shown in the illustration.

Seal packing:
Part No. 08826-00080 or equivalent

(d) Install the intake air control valve, DLC1 bracket and ground strap and cable with the 4 nuts.

Torque: 14.5 N.m (145 kgf.cm, 10 ft.lbf)

2. CONNECT DLC1
3. CONNECT ACTUATOR VACUUM HOSE
