EGR Valve: Service and Repair

REMOVAL
Remove the 4 nuts, EGR pipe and 2 gaskets.

INSTALLATION
Install 2 new gaskets.

Torque: 12 N.m (120 kgf.cm 9 ft.lbf)


Disconnect EGR gas temperature sensor connector and clamp

Remove EGR valve

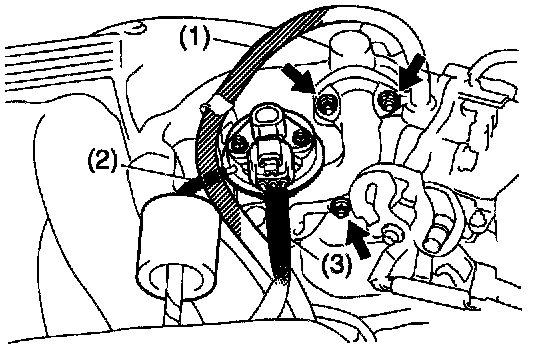

(a) Disconnect these hoses and connector:
(1) EVAP hose from EGR valve hook
(2) Vacuum hose from EGR valve
(3) EGR valve position sensor connector
(b) Remove the 3 nuts, EGR valve and gasket.

INSTALLATION HINT: Install a new gasket.

Torque: 12 N.m (120 kgf.cm, 9 ft.lbf)

Remove EGR gas temperature sensor.


INSTALLATION
Installation is the reverse order of removal.

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)
