Evaporative Emissions System: Testing and Inspection

EVAP SYSTEM INSPECTION

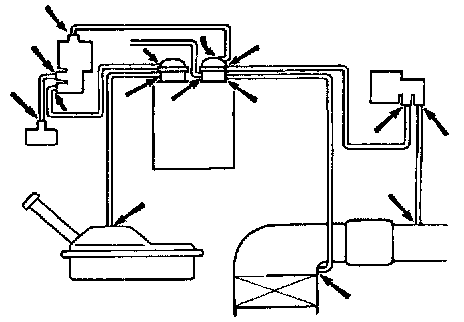

1. Visually inspect lines and connections.
Look for loose connections, sharp bends or damage.
2. Visually inspect fuel tank.
Look for deformation, cracks or fuel leakage.

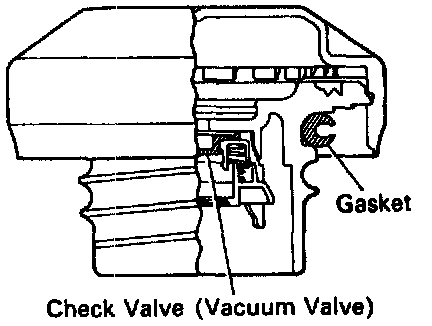

3. Visually inspect fuel tank cap.
Check if the cap and/or gasket are deformed or damaged. If necessary, repair or replace the cap.
