Compressor Magnetic Clutch Circuit

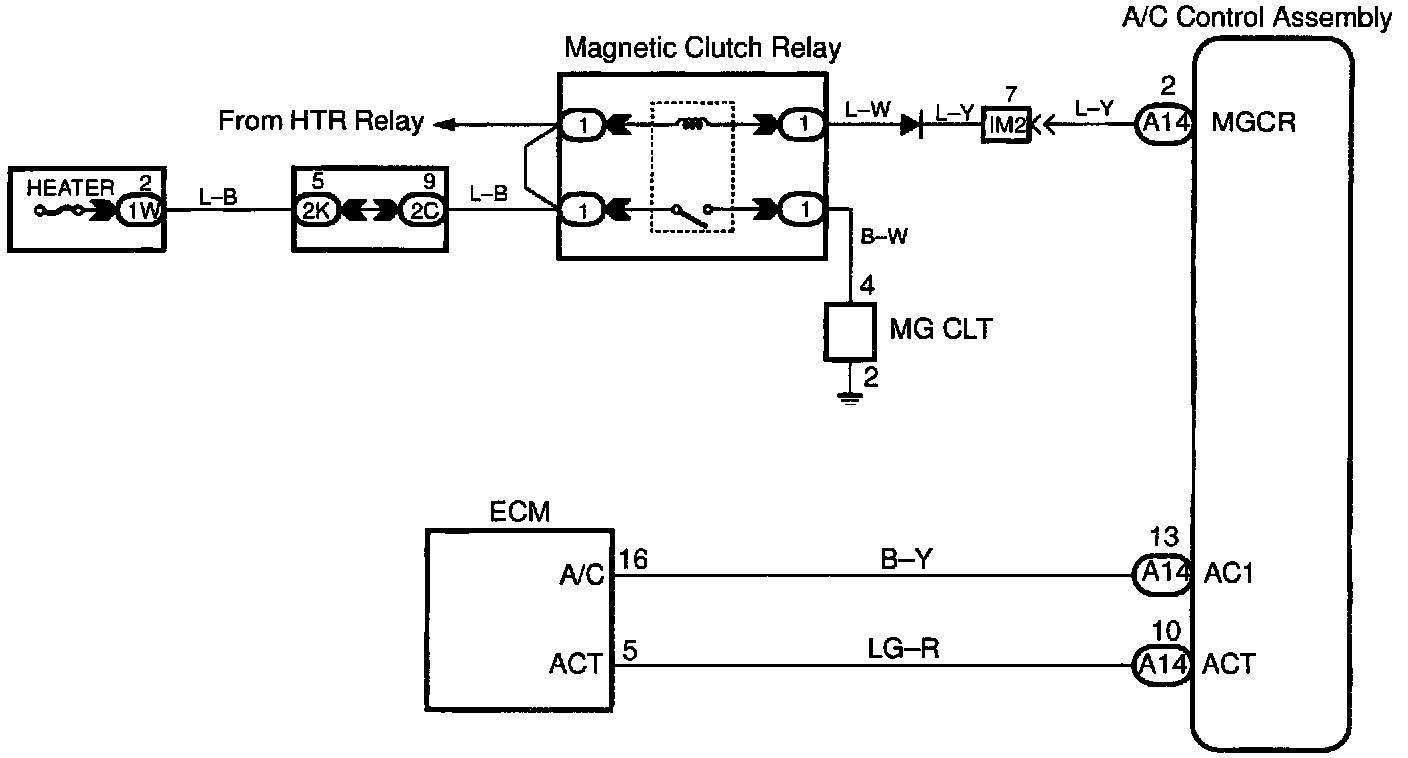

CIRCUIT DESCRIPTION

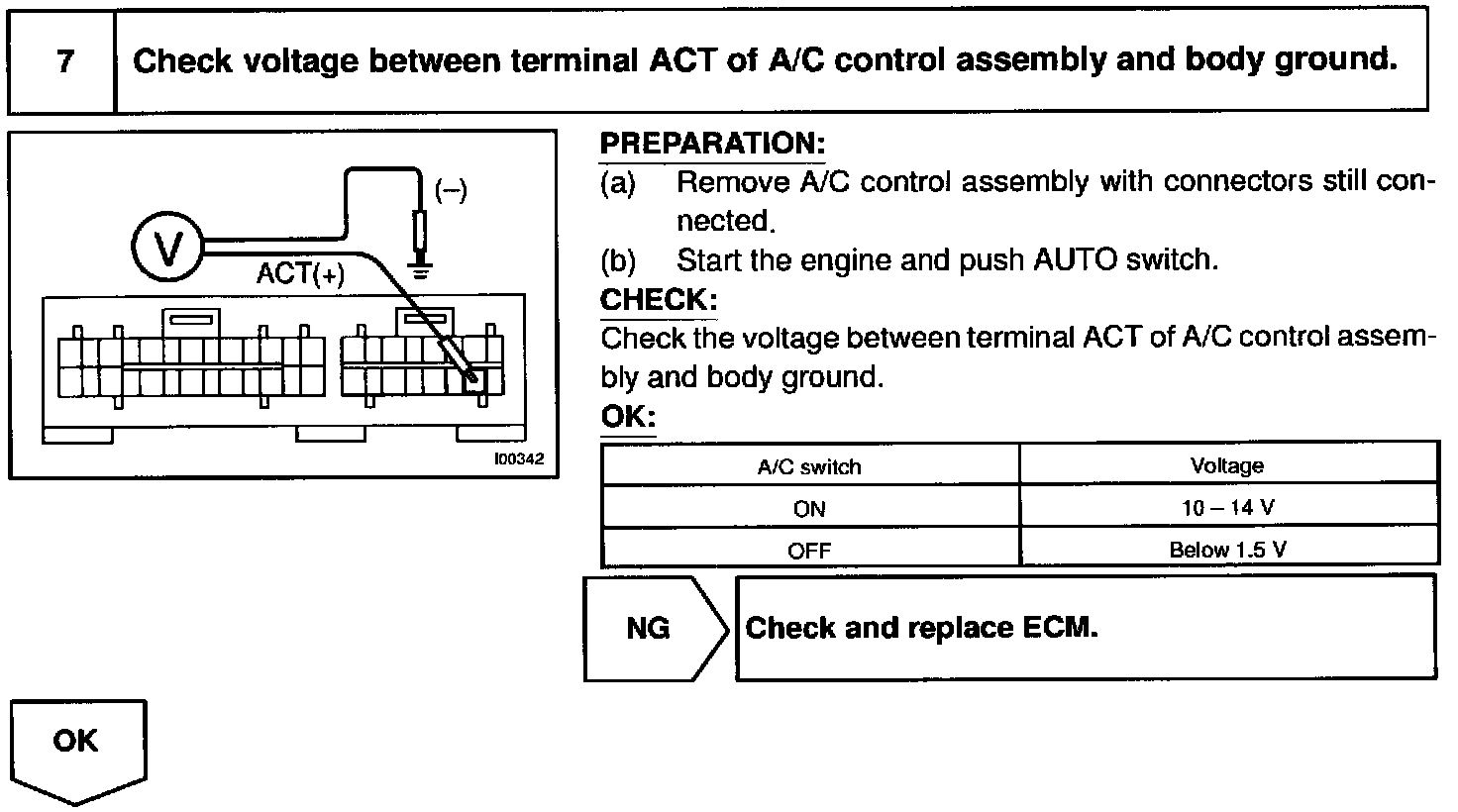

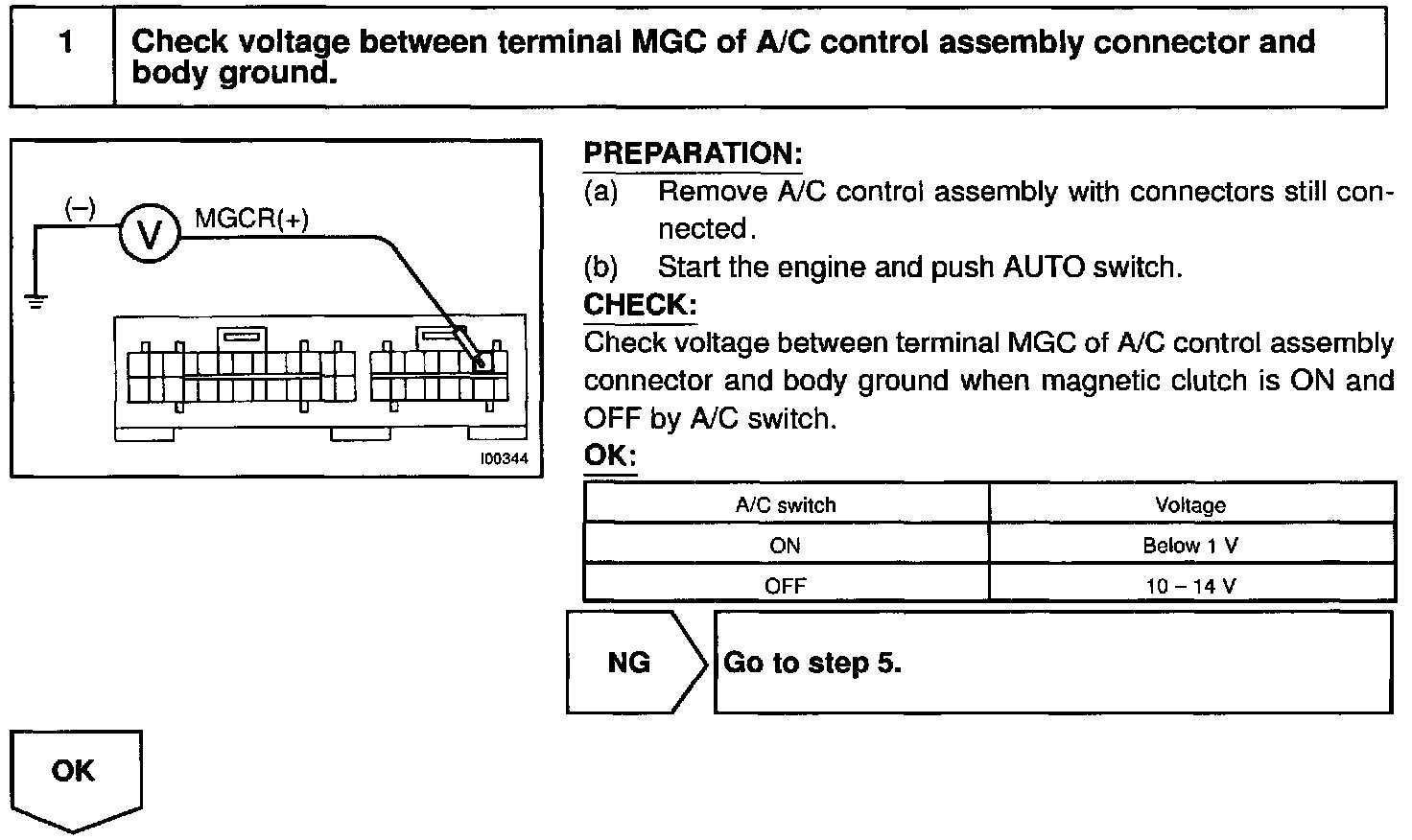

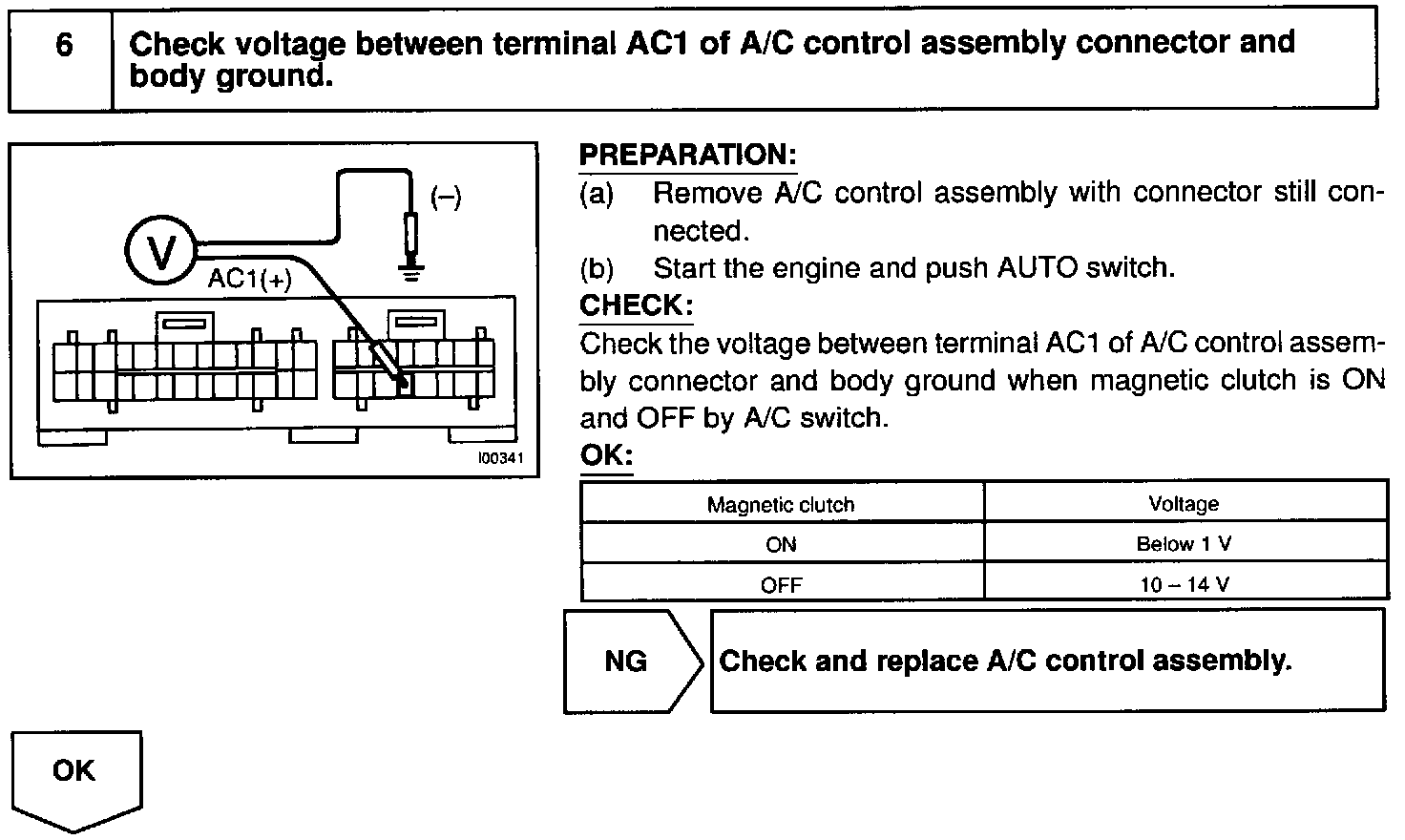

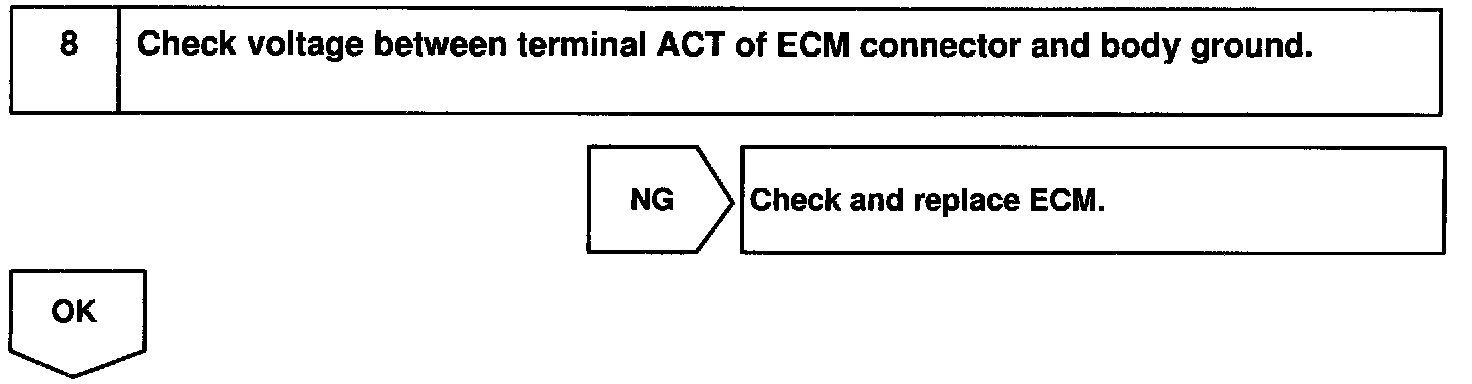

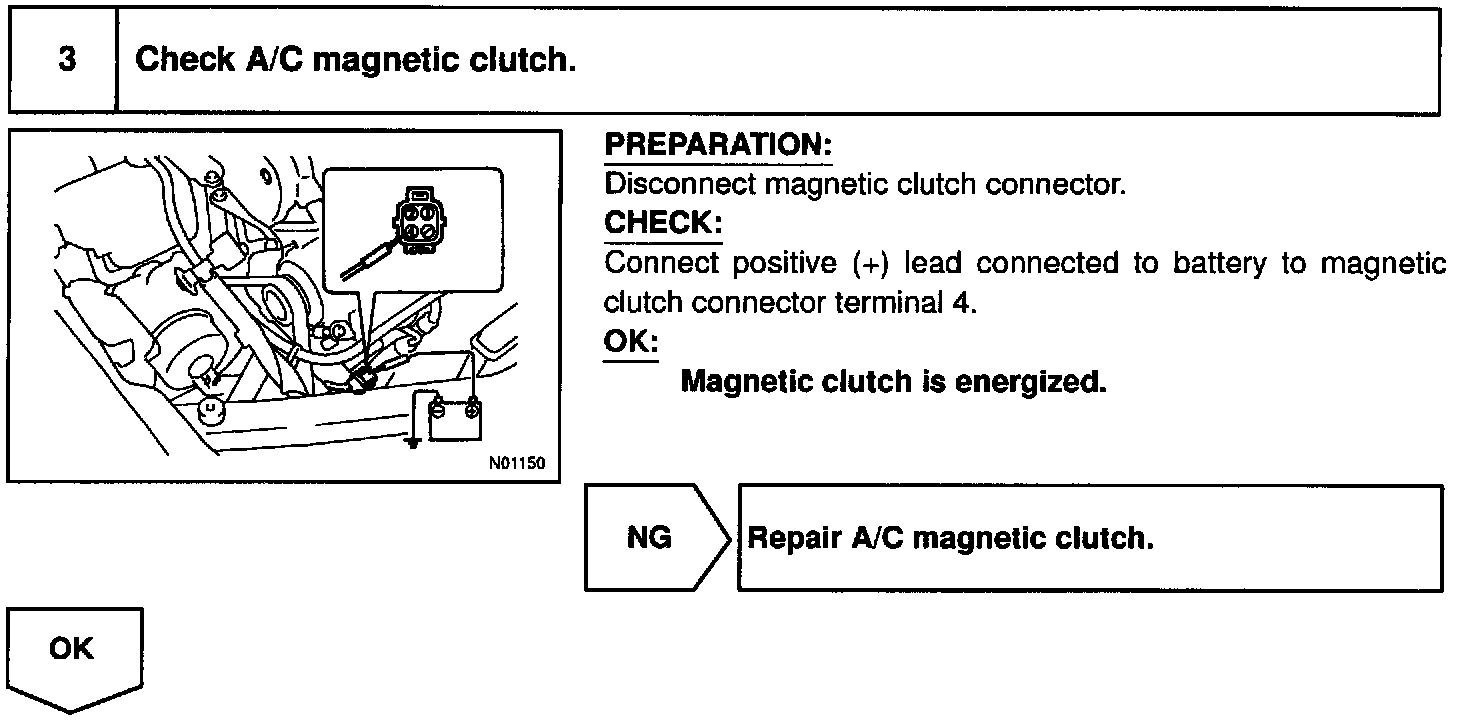

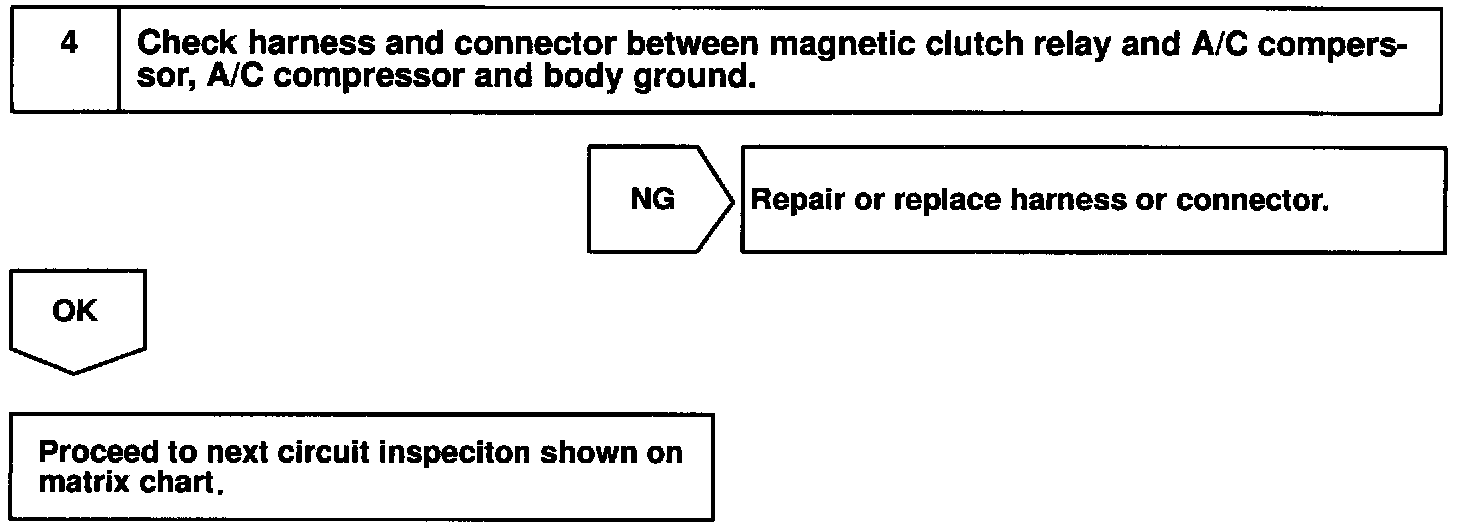

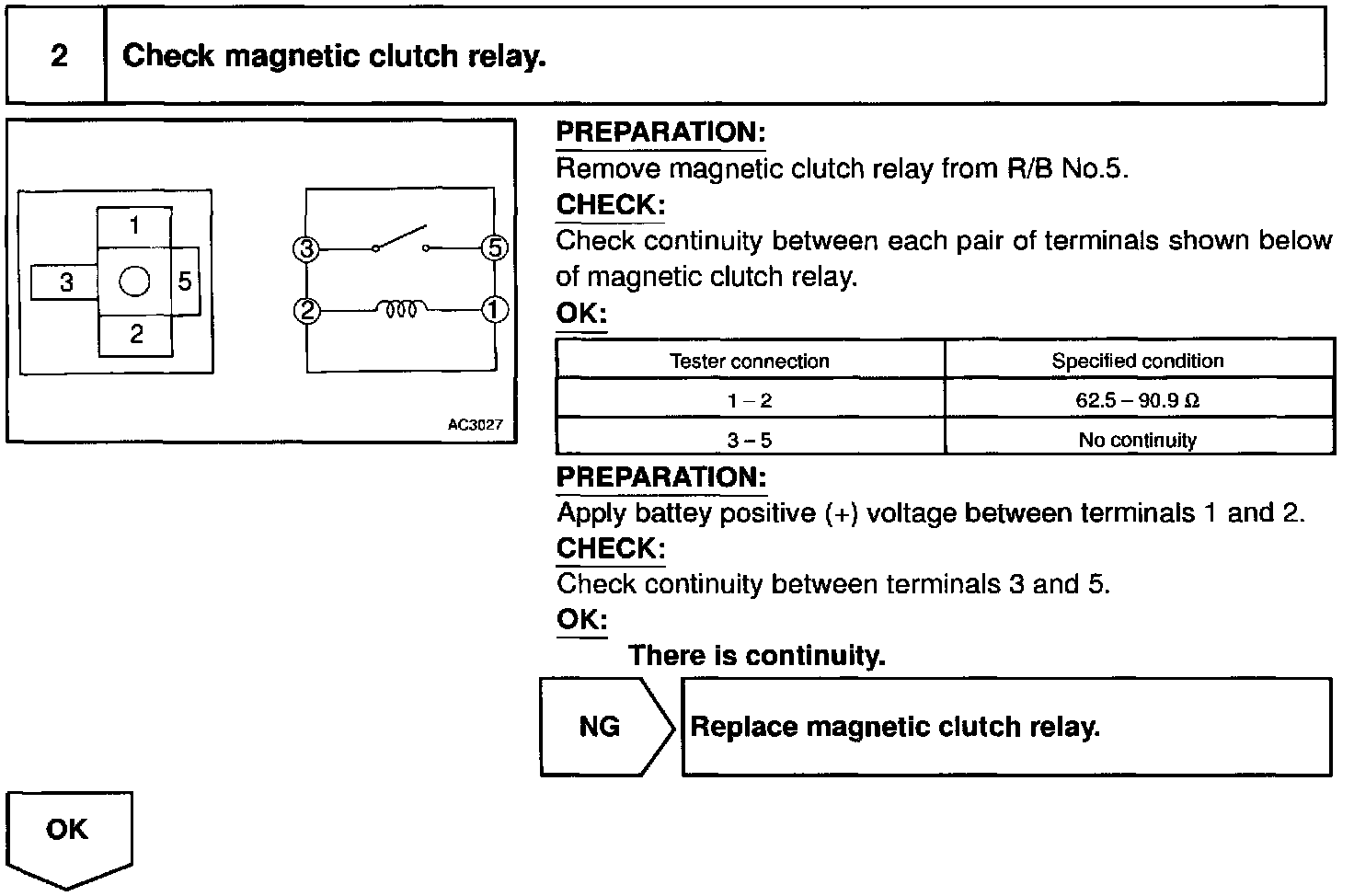

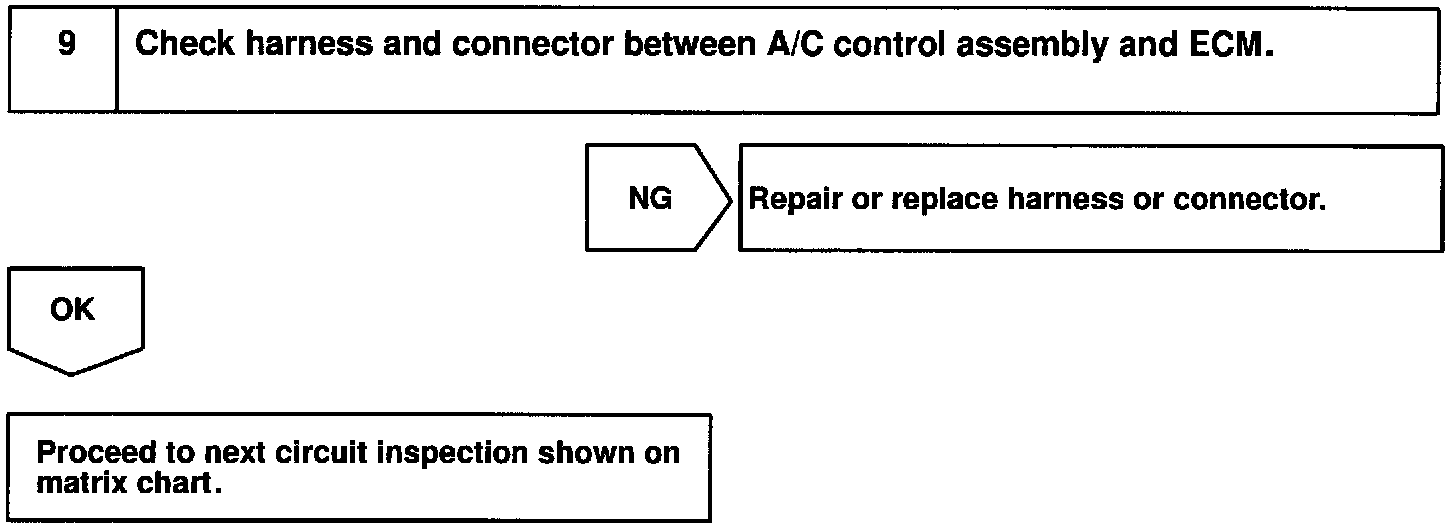

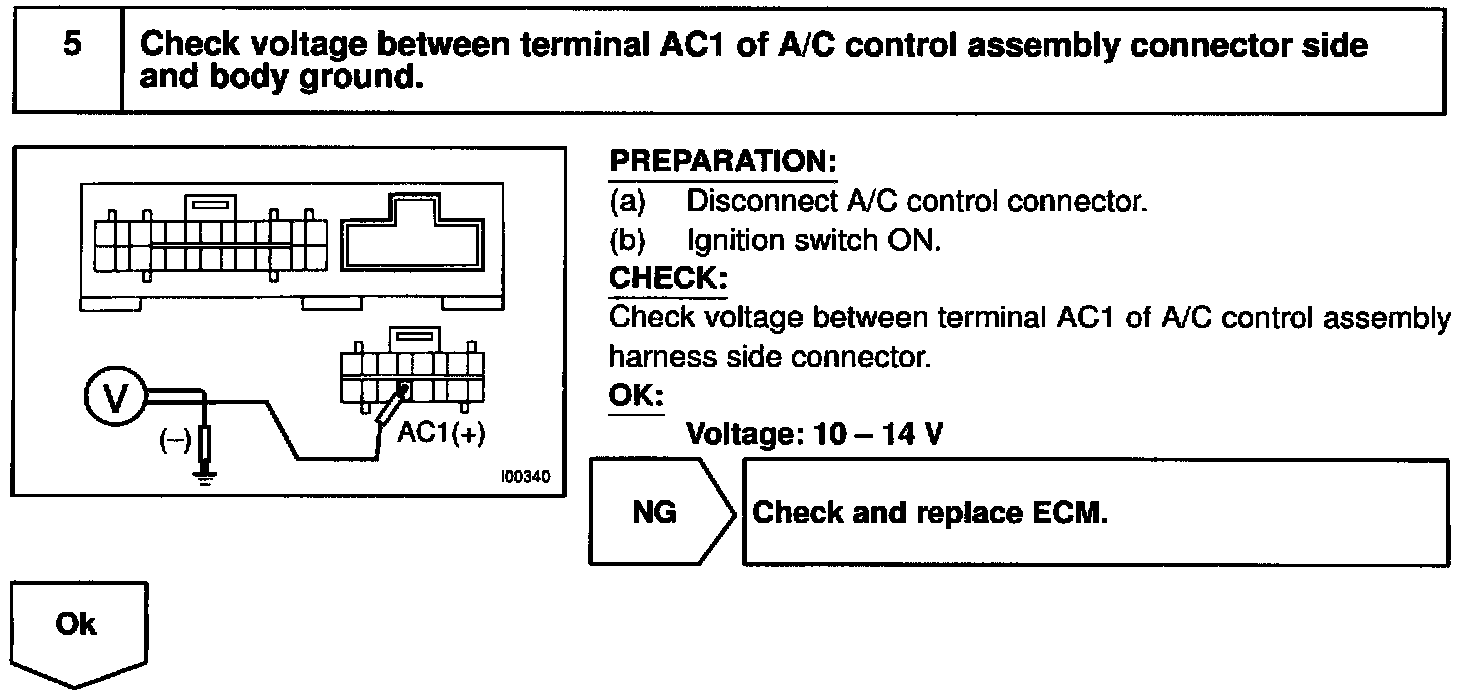

The A/C control assembly outputs the magnetic clutch ON signal from terminal AC1 to the ECM. When the ECM receives this signal, it sends a signal from terminal ACT and switches the A/C magnetic clutch relay ON, thus turning on the A/C magnetic clutch.
