Back-Up Power Source Circuit


CIRCUIT DESCRIPTION
This is the back-up power source for the A/C control assembly. Power is supplied even when the ignition switch is off and is used for DTC memory, etc..

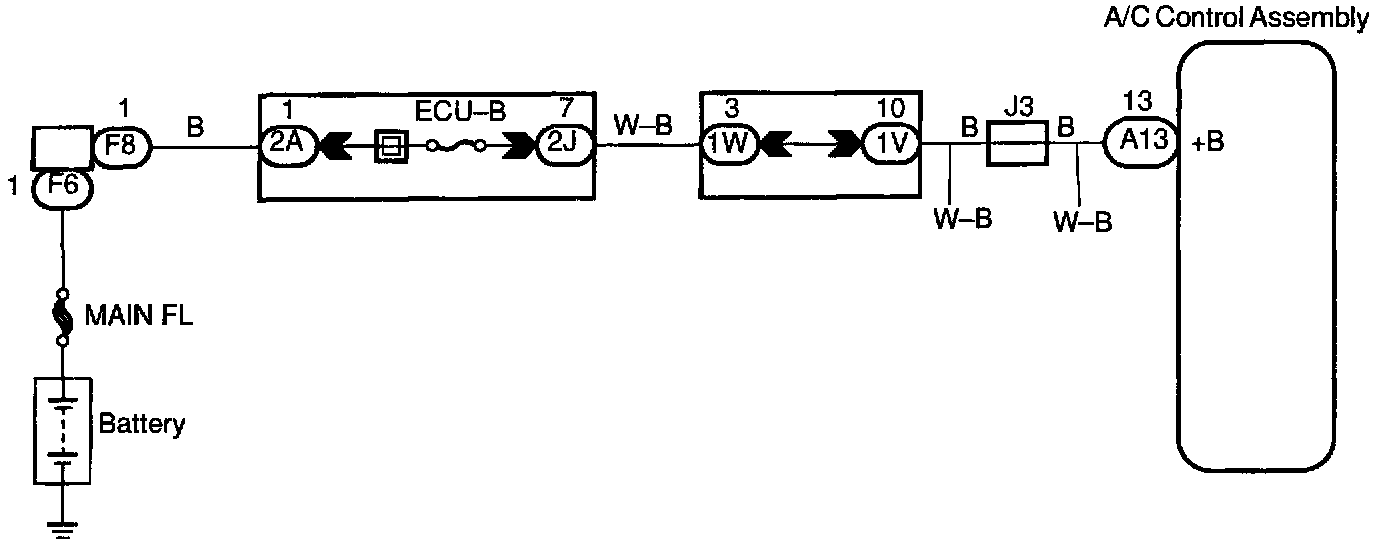

WIRING DIAGRAM

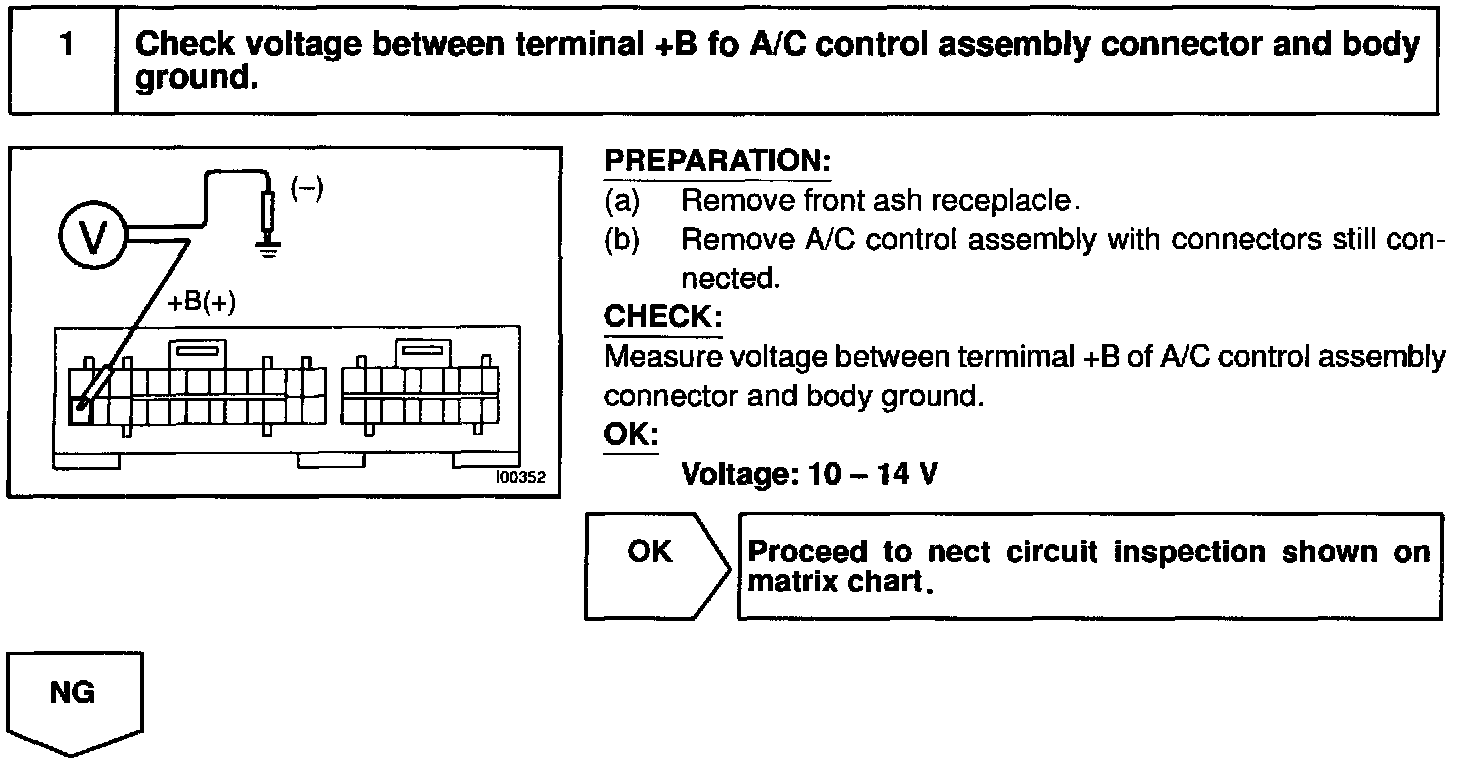

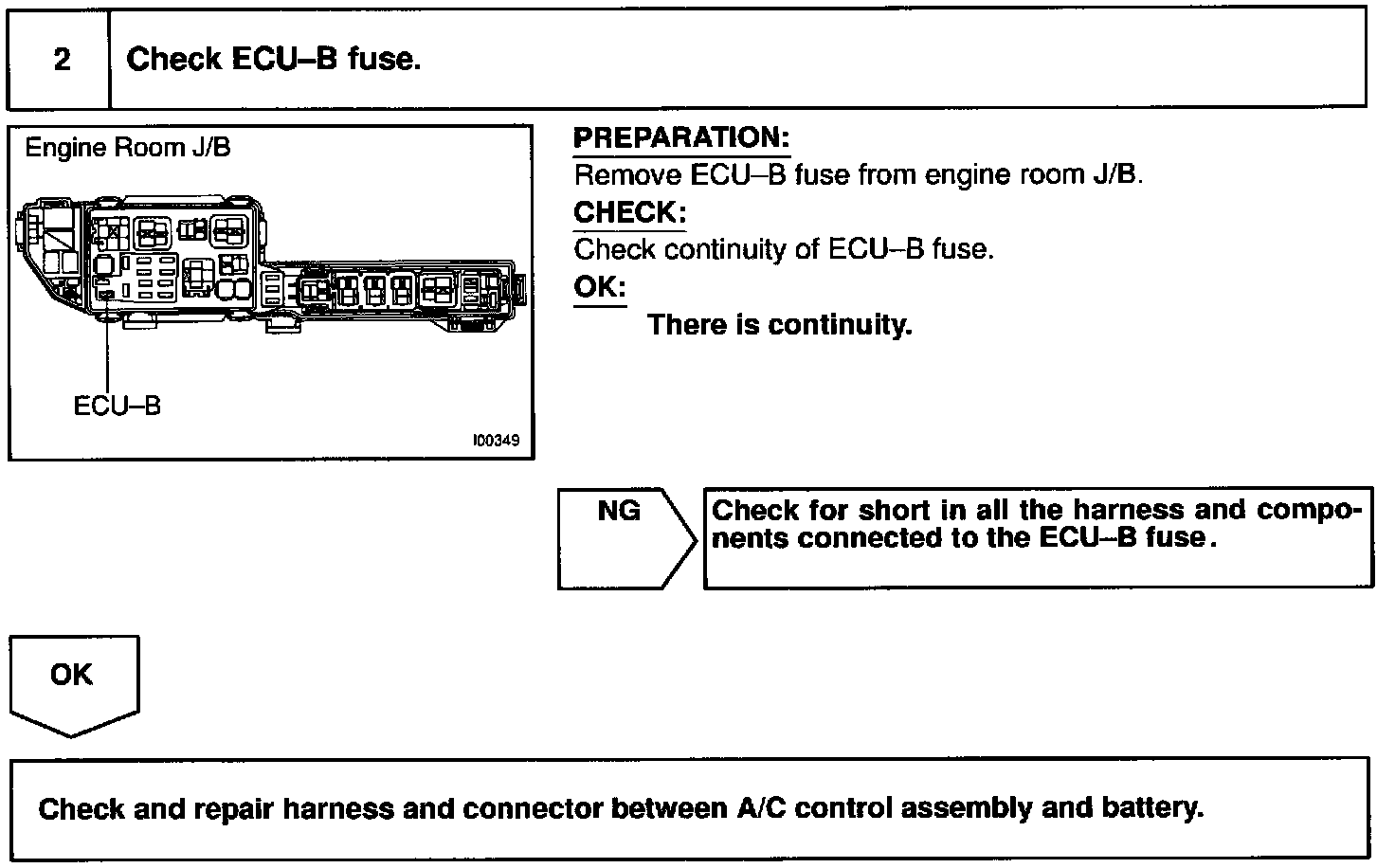

INSPECTION PROCEDURE
