Blower Motor Relay: Testing and Inspection

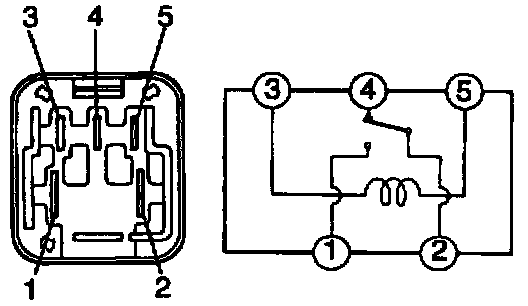

1. INSPECT HEATER MAIN RELAY

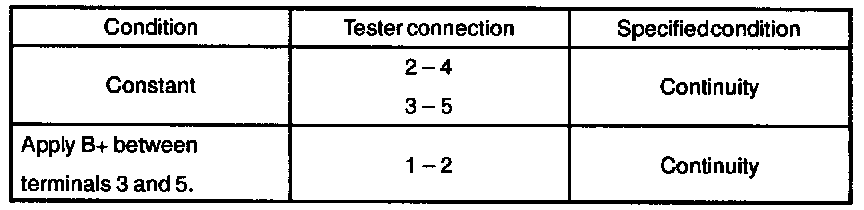

(Marking: HTR RLY) CONTINUITY
If continuity is not as specified, replace the relay.

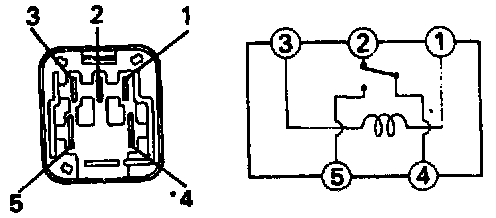

6. INSPECT ENGINE MAIN RELAY

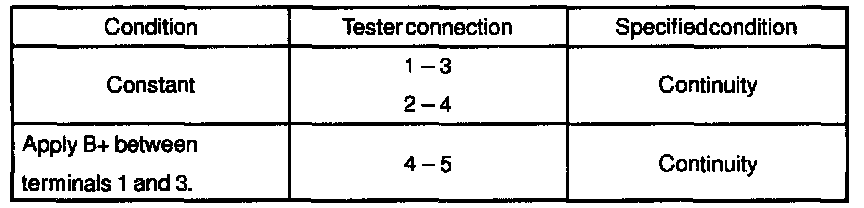

(Marking: ENGINE MAIN RLY) CONTINUITY
If continuity is not as specified, replace the relay.
