Expansion Valve: Service and Repair

REMOVAL




1. REMOVE EVAPORATOR Evaporator Case

2. REMOVE EXPANSION VALVE

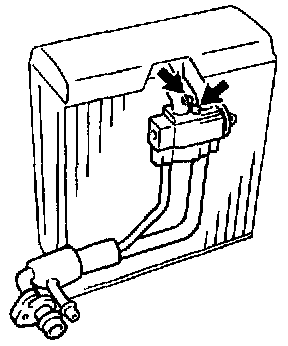

Using a hexagon wrench, remove the 2 bolts and separate the expansion valve and evaporator and tubes.
Torque: 5.4 Nm (55 kg.cm, 48 in.lb)

INSTALLATION

HINT: Lubricate 4 new O-rings with compressor oil and install the tubes and valve.

INSTALLATION
Installation is in the reverse order of removal.
