Condenser Fan: Service and Repair

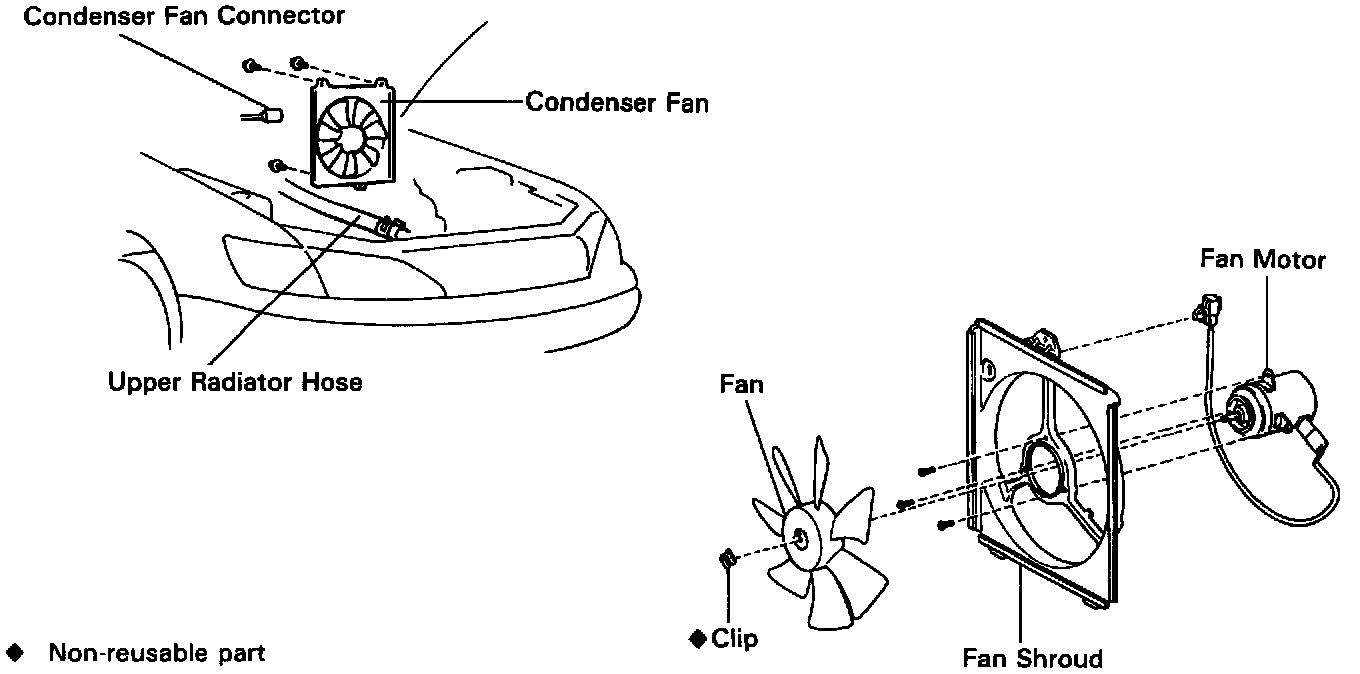

COMPONENTS

REMOVAL
1. DRAIN ENGINE COOLANT FROM RADIATOR

REMOVAL HINT: It is not necessary to drain out all the coolant.

2. DISCONNECT UPPER RADIATOR HOSE FROM RADIATOR

3. REMOVE CONDENSER FAN
a. Disconnect the connector.
b. Remove the 3 bolts and fan.

DISASSEMBLY




1. REMOVE FAN
Remove the clip and fan.

NOTE: When removing the clip and fan, do not apply too much force to the motor shaft. And do not scratch the motor shaft.

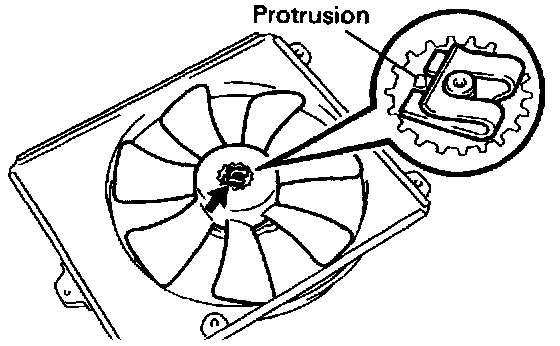

REASSEMBLY HINT: Install a new clip from the side opposite the protrusion on the fan.

2. REMOVE FAN MOTOR
a. Disconnect the lead wire from the fan shroud.
b. Remove the 3 screws and fan motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.

INSTALLATION
Installation is in the reverse order of removal.
