Air Outlet Servomotor

REMOVAL




1. REMOVE THESE PARTS:
a. No. 1 instrument lower panel
b. Instrument lower panel LH

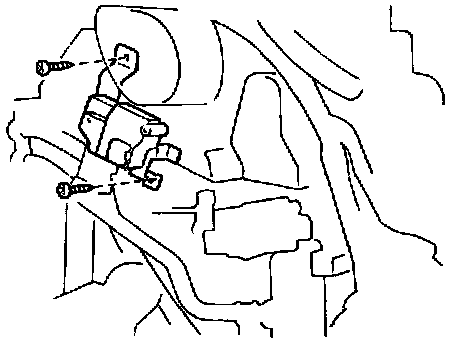

2. REMOVE AIR OUTLET SERVOMOTOR
a. Disconnect the connector.
b. Remove the 2 screws and servomotor.

INSPECTION
INSPECT AIR OUTLET SERVOMOTOR OPERATION

INSTALLATION
Installation is in the reverse order of removal.
