Air Mix Control Motor

REMOVAL




1. REMOVE THESE PARTS:
a. No. 1 instrument lower panel
b. Instrument lower panel LH

2. REMOVE AIR MIX SERVOMOTOR
a. Disconnect the connector.

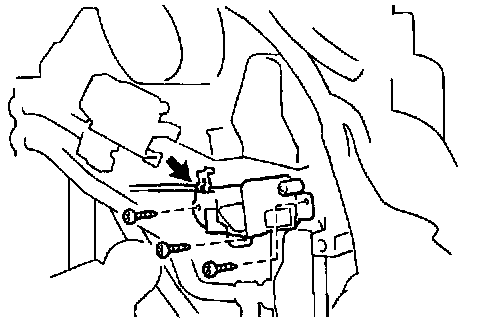

b. Remove the 3 screws and servomotor, then disconnect the control cable.

INSPECTION
1. INSPECT AIR MIX SERVOMOTOR OPERATION Air Door

2. INSPECT POSITION SENSOR

INSTALLATION
Installation is in the reverse order of removal.
