Air Inlet Servomotor

REMOVAL




1. REMOVE THESE PARTS:
a. Cowl side trim RH
b. Front door scuff plate RH
c. No. 2 instrument panel under cover
d. Glove compartment

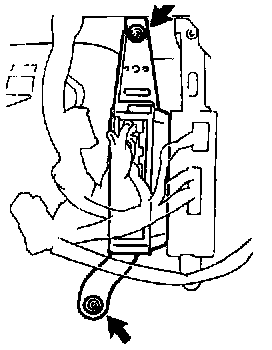

2. REMOVE ECM
a. Disconnect the connectors.
b. Remove the 2 nuts and ECM.

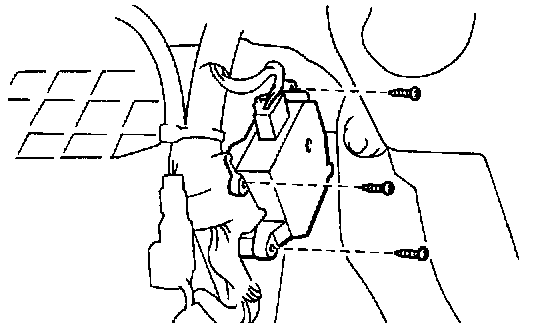

3. REMOVE AIR INLET SERVOMOTOR
a. Disconnect the connector.
b. Remove the 3 screws and servomotor.

INSPECTION
1. INSPECT AIR INLET SERVOMOTOR OPERATION

2. INSPECT POSITION SENSOR

INSTALLATION
Installation is in the reverse order of removal.
