Oil Level Check

Engine Oil Level Check
- The engine oil level should be between the "L" and "F" marks on the dipstick.
- If low, check for leakage and add oil up to "F" mark.

CAUTION:
- Do not fill with engine oil above the "F" mark.

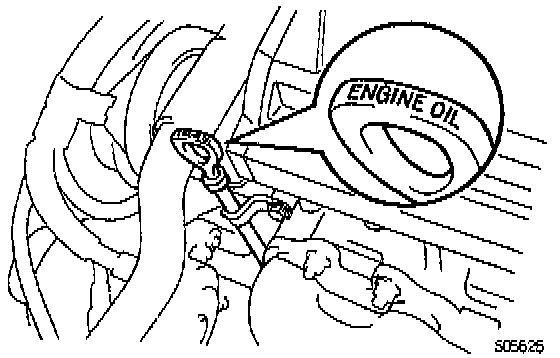

- The oil dipstick must be inserted so that the portion painted black faces the direction shown in the illustration.
