Valve: Testing and Inspection

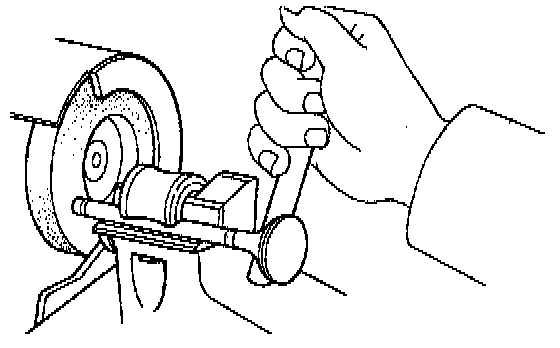

INSPECT AND GRIND VALVES1. Grind the valve enough to remove pits and carbon.

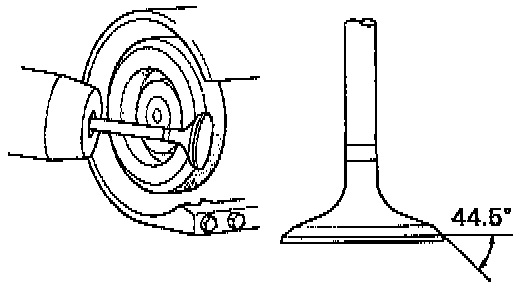

2. Check that the valve is ground to the correct valve face angle.
Valve face angle: 44.5°

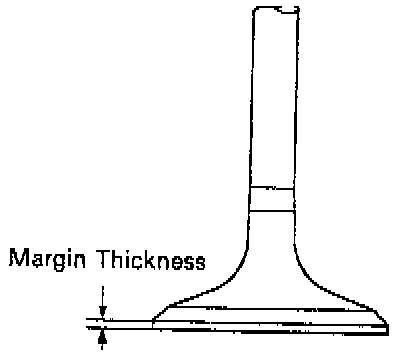

3. Check the valve head margin thickness.
Standard margin thickness: 1.0 mm (0.039 inch)
Minimum margin thickness: 0.5 mm (0.020 inch)
If the margin thickness is less than minimum, replace the valve.

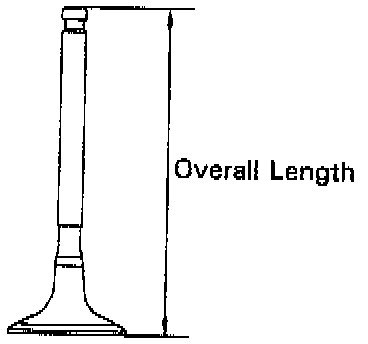

4. Check the valve overall length.
Standard overall length:
Intake: 95.45 mm (3.5779 inch)
Exhaust: 95.40 mm (3.7559 inch)
Minimum overall length:
Intake: 94.95 mm (3.7382 inch)
Exhaust: 94.90 mm (3.7362 inch)
If the overall length is less than minimum, replace the valve.
5. Check the surface of the valve stem tip for wear.
If the valve stem tip is worn, resurface the tip with a grinder or replace the valve.
CAUTION: Do not grind off more than minimum.
