Disassembly

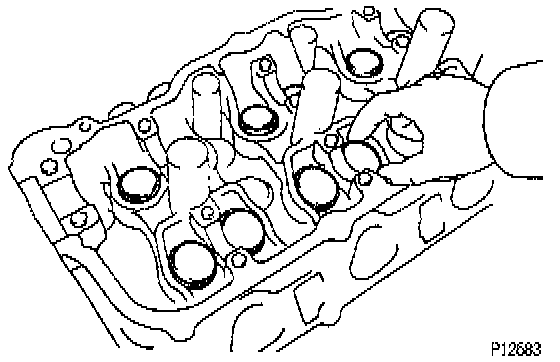

1. Remove valve lifters and shims.





NOTE: Arrange the valve lifters and shims in the correct order.

2. Remove valves.

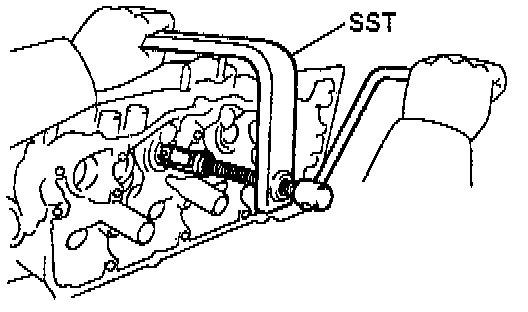

(a) Using Special Service Tool (SST) Valve Spring Compressor # 09202-70020 (Attachment # 09202-00010) or equivalent, compress the valve spring and remove the 2 keepers.
(b) Remove these parts:
- Spring retainer.
- Valve spring.
- Valve.

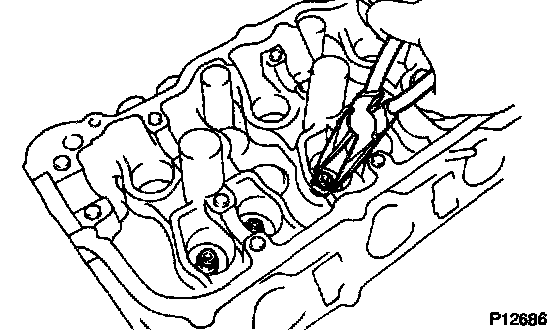

(c) Using needle-nose pliers, remove the oil seal.

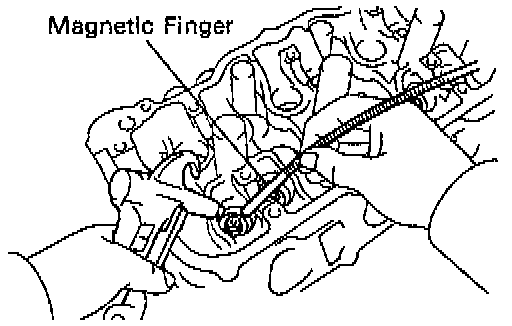

(d) Using compressed air and a magnetic finger, remove the spring seat by blowing air.

NOTE: Arrange the valves, valve springs, spring seats and spring retainers in the correct order.

- Proceed to Testing and Inspection.
