No. 2 Cooling Fan Motor Replacement

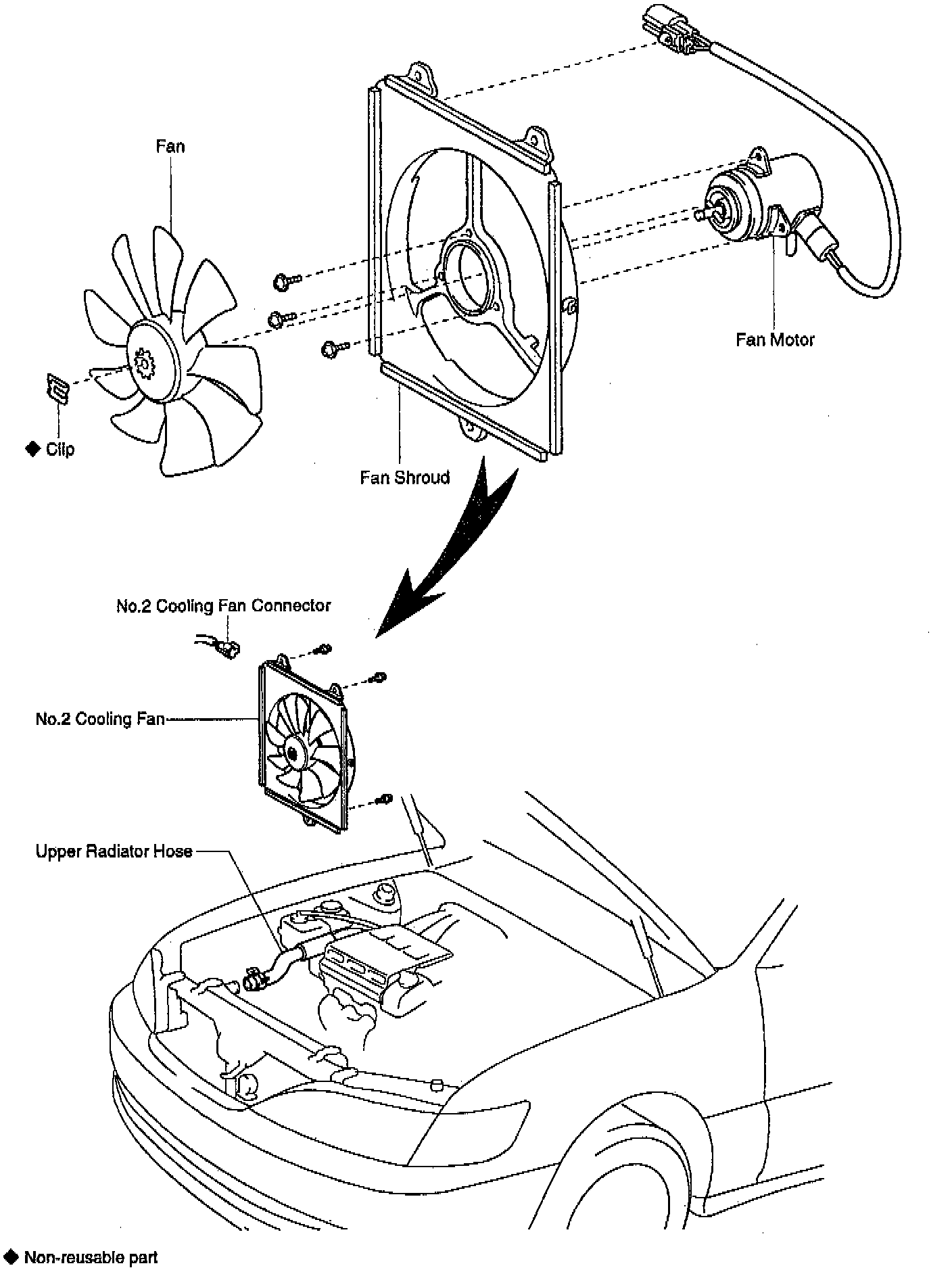

No.2 Cooling Fan.:

REMOVAL

HINT: INSTALLATION IS IN THE REVERSE ORDER OF REMOVAL.

1. Drain engine coolant.
2. Disconnect upper radiator hose from radiator.
3. Remove No.2 cooling fan.
(a) Disconnect the cooling fan connector.



(b) Remove the 3 bolts and cooling fan.
Torque: 5.0 Nm (44 in.lb)


DISASSEMBLY

HINT: ASSEMBLY IS IN THE REVERSE ORDER OF DISASSEMBLY.

1. Remove fan.
Remove the clip and fan.

CAUTION: When removing the clip and fan, do not apply too much force to the motor shaft. And do not scratch the motor shaft.




ASSEMBLY NOTE: Install a new clip from the side opposite the protrusion on the fan.




2. Remove fan motor.
(a) Disconnect the lead wire and connector from the fan shroud.

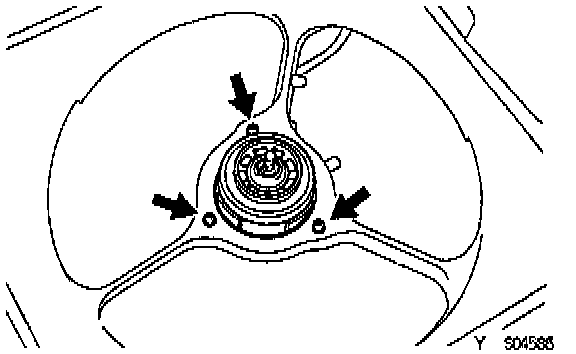

(b) Remove the 3 screws and fan motor.
