Brake Master Cylinder

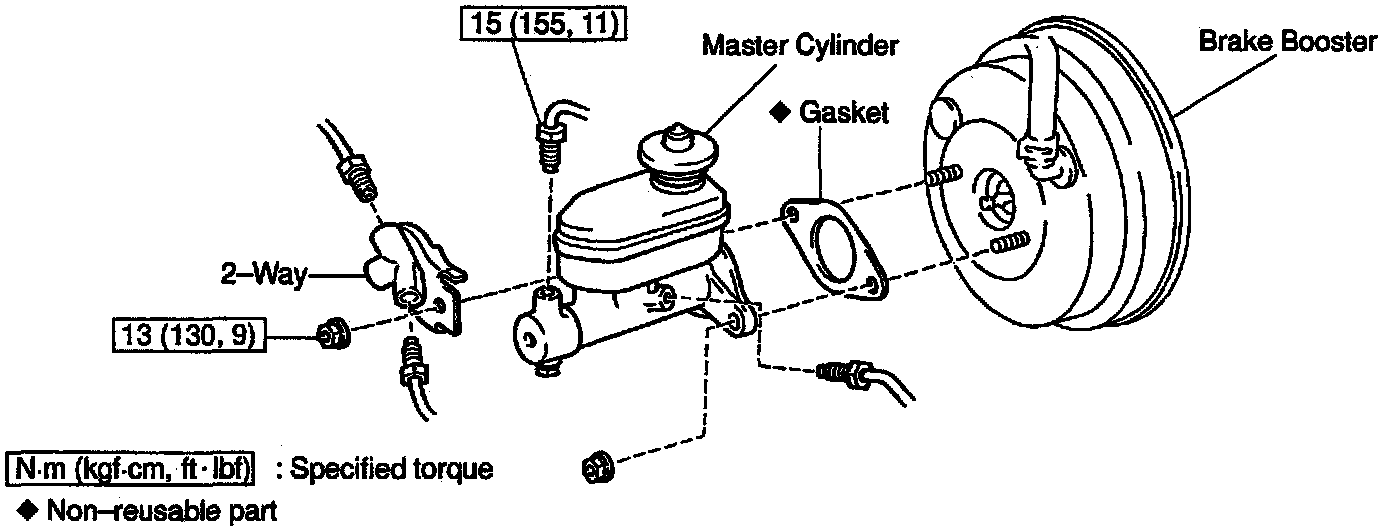

Brake Master Cylinder

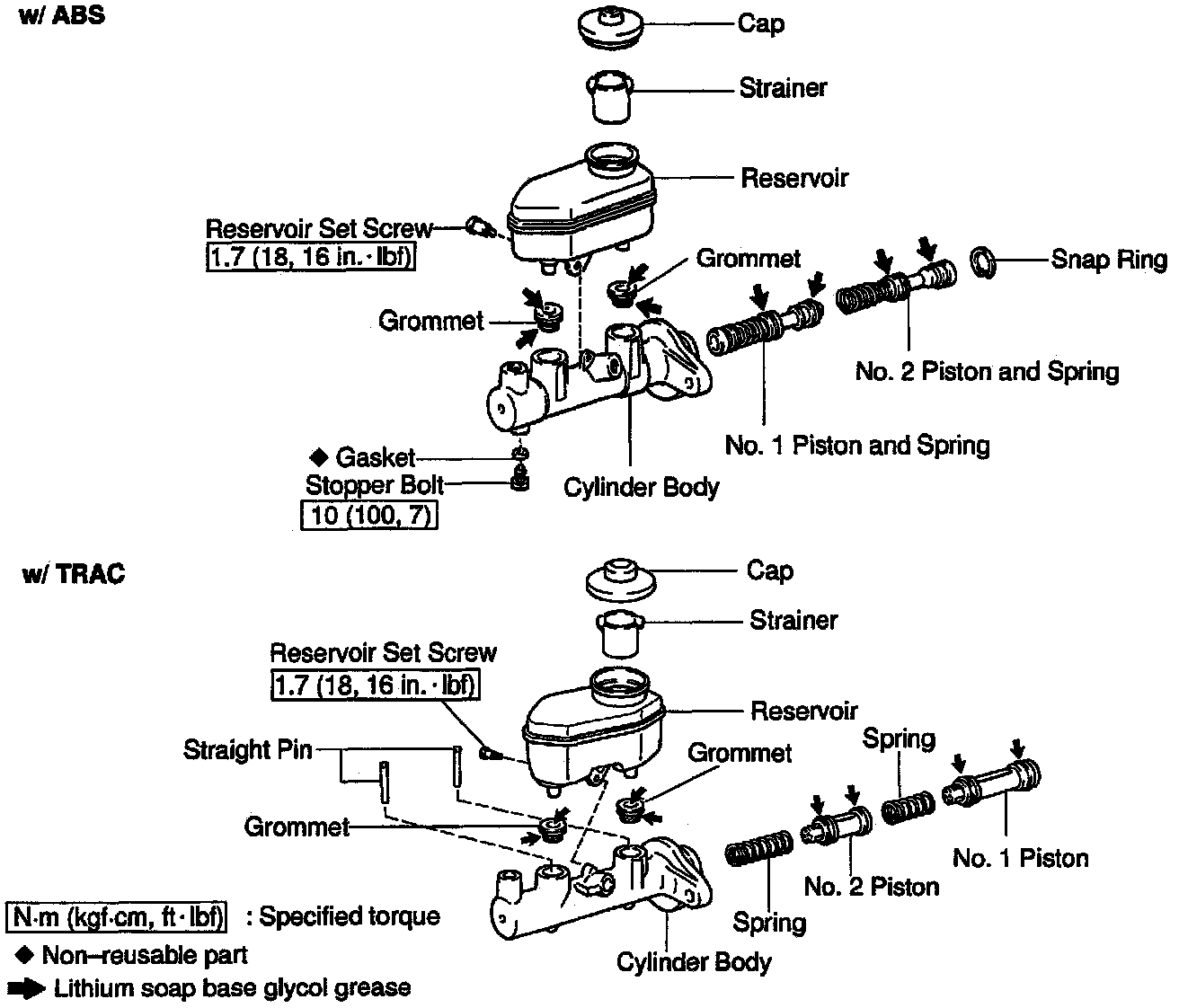

Brake Master Cylinder Components:
Brake Master Cylinder Components:
