Power Seat (Driver's Seat W/ Driving Position Memory)

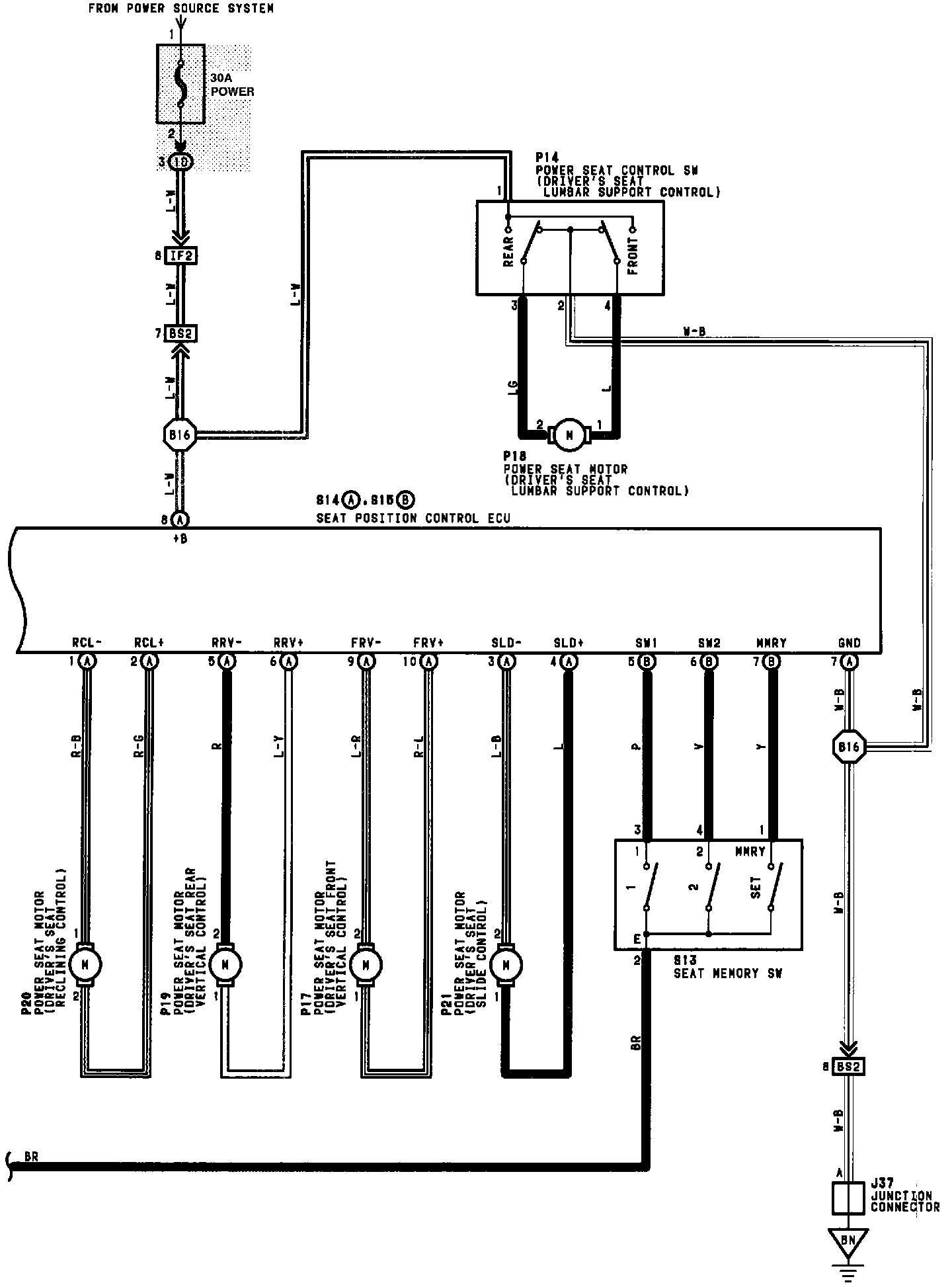

Power Seat (Driver's Seat W/ Driving Position Memory) (Part 1 Of 3):

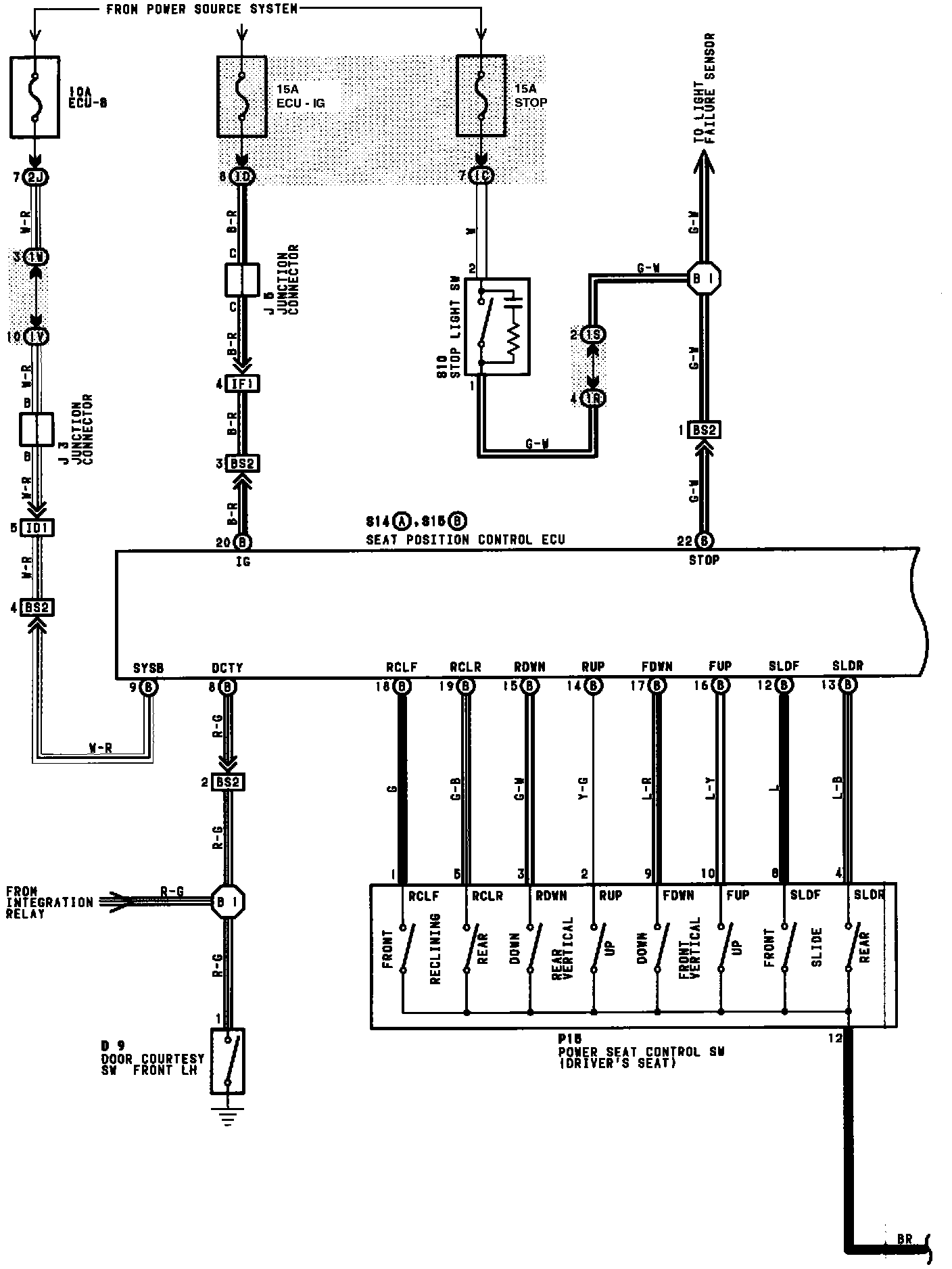

Power Seat (Driver's Seat W/ Driving Position Memory) (Part 2 Of 3):

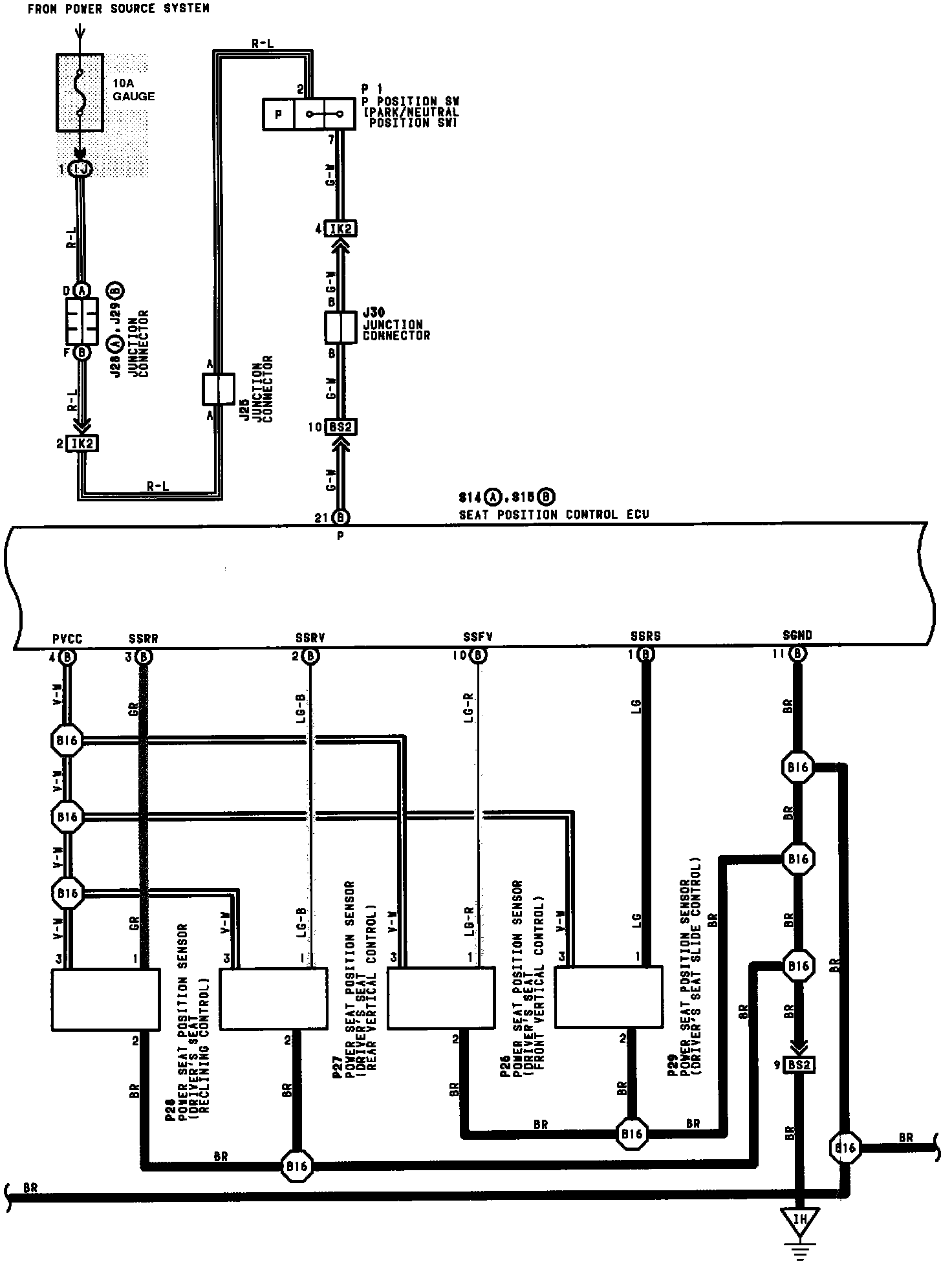

Power Seat (Driver's Seat W/ Driving Position Memory) (Part 3 Of 3):
