Wire Harness to Wire Harness

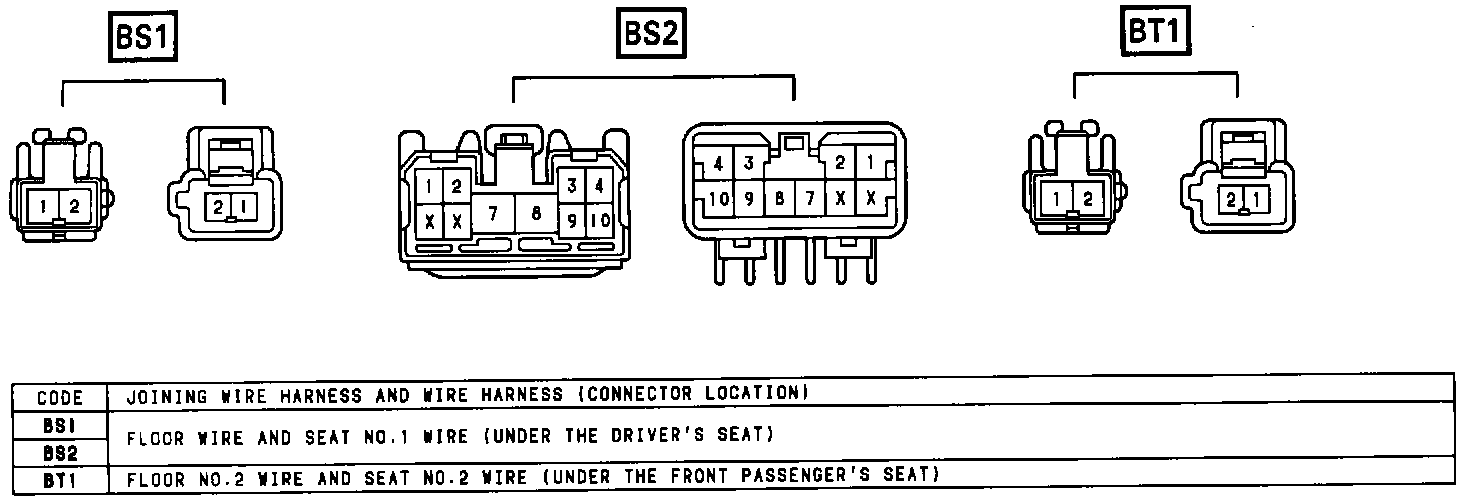

Connector Joining Wire Harness and Wire Harness:

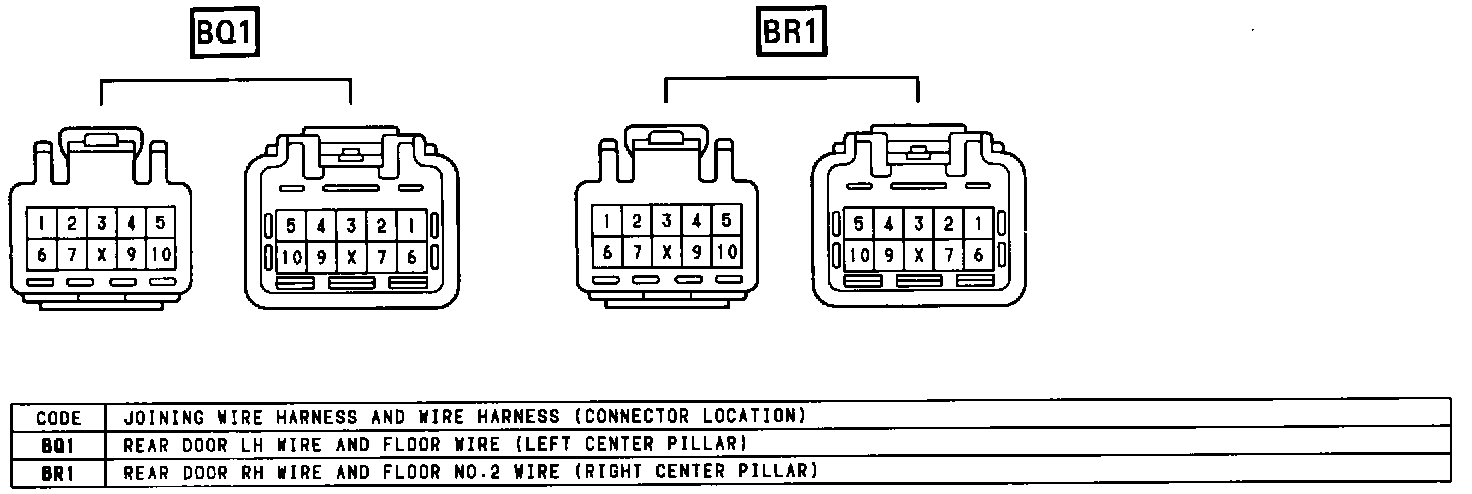

Connector Joining Wire Harness and Wire Harness:

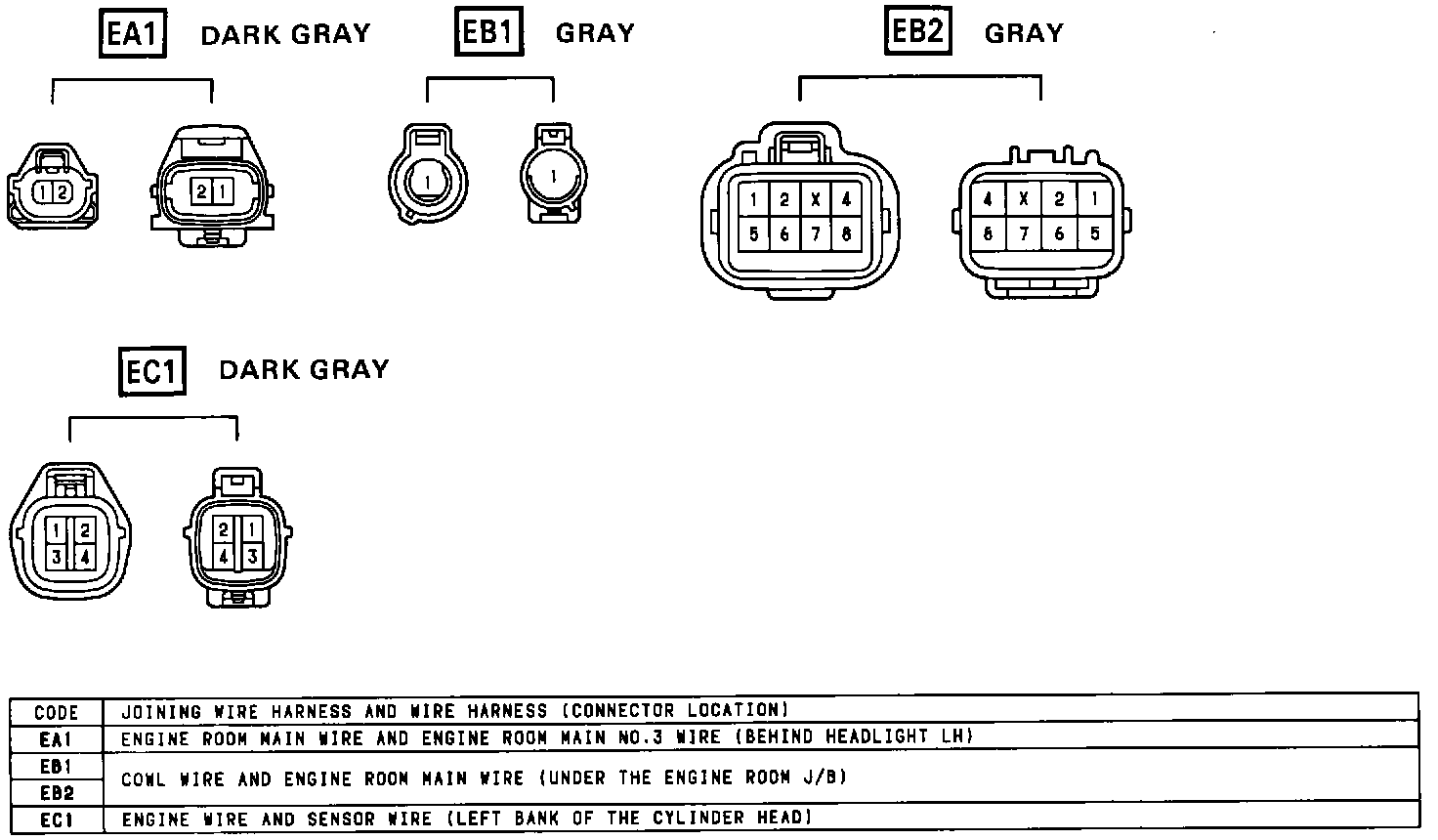

Connector Joining Wire Harness and Wire Harness:




Connector Joining Wire Harness and Wire Harness:




Connector Joining Wire Harness and Wire Harness:
