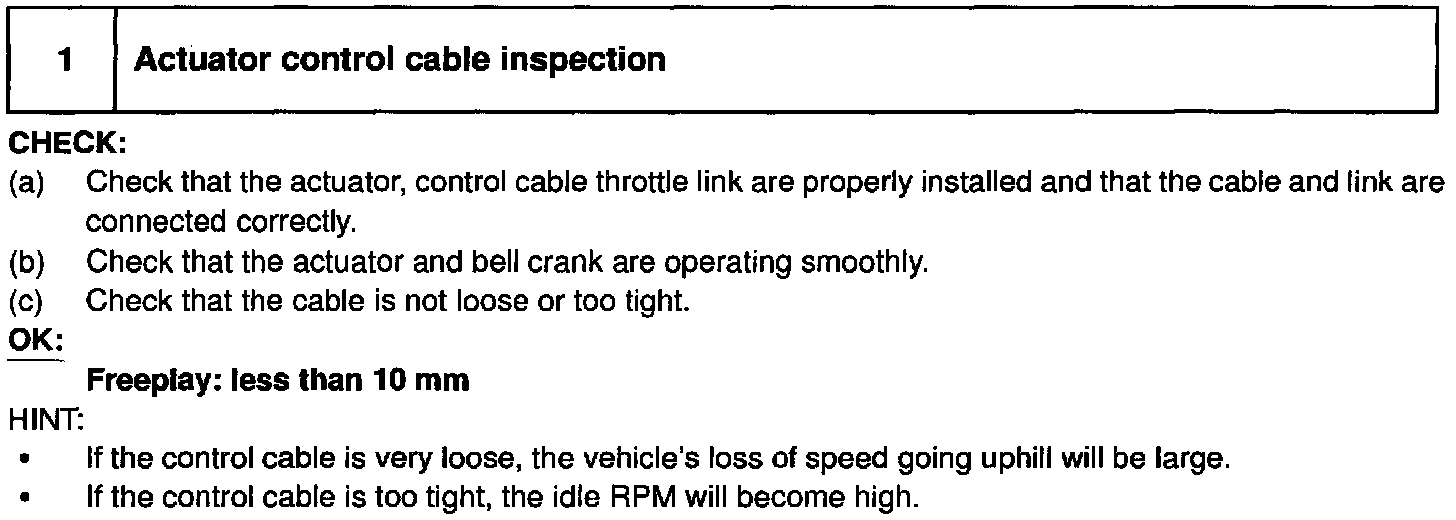

Actuator Control Cable

INSPECTION PROCEDURE

CHECK:
(a) Check that the actuator, control cable throttle link are properly installed and that the cable and link are connected correctly.
(b) Check that the actuator and bell crank are operating smoothly.
(c) Check that the cable is not loose or too tight.

OK:
Freeplay: less than 10 mm

HINT:
- If the control cable is very loose, the vehicle's loss of speed going uphill will be large.
If the control cable is too tight, the idle RPM will become high.
