Front

INSPECTION

Front Brake Pad Lining Thickness Inspection:

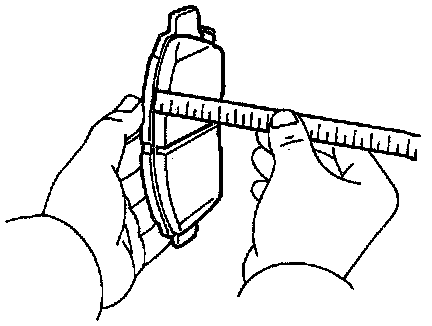

1. Measure pad lining thickness.
Using a ruler, measure the pad lining thickness.
Standard thickness: 11.0 mm (0.433 inch)
Minimum thickness: 1.0 mm (0.039 inch)
Replace the pad if the pad's thickness is at the minimum thickness or less, or if the pad has severe, uneven wear.
