Tc Terminal Circuit

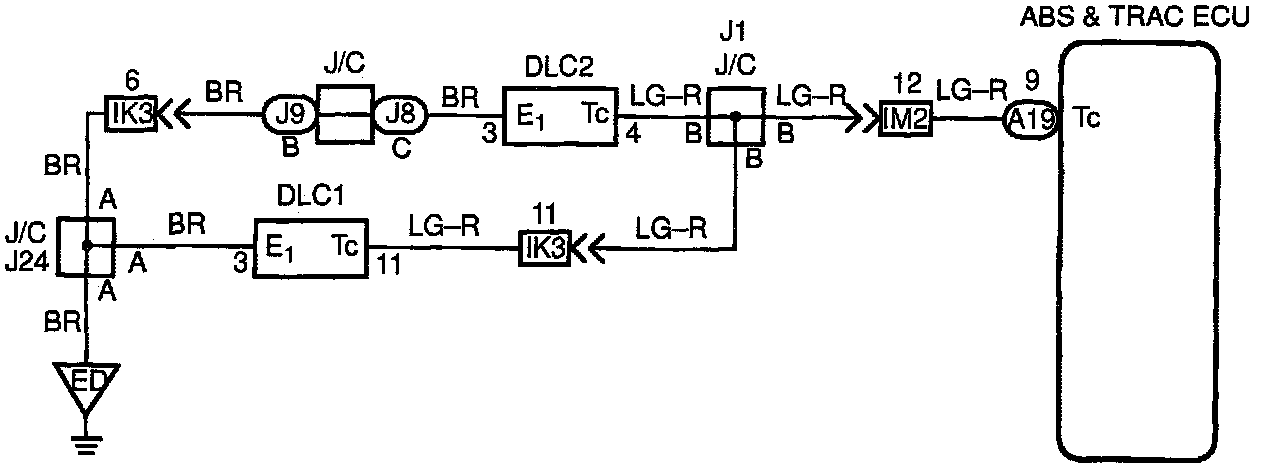

Tc Terminal Circuit Wiring Diagram:

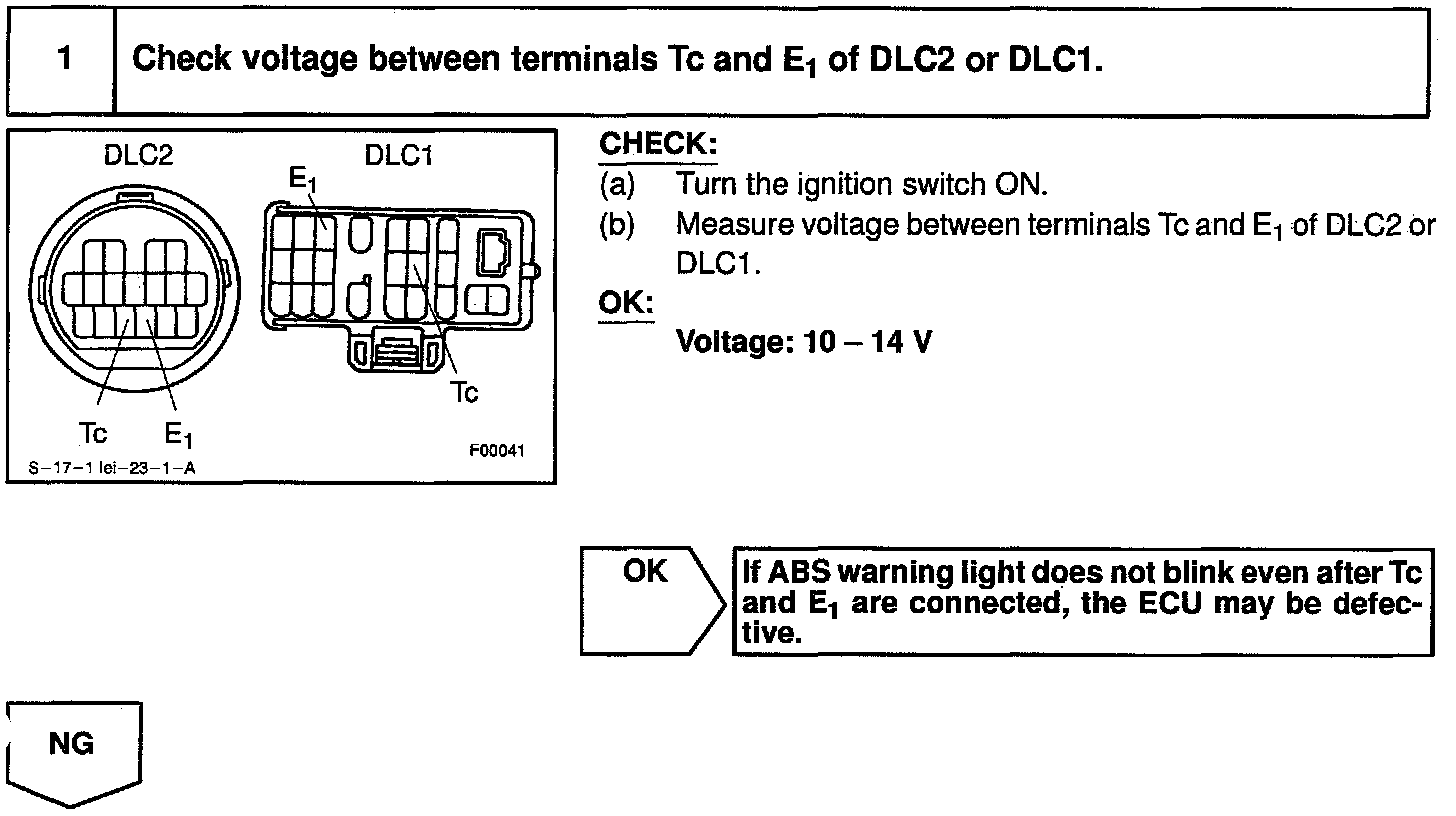

Tc Terminal Circuit Inspection Procedure Part 1 Of 2:

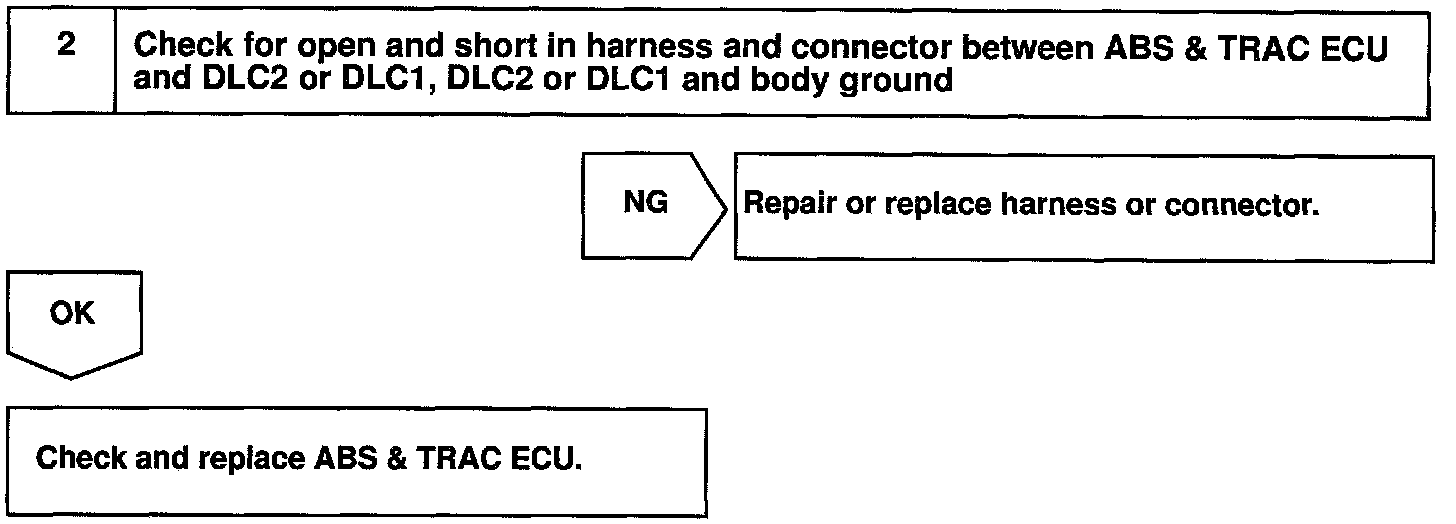

Tc Terminal Circuit Inspection Procedure Part 2 Of 2:






CIRCUIT DESCRIPTION
Connecting between terminals Tc and E1 of the DLC1 or the DLC2 causes the ECU to display the DTC by blinking the ABS Warning Light and TRAC OFF indicator light.
