TRAC Off Indicator Malfunction

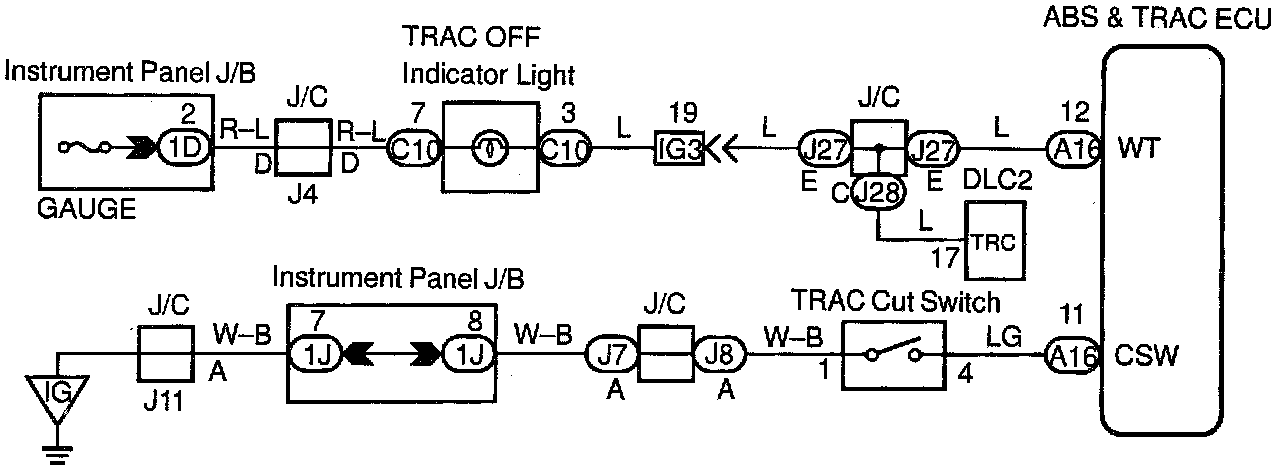

TRAC OFF Indicator, TRAC Cut Switch Circuit Wiring Diagram:

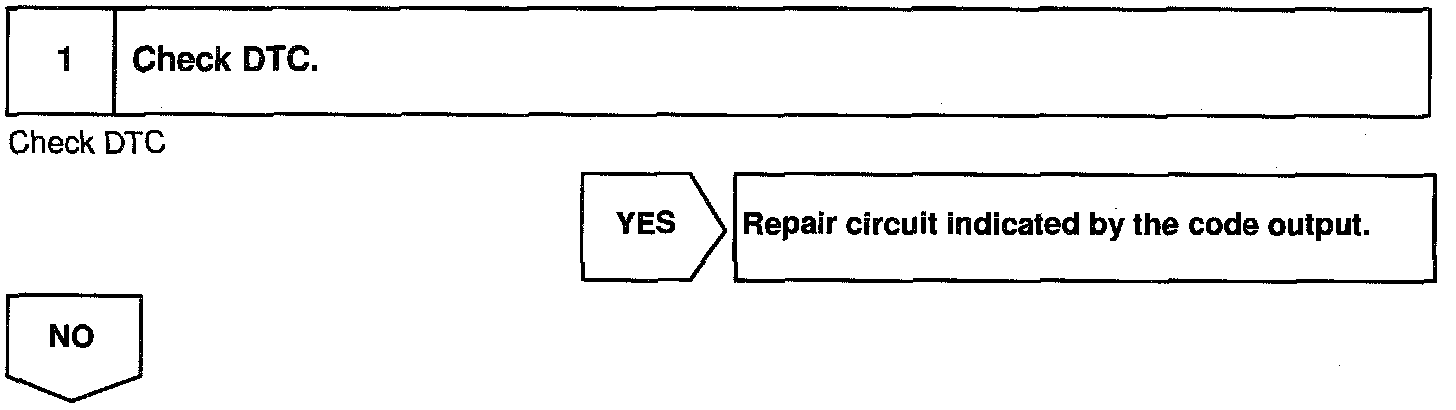

TRAC OFF Indicator, TRAC Cut Switch Circuit Inspection Procedure Part 1 Of 3:

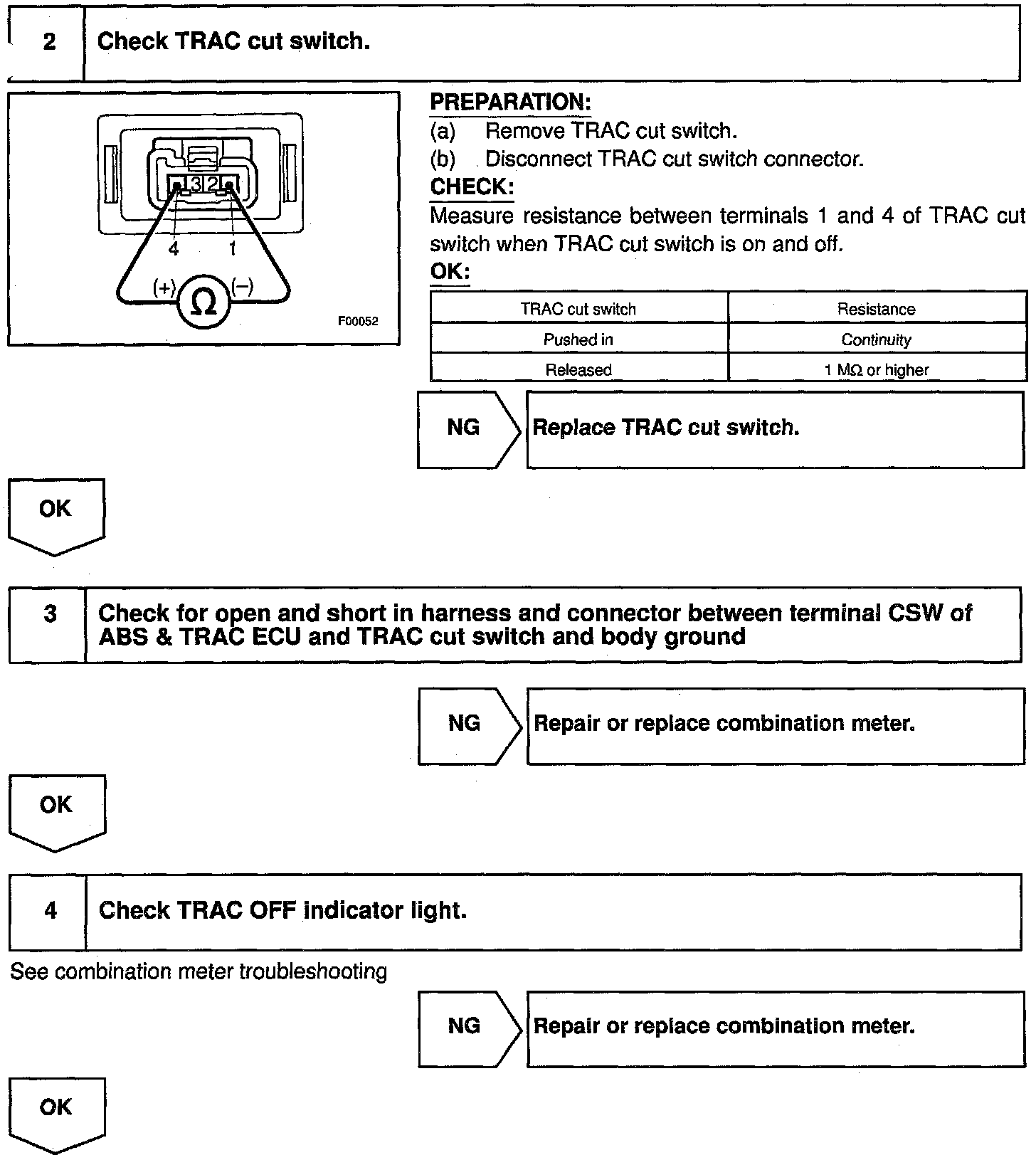

TRAC OFF Indicator, TRAC Cut Switch Circuit Inspection Procedure Part 2 Of 3:

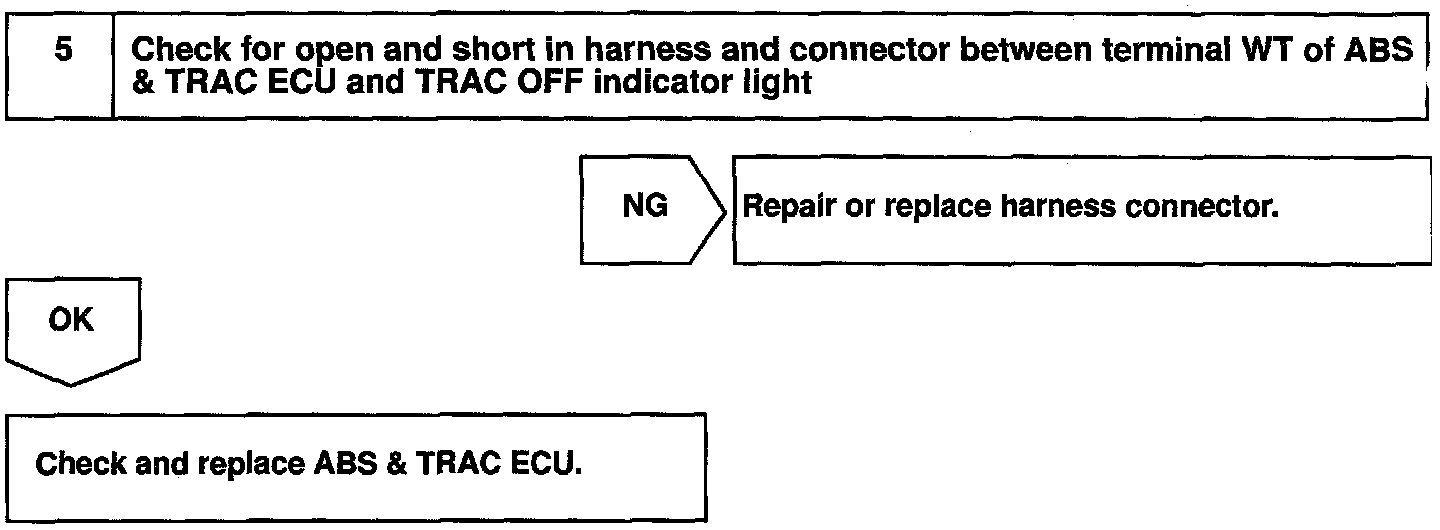

TRAC OFF Indicator, TRAC Cut Switch Circuit Inspection Procedure Part 3 Of 3:

CIRCUIT DESCRIPTION
This is the Traction Control System (TRAC) main switch. When the TRAC cut switch is pushed on. TRAC control goes OFF and the "TRAC OFF" indicator lights up. This indicator blinks for warnings when the trouble occurs and for displaying Diagnostic Trouble Codes (DTC).
