Slip Indicator Light Circuit

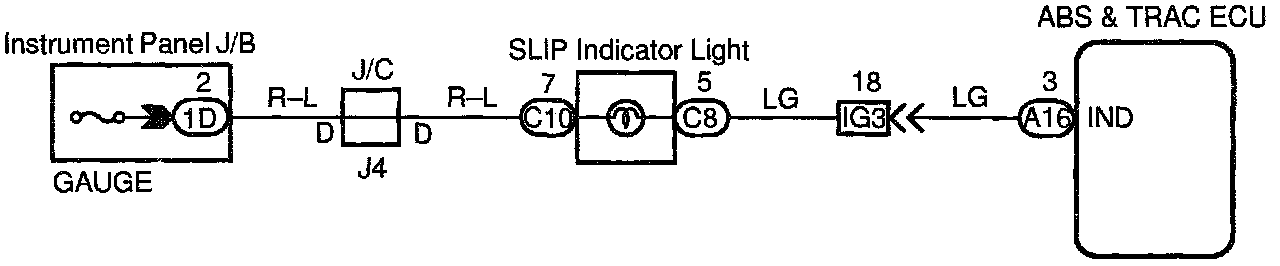

SLIP Indicator Light Circuit Wiring Diagram:

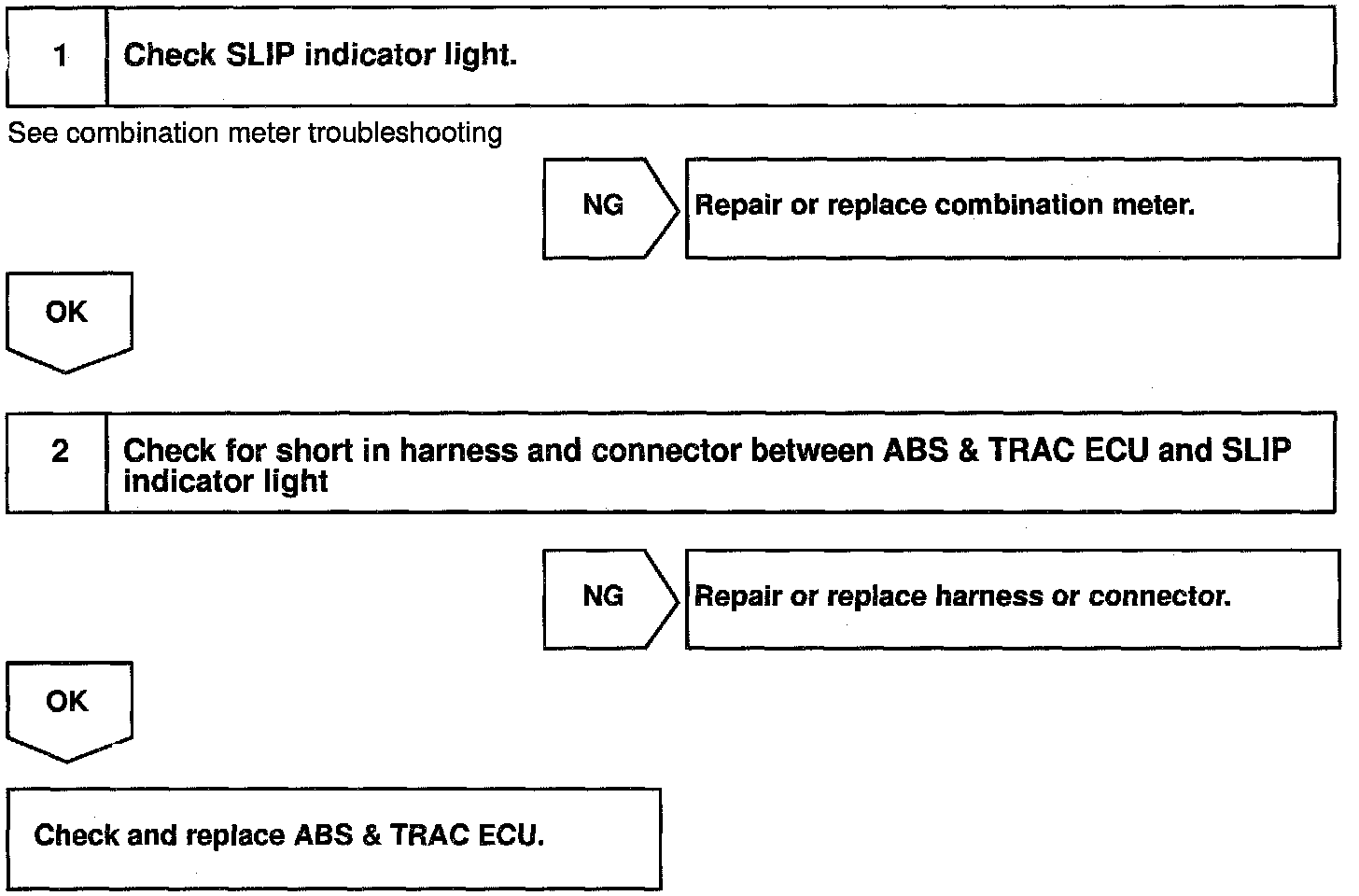

SLIP Indicator Light Circuit Inspection Procedure Part 1 Of 1:






CIRCUIT DESCRIPTION
The "SLIP" indicator light blinks during Traction Control System (TRAC) operation.
