Seat Memory Switch


CIRCUIT DESCRIPTION
Seat memory switch send memory and return signals to the seat position control ECU.

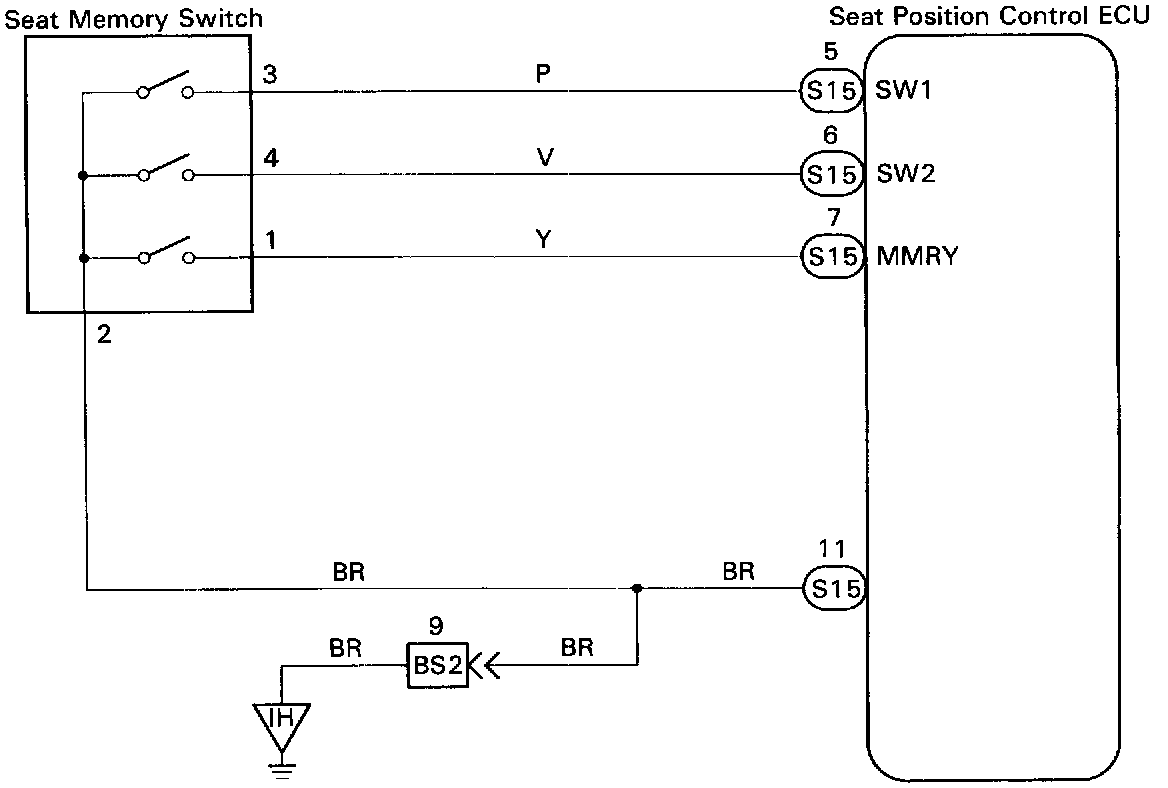

WIRING DIAGRAM

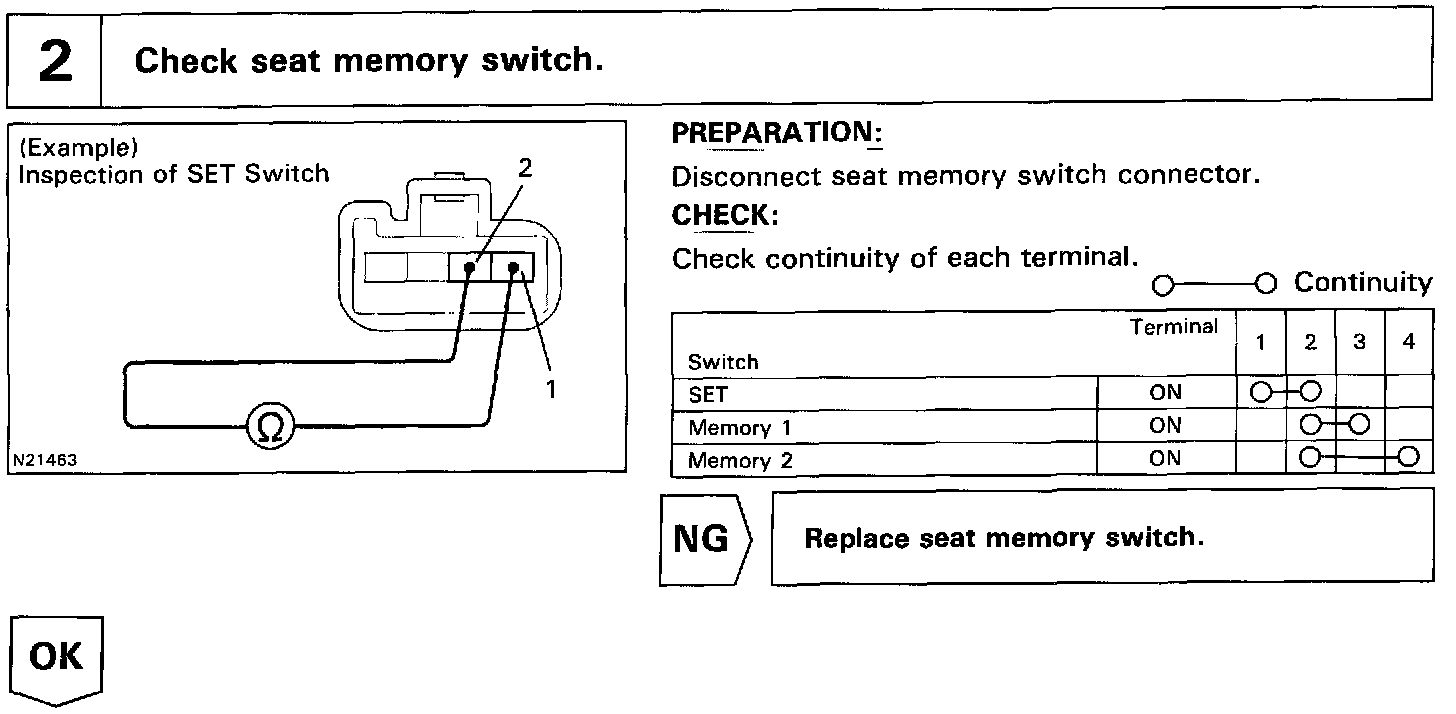

INSPECTION PROCEDURE
