Sunroof / Moonroof Motor: Testing and Inspection

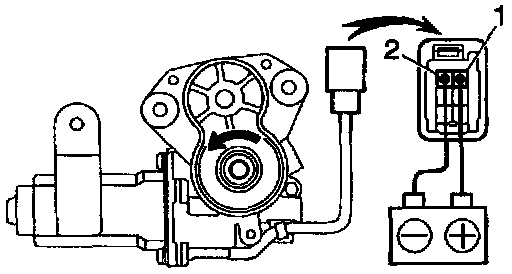

- INSPECT SLIDING ROOF MOTOR OPERATION




a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns counterclockwise (moves of the close and up side).




b. Reverse the polarity, check that the motor turns clockwise. (moves to the open and down side).
If operation is not as specified, replace the motor.
