Power Door Lock Actuator: Testing and Inspection

- INSPECT MOTOR OPERATION

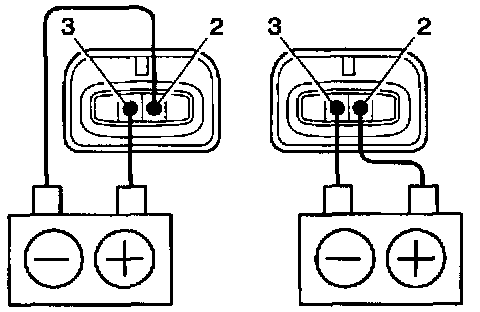

a. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.
b. Reverse the polarity and check that the door lock link moves to LOCK position.
If operation is not as specified, replace the door lock assembly.
