Door Lock Control
Door Lock Control

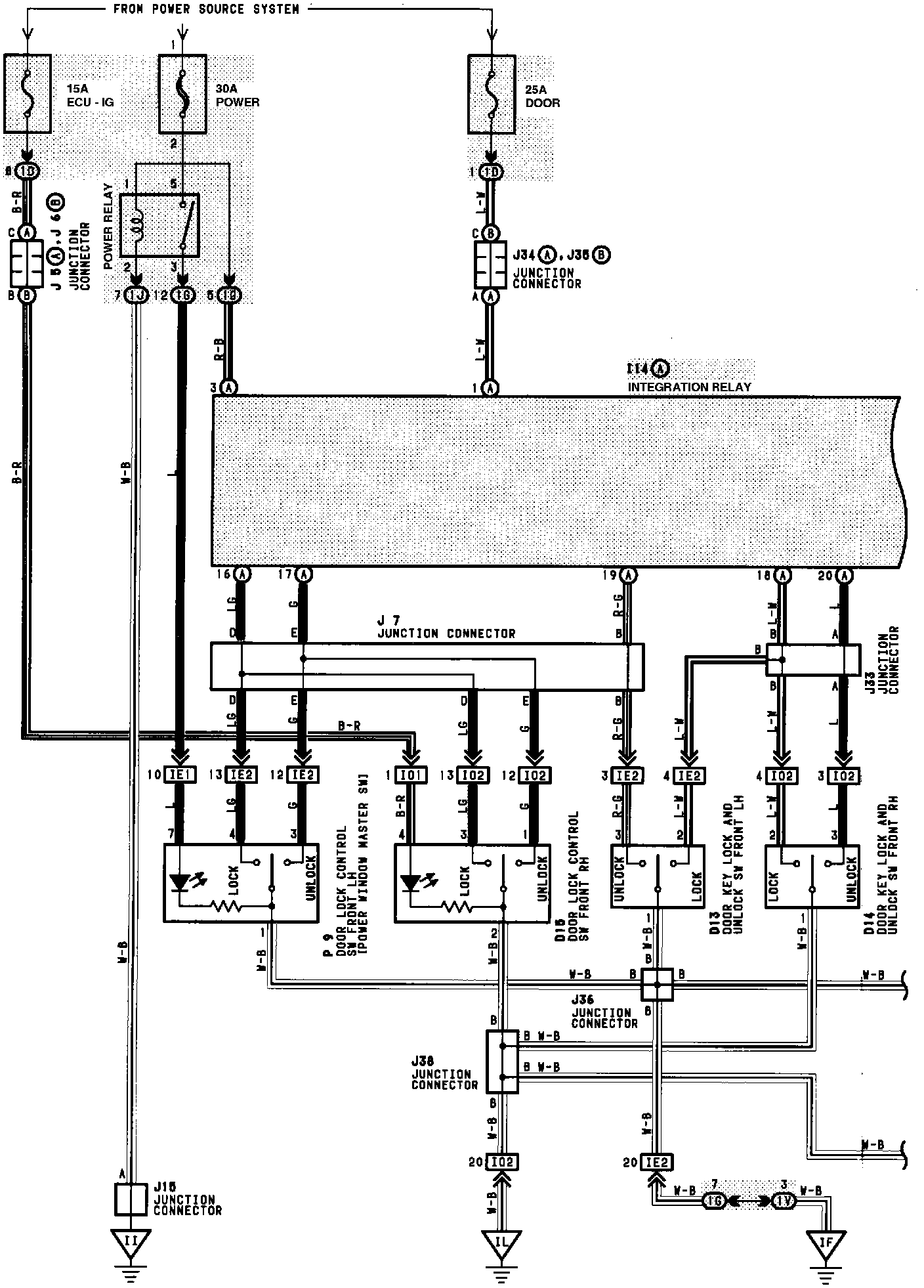

Door Lock Control (Part 1 Of 4):

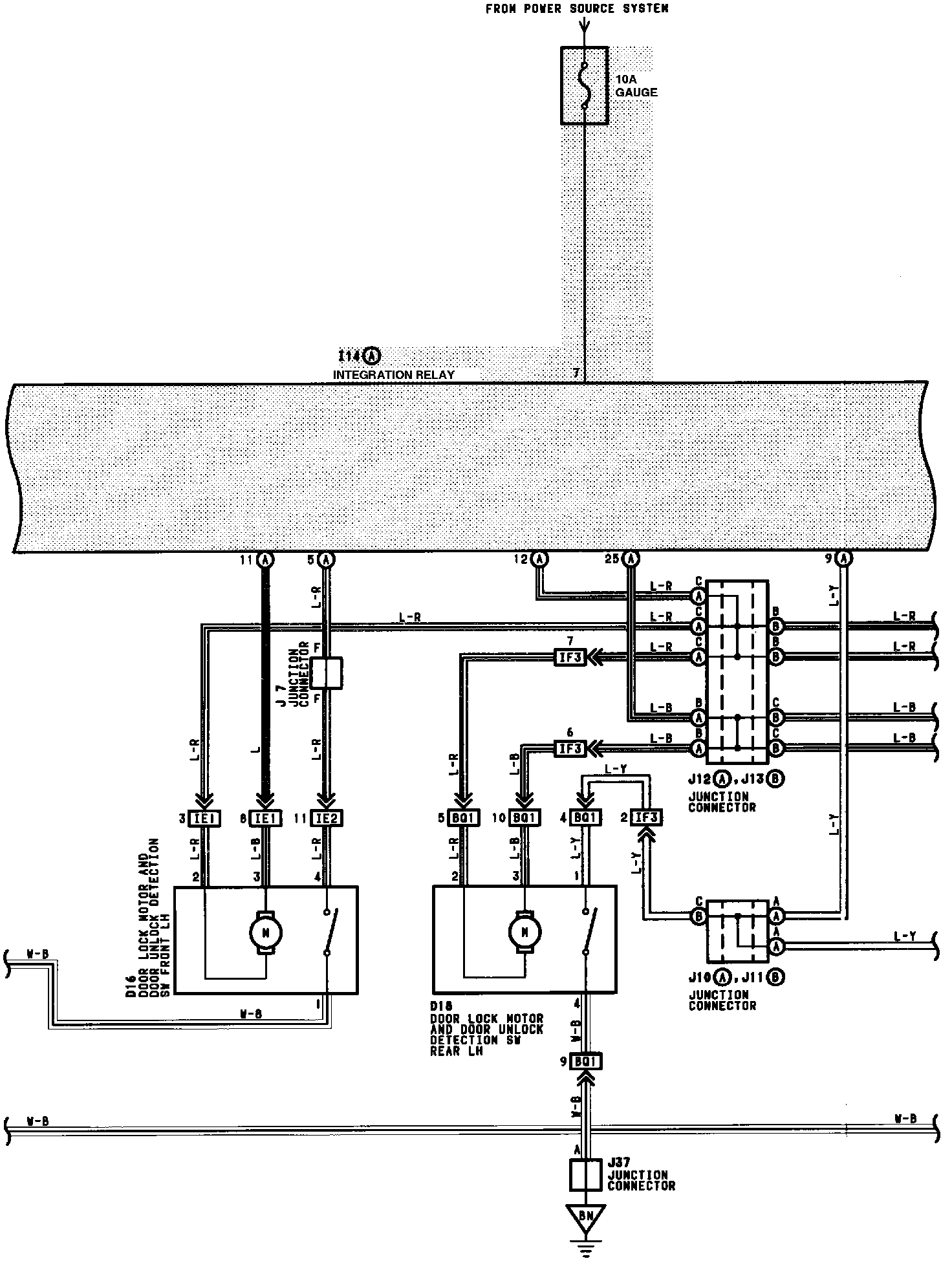

Door Lock Control (Part 2 Of 4):

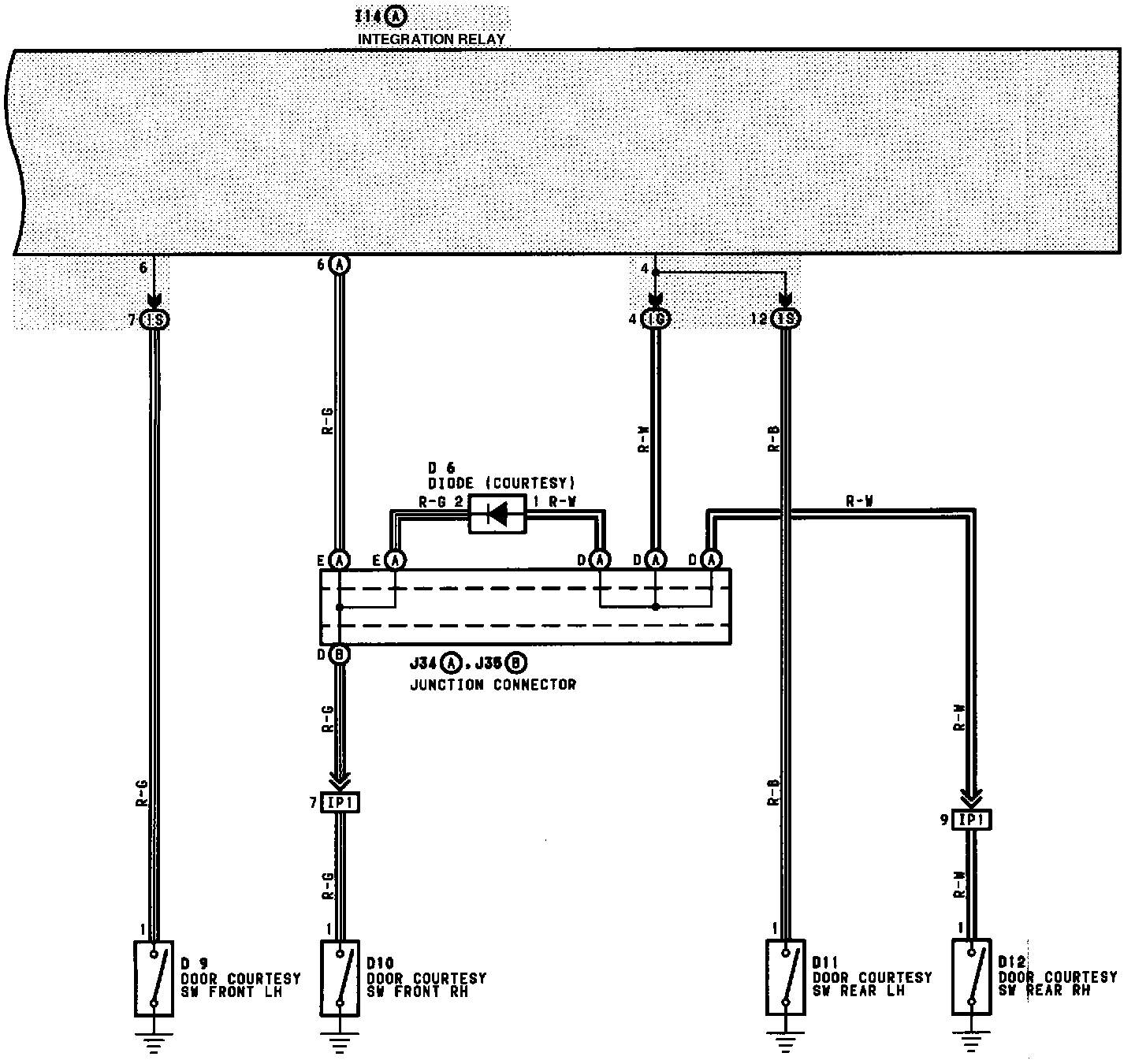

Door Lock Control (Part 3 Of 4):

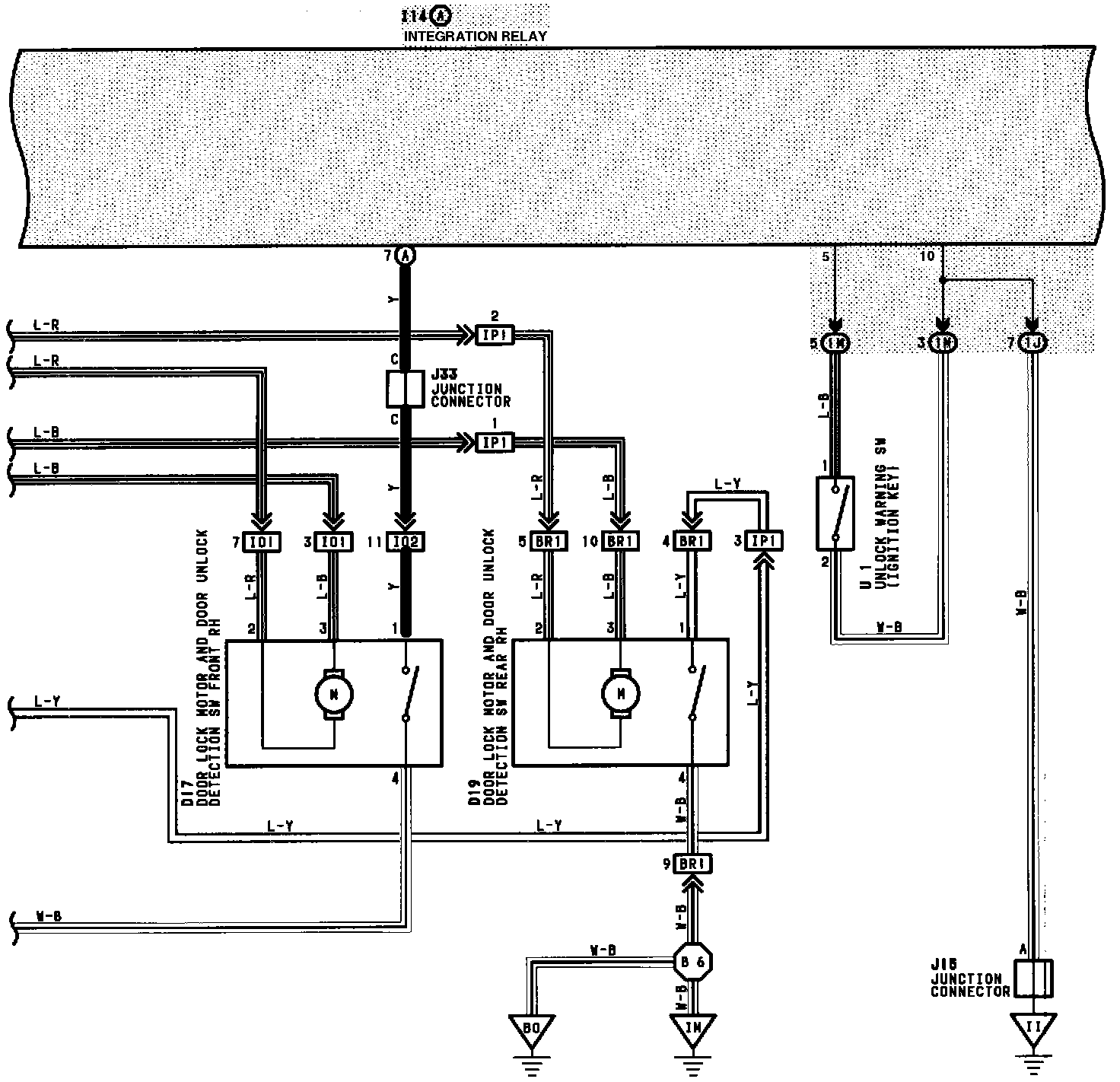

Door Lock Control (Part 4 Of 4):
