Disassembly and Reassembly

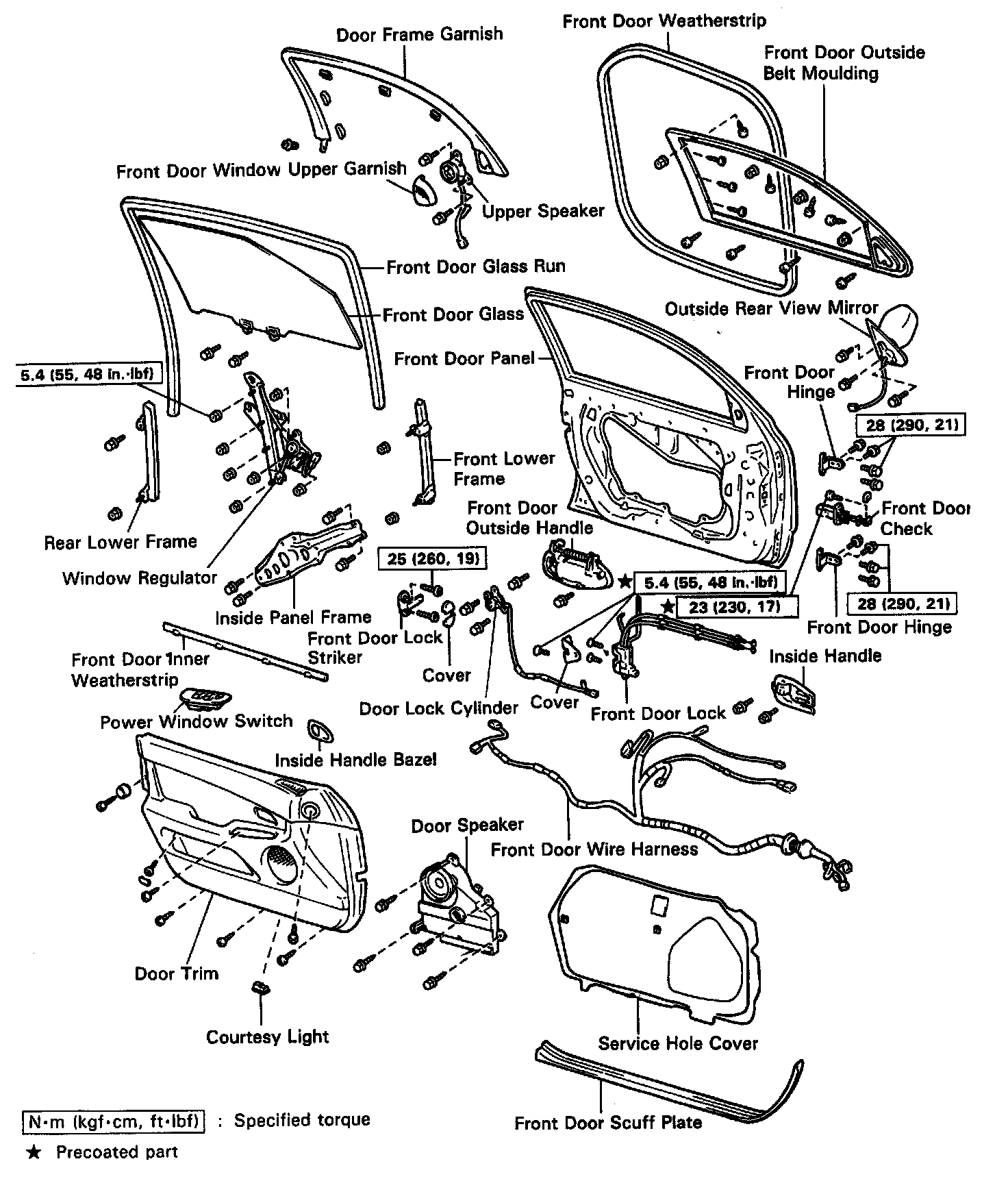

FRONT DOOR COMPONENTS

FRONT DOOR DISASSEMBLY





1. REMOVE DOOR INSIDE HANDLE BEZEL
(a) Using a screwdriver, pry out the bezel.
(b) Pull the bezel backward and remove it.

HINT: Tape the screwdriver, tip before use.





2. REMOVE DOOR TRIM
(a) Remove the cap and screw.
(b) Remove the 2 cap and clips.
(c) Remove the cap and screw.
(d) Insert a screwdriver between the panel and door trim and remove the 4 clips.
(e) Pull the trim upwards to remove it.

Reassembly is in the reverse.
