Home >> Lexus >> 1997 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Tape Player >> Chart 14-JAMMED: MALFUNCTION WITH TAPE SPEED OR AUTO-REVERSE

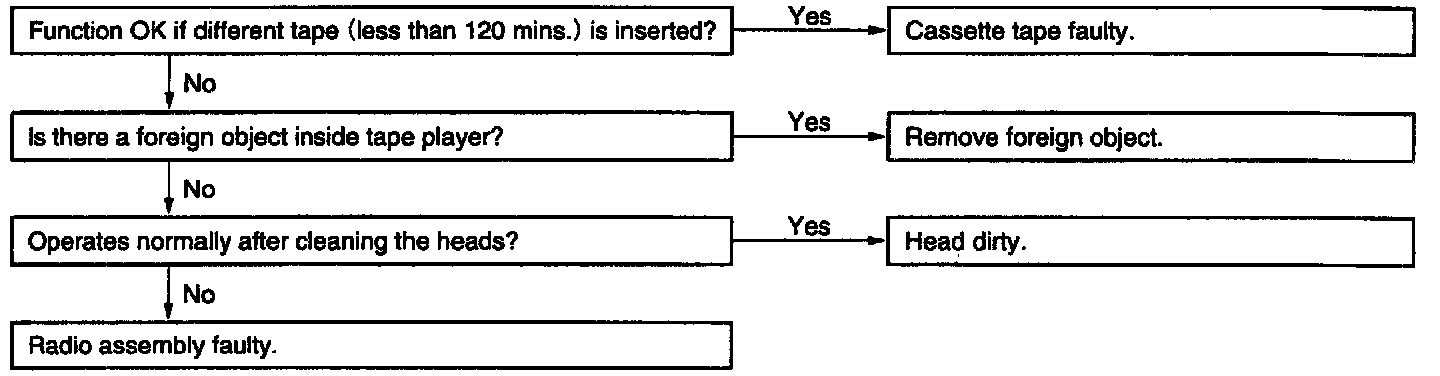

Chart 14-JAMMED: MALFUNCTION WITH TAPE SPEED OR AUTO-REVERSE
