Amplifier: Testing and Inspection

- INSPECT POWER AMPLIFIER CIRCUIT

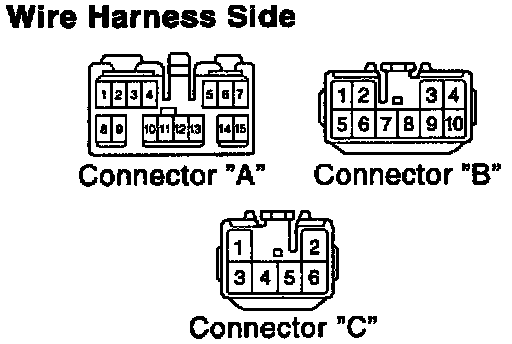

Disconnect the connector from power amplifier and inspect the connector on the wire harness side, as shown.

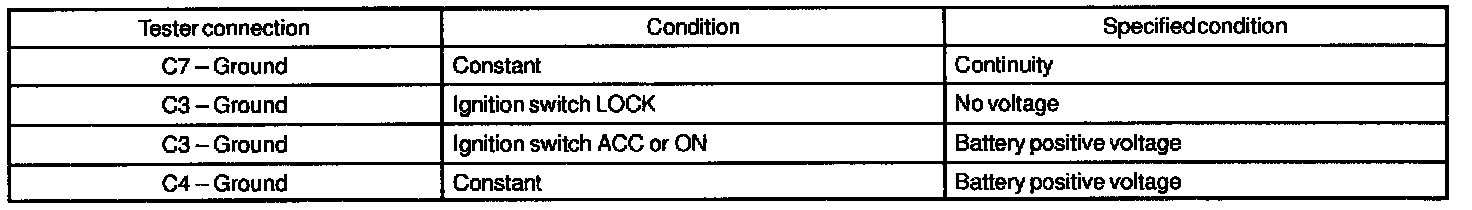

If the circuit is not as specified, inspect the circuits connected to other parts.
