Luggage Compartment Door Switch Circuit

Luggage Compartment Door Opener Main Switch and Opener Switch Circuit

CIRCUIT DESCRIPTION
The luggage compartment door opener main switch is off when it is pushed in, and the luggage compartment door opener switch is on when it is pulled.
The ECU energizes the luggage compartment door opener solenoid only when the main switch and opener switch are together.

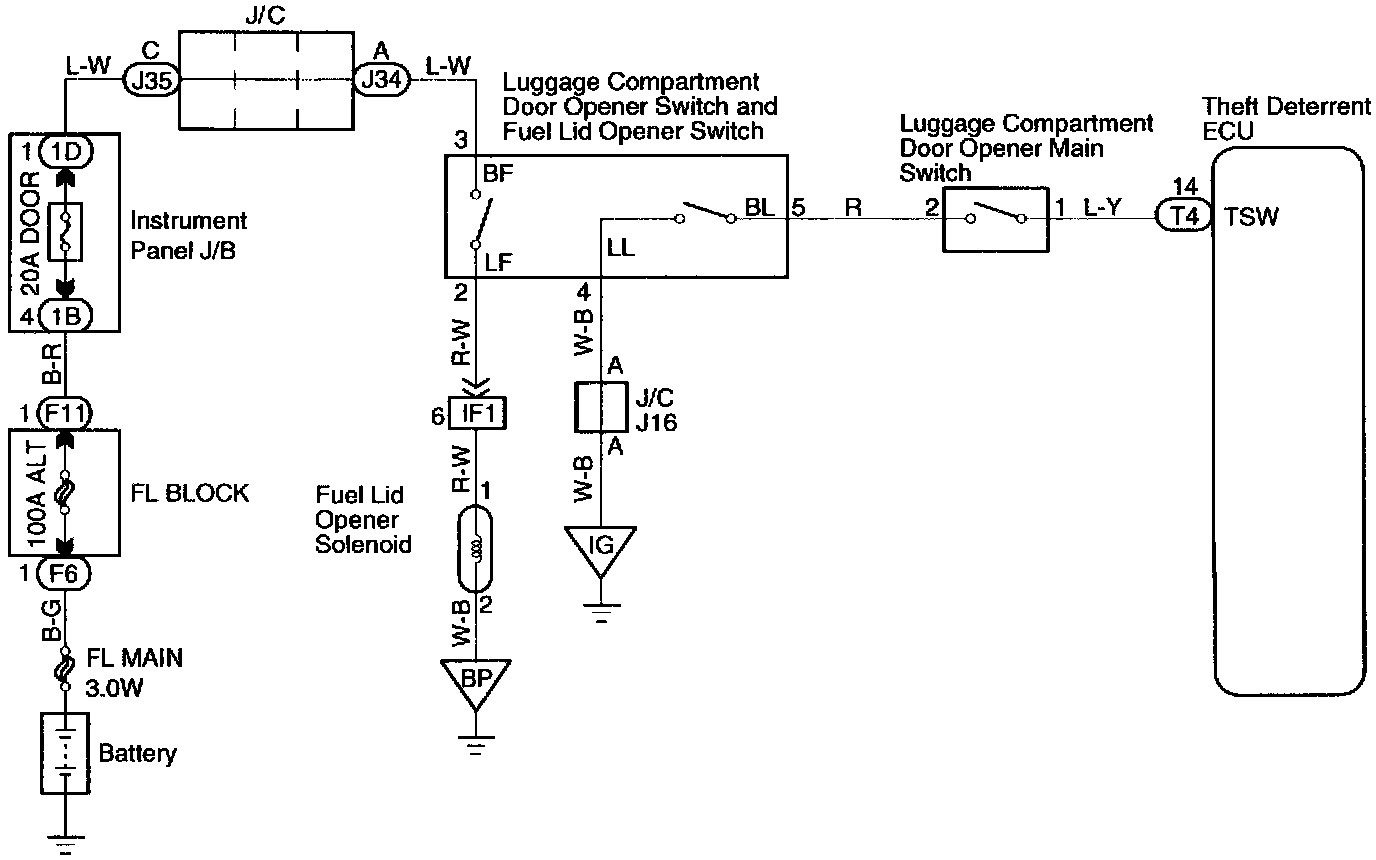

WIRING DIAGRAM

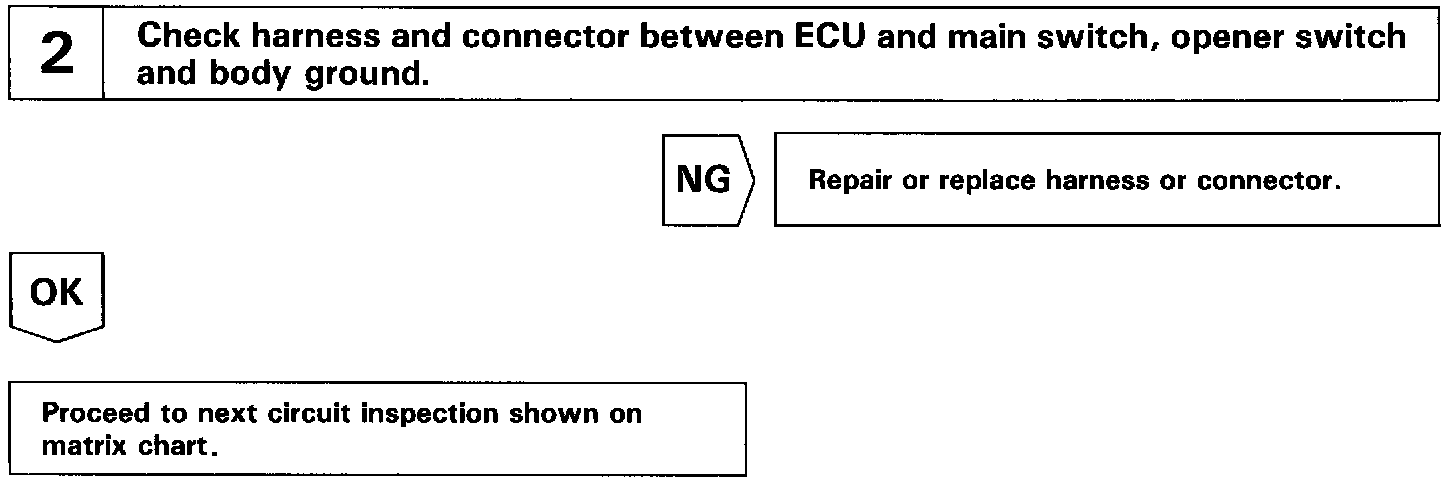

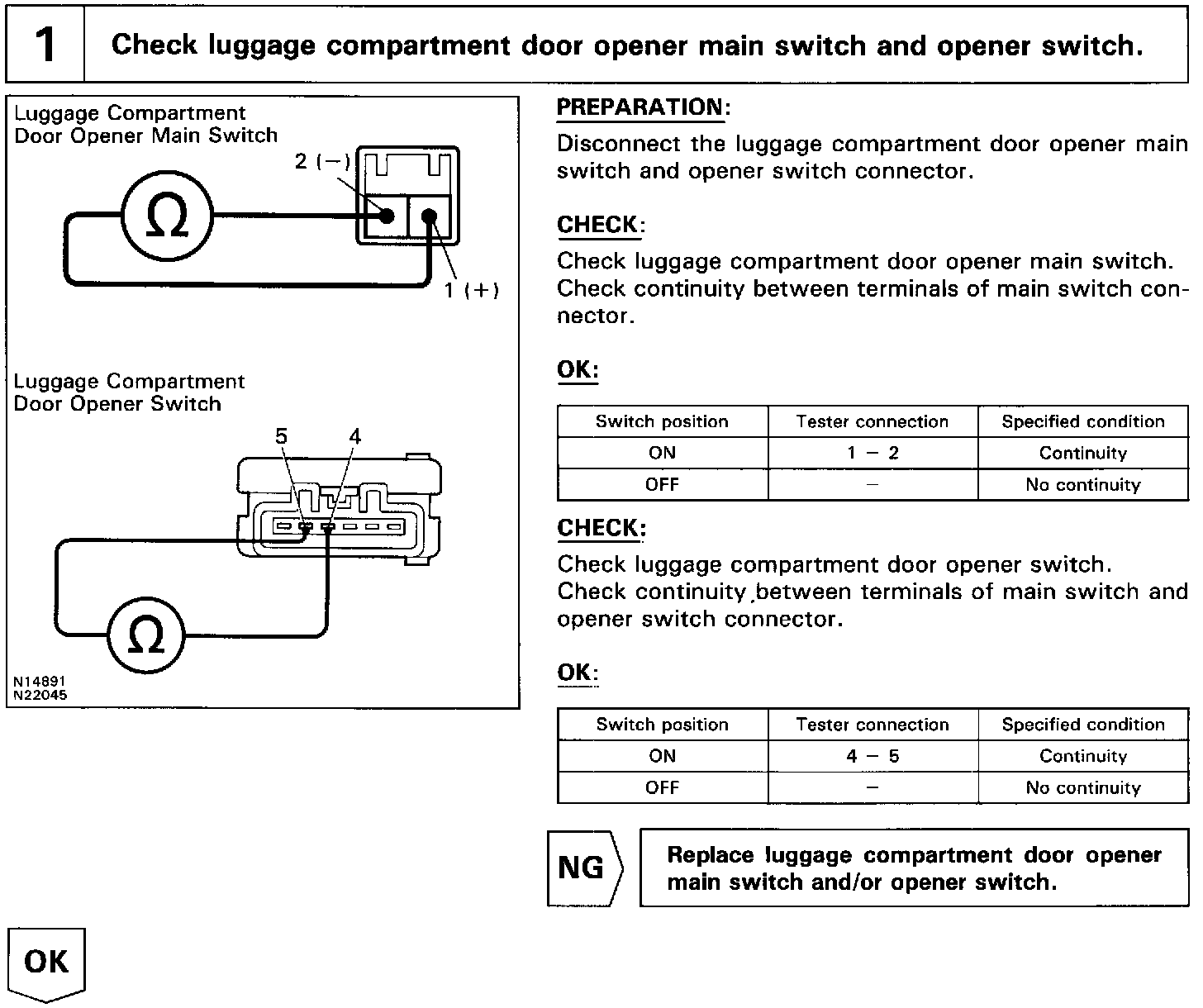

INSPECTION PROCEDURE
