Luggage Compartment Door Opener Motor Circuit


CIRCUIT DESCRIPTION
This circuit unlocks the luggage compartment door when the ECU sends signals to the luggage compartment door opener motor.

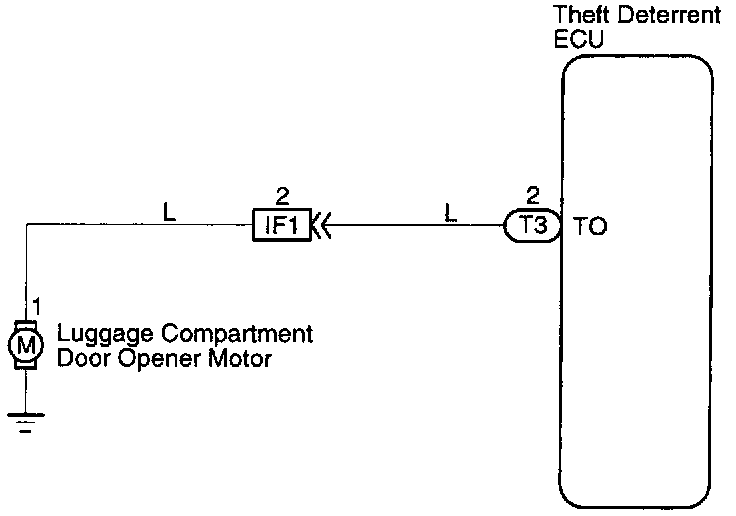

WIRING DIAGRAM

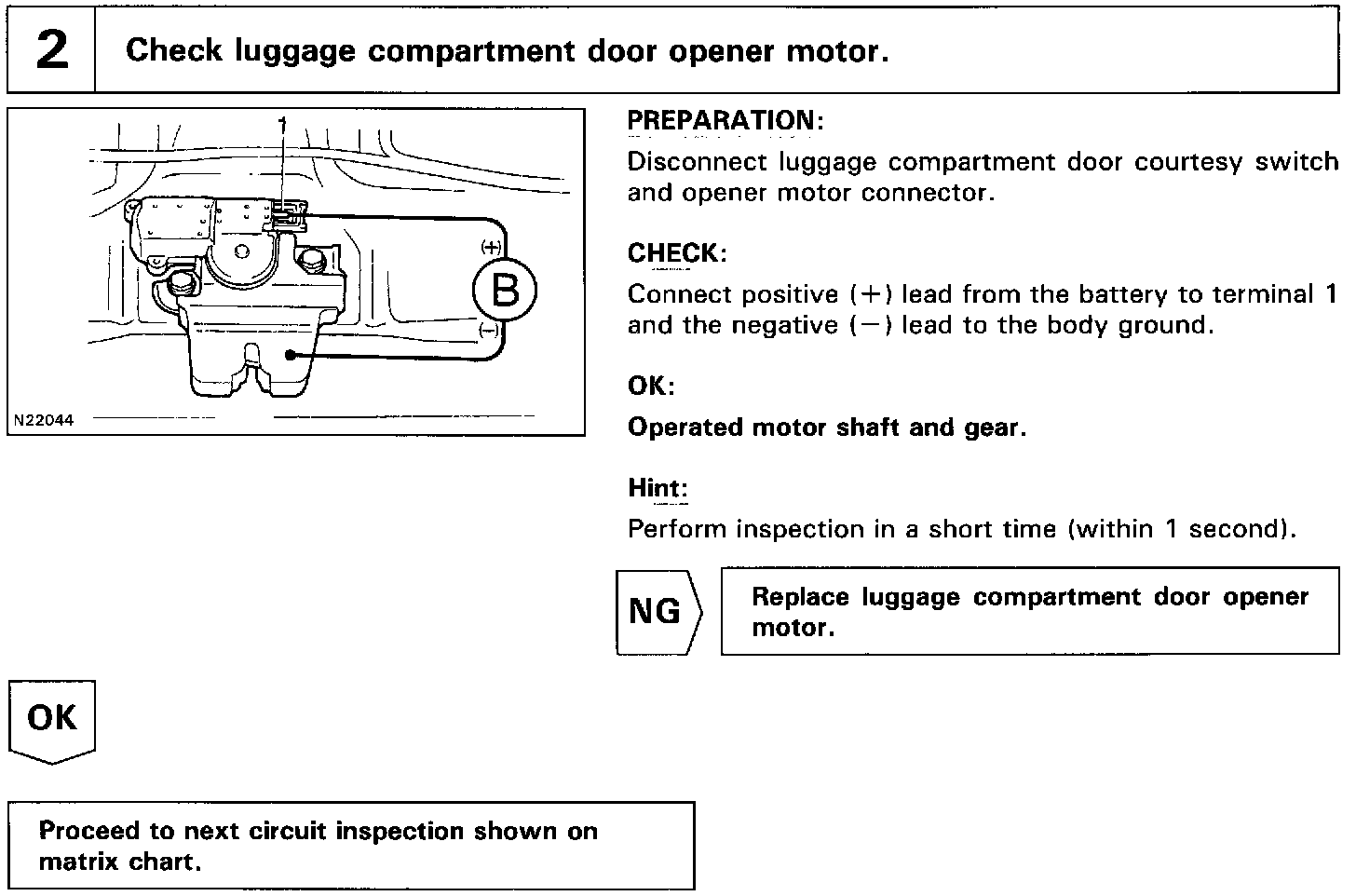

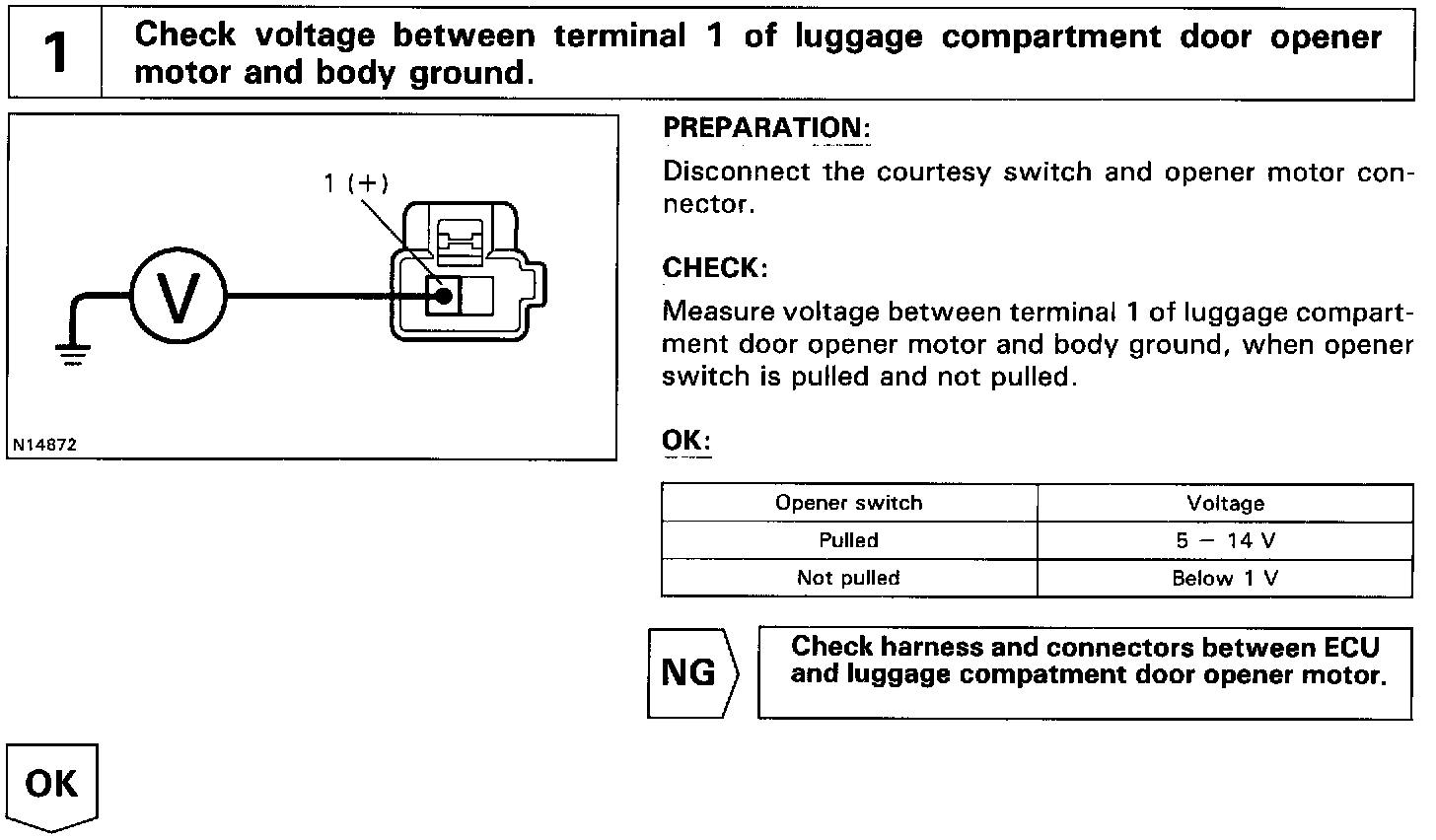

INSPECTION PROCEDURE
