ECU Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the theft deterrent ECU.

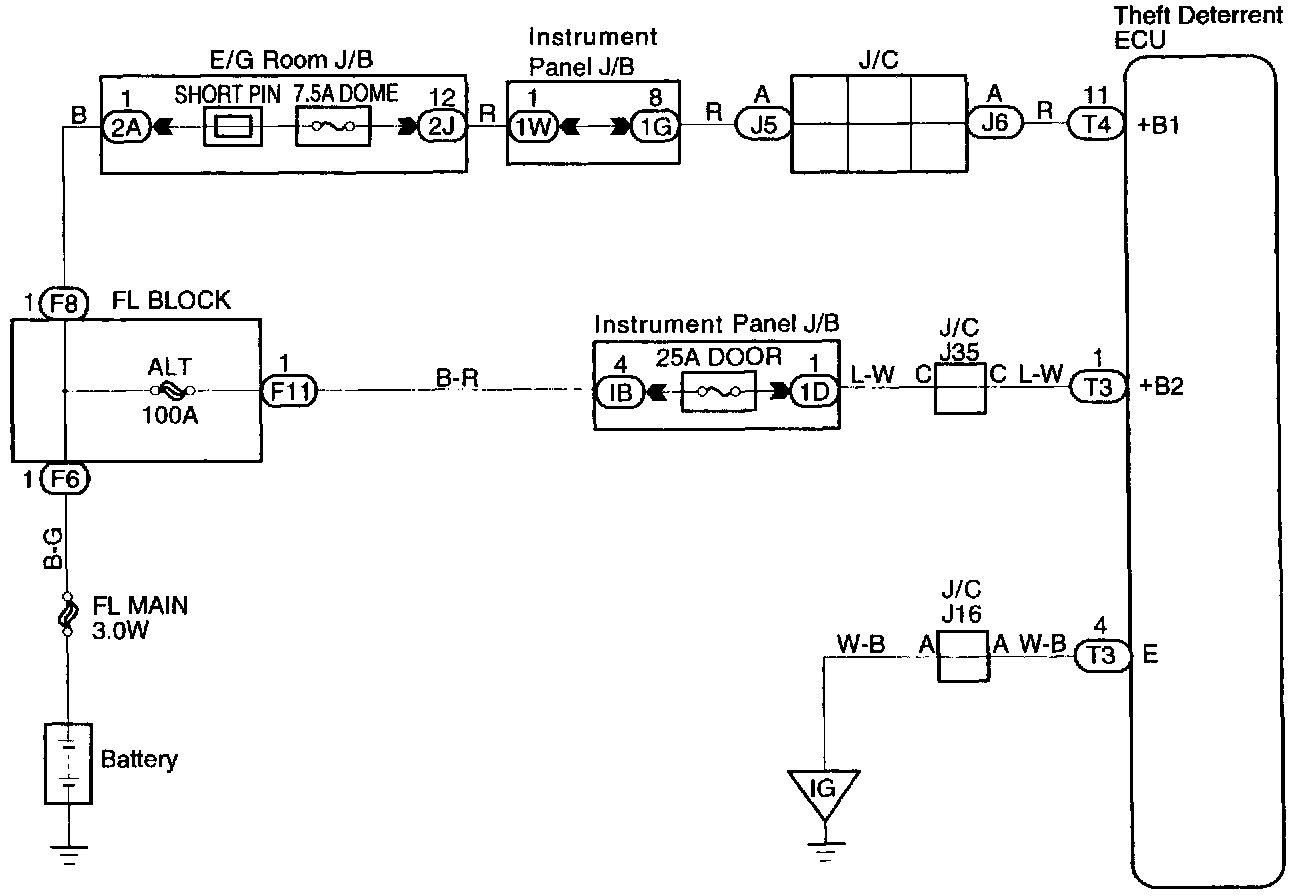

WIRING DIAGRAM

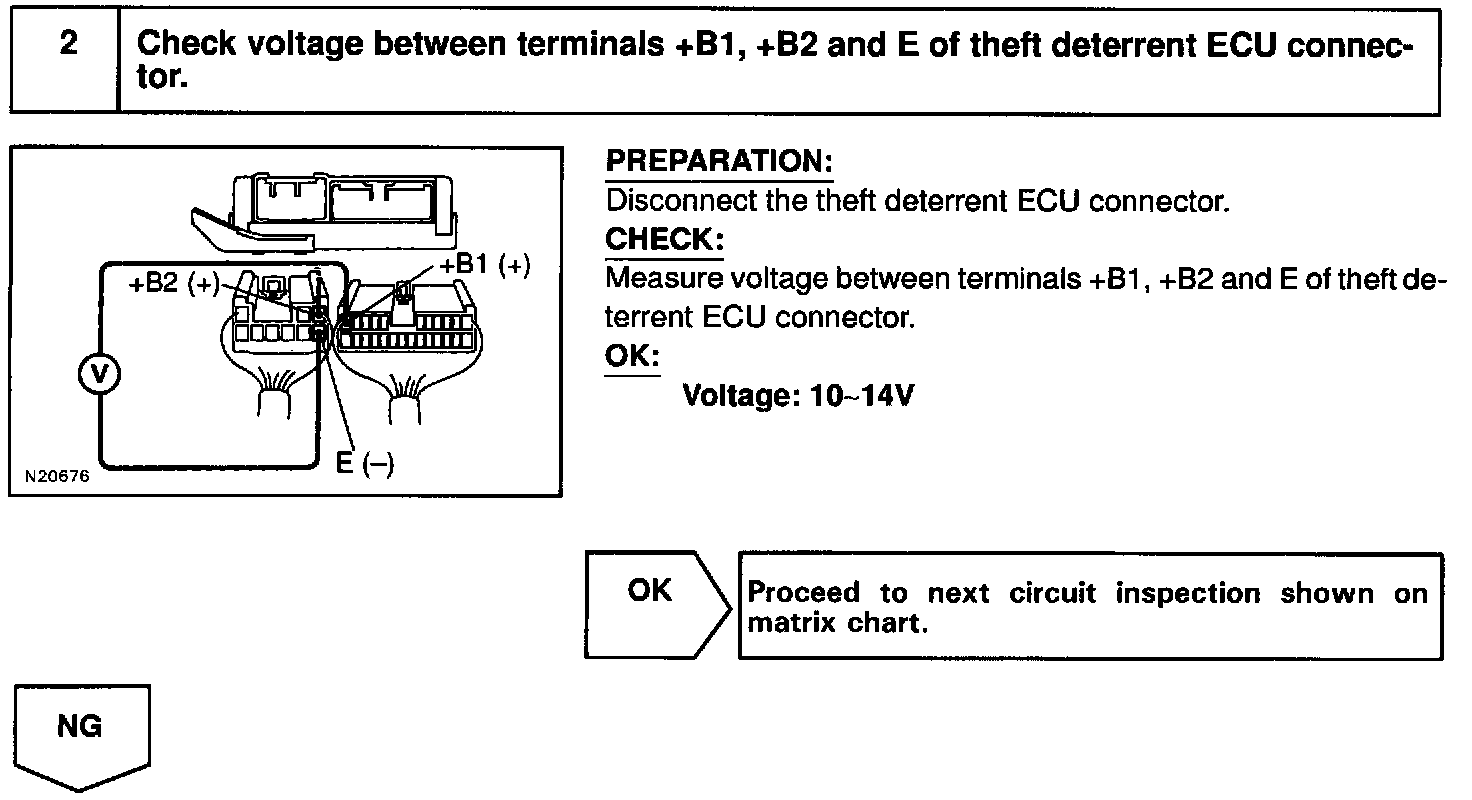

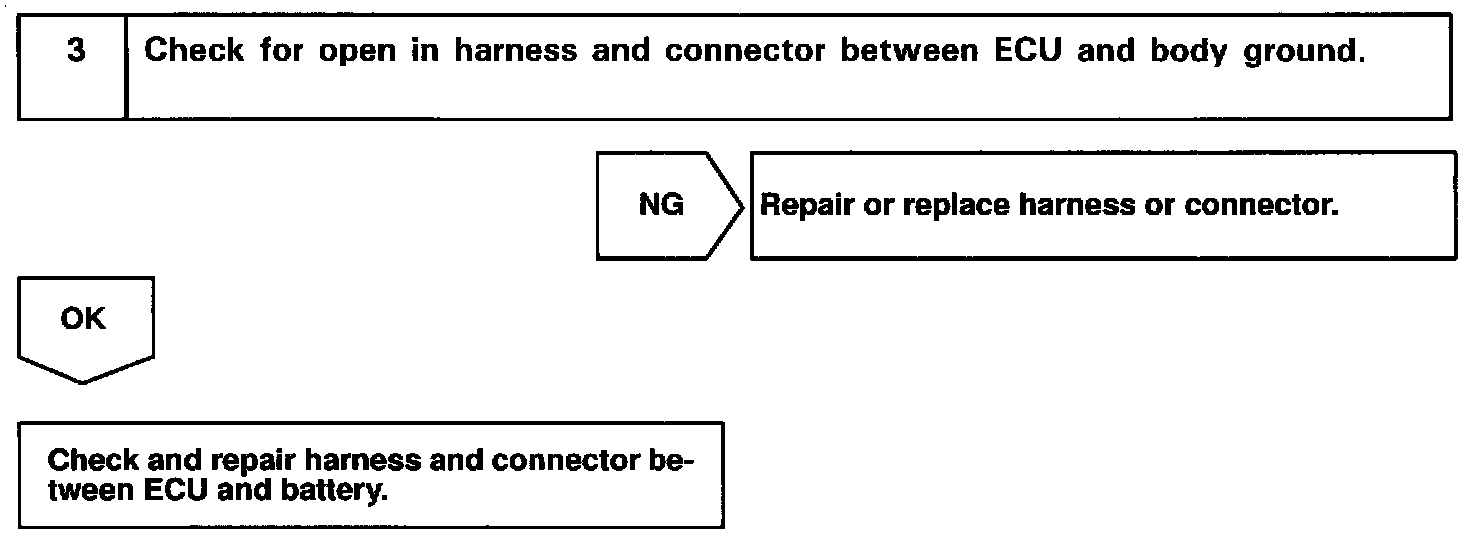

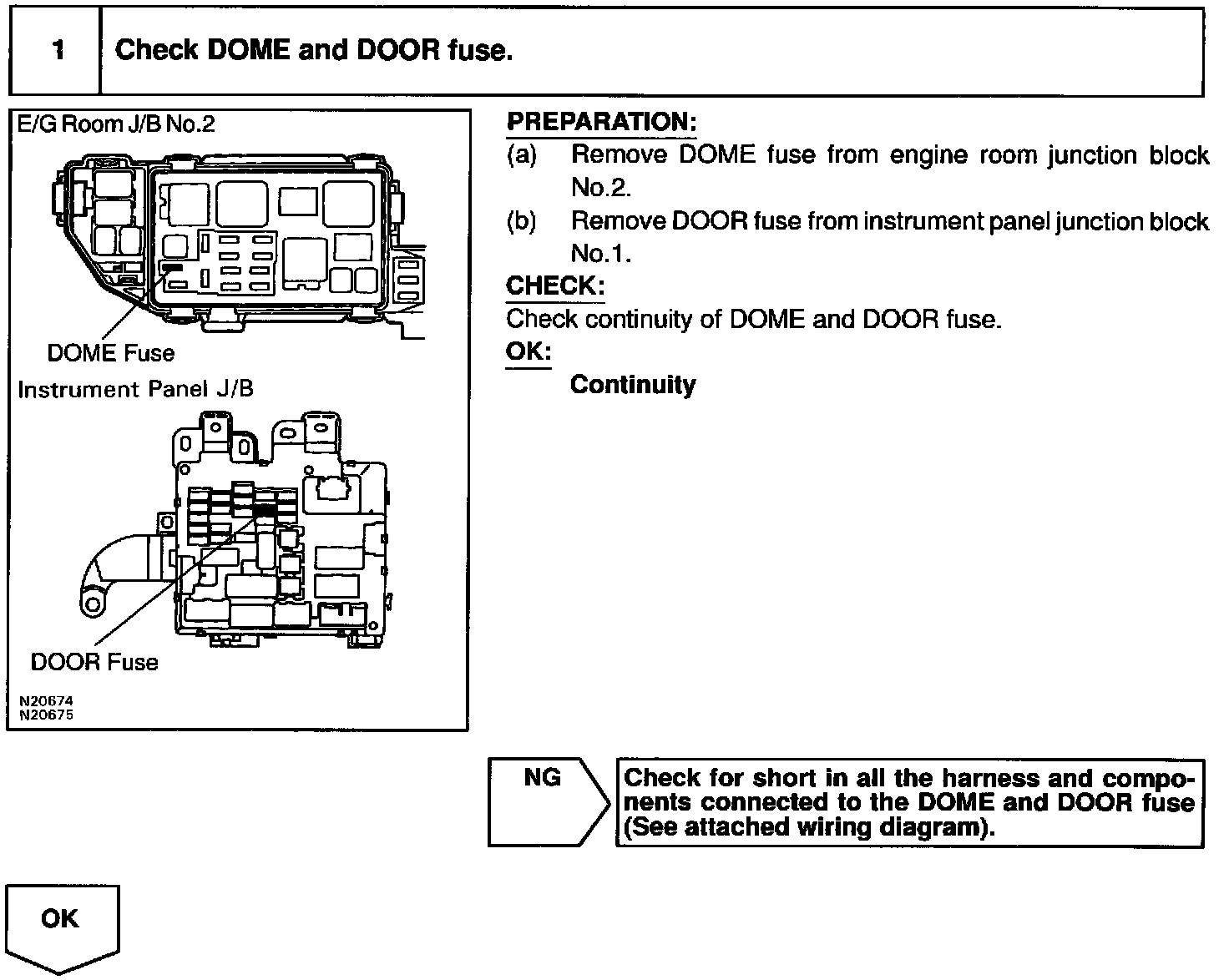

INSPECTION PROCEDURE
