ECU Power Source Circuit

CIRCUIT DESCRIPTION
Battery positive voltage is always applied to terminal +B of the wireless door lock ECU.

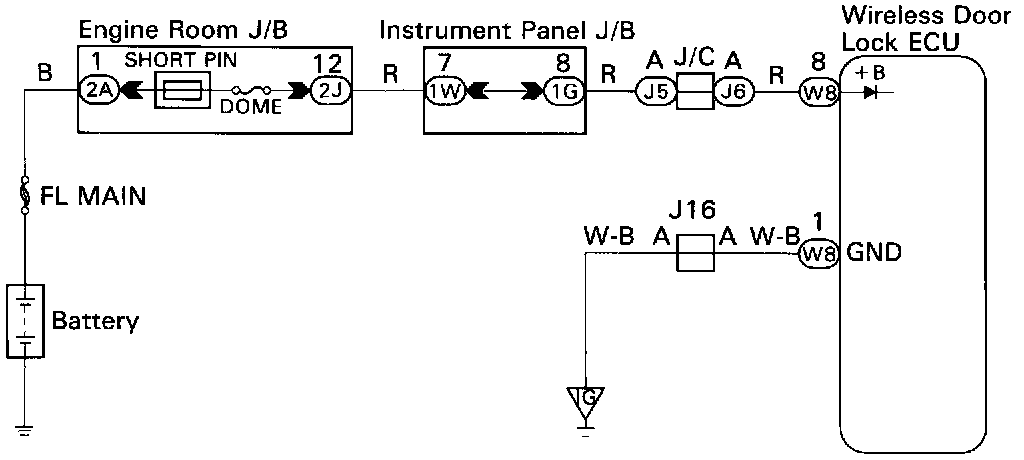

WIRING DIAGRAM

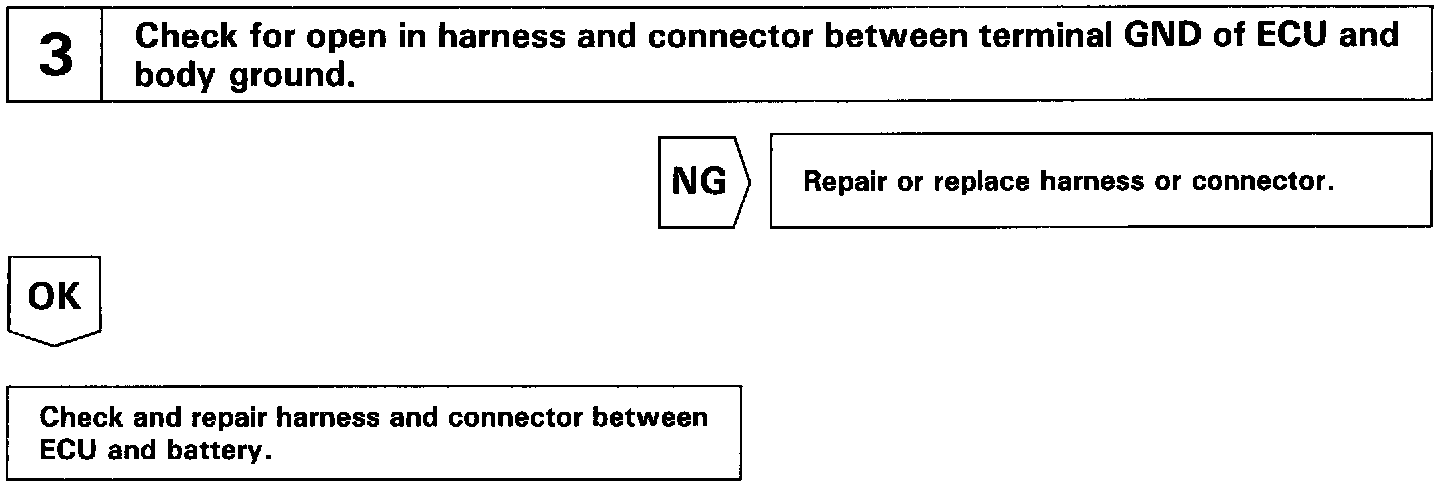

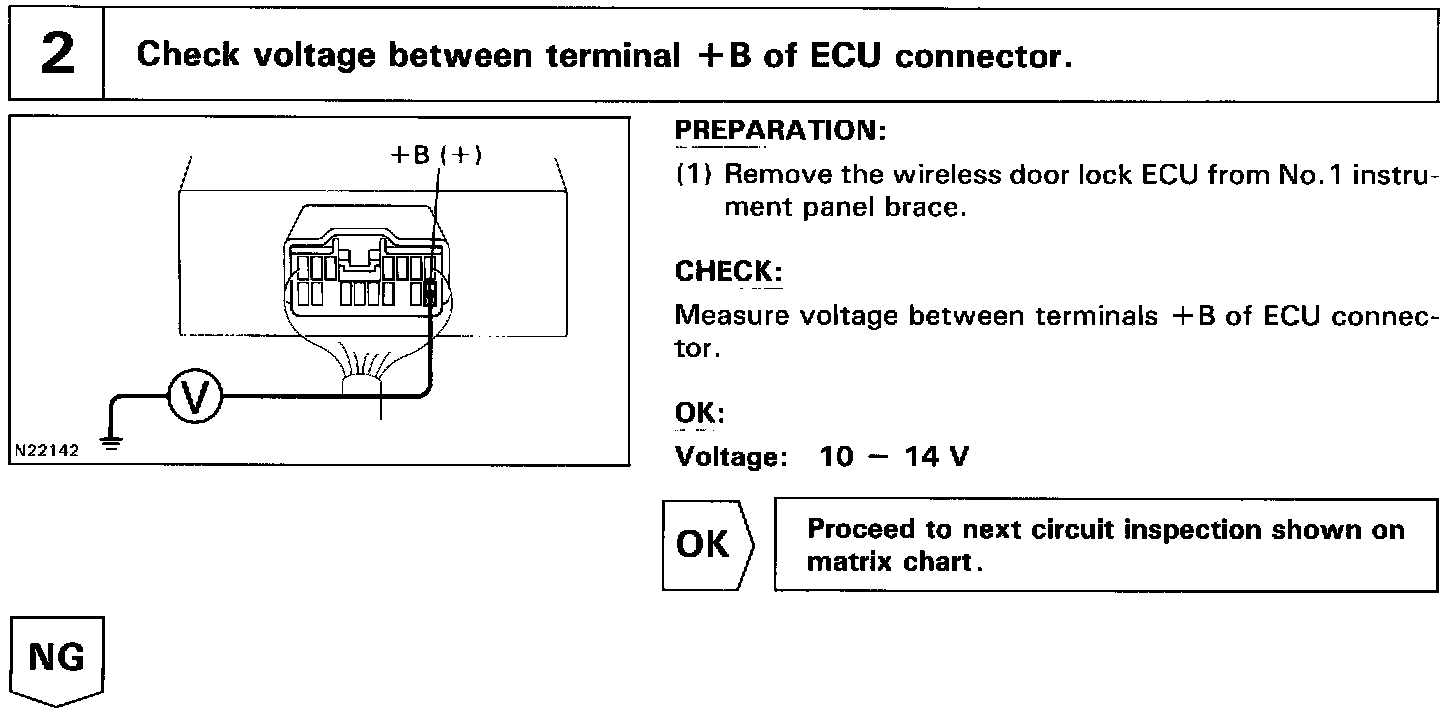

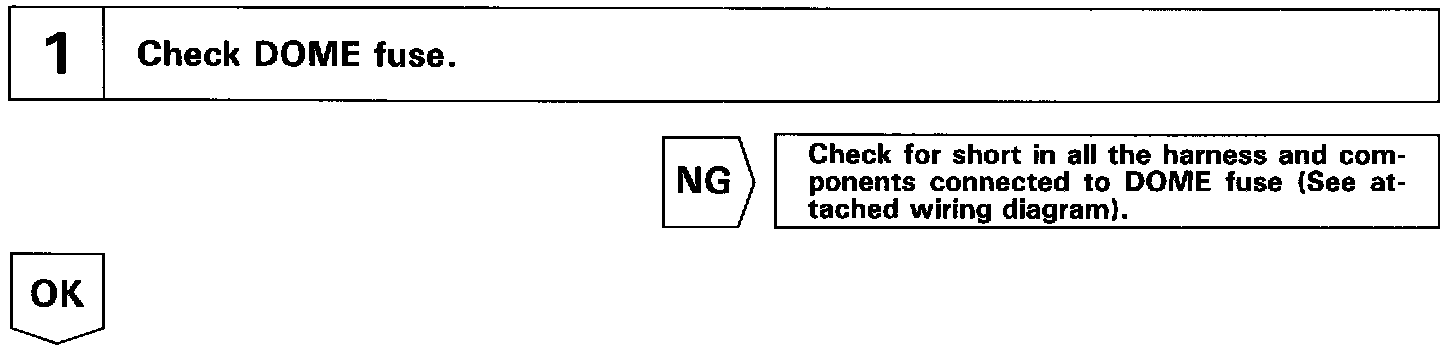

INSPECTION PROCEDURE
