Antenna, Radio: Service and Repair

ANTENNA CORD REMOVAL AND INSTALLATION




1. REMOVE ANTENNA CORD
a. Remove the following parts:
^ Instrument panel assembly
^ Console box
^ Rear seat
^ Right rear pillar garnish
^ Package tray trim
^ Room partition trim

b. Remove antenna cord from glass printed antenna.

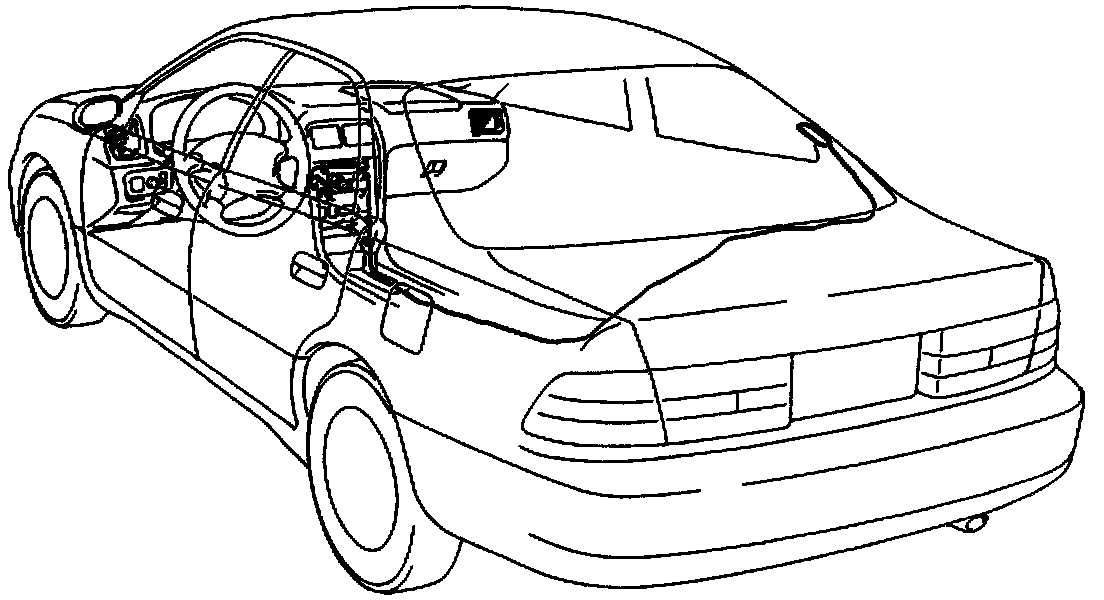

c. Disconnect the connectors shown in the illustration.
d. Remove the clips and antenna cord assembly.

2. INSTALL ANTENNA CORD
For installation follow the removal procedure in reverse.
