DTC P1410 EGR Valve Position Sensor Circuit Malfunction





CIRCUIT DESCRIPTION

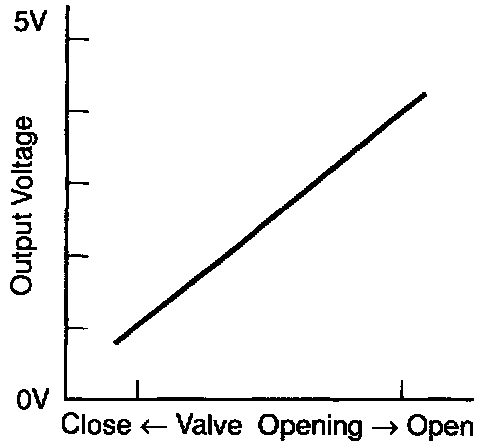

The EGR valve position sensor is mounted on the EGR valve and detects the lift amount of EGR valve. The lift amount of EGR valve which is detected by the EGR valve position sensor provides feedback to the ECM to control the lift amount of EGR valve in response to engine operating conditions.

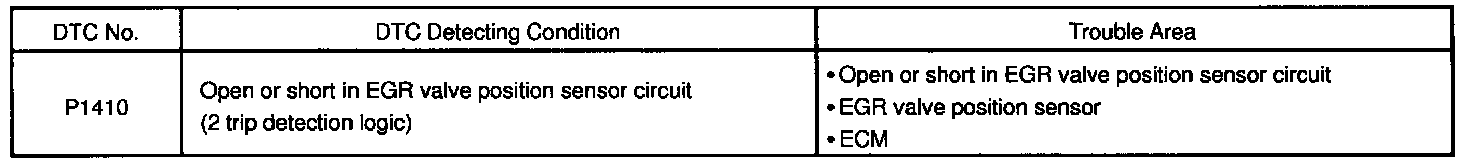

DETECTING CONDITION

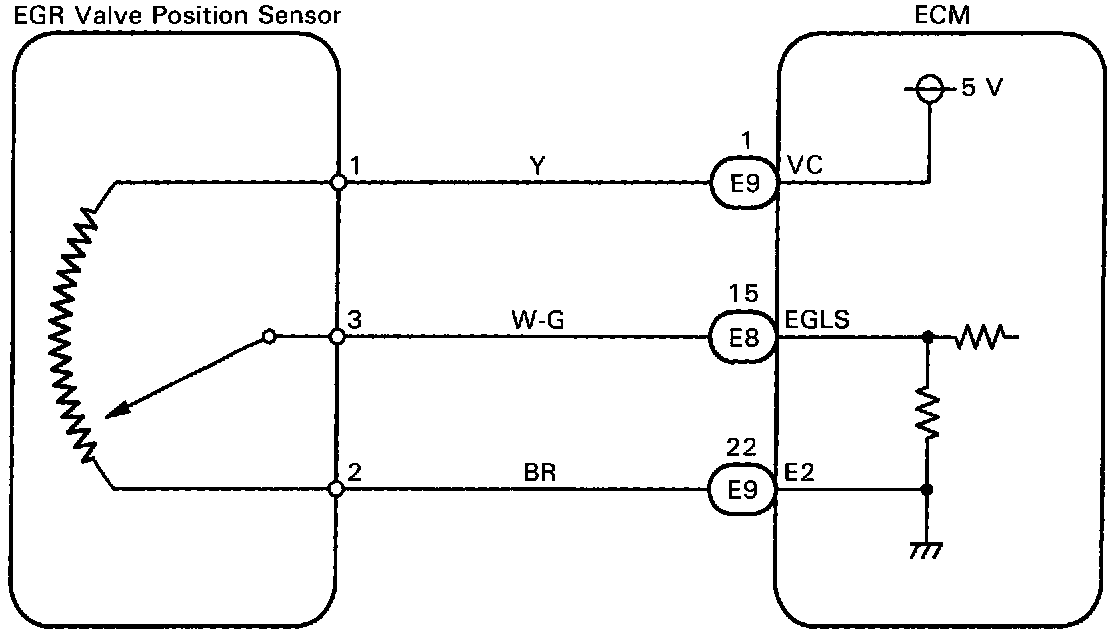

WIRING DIAGRAM

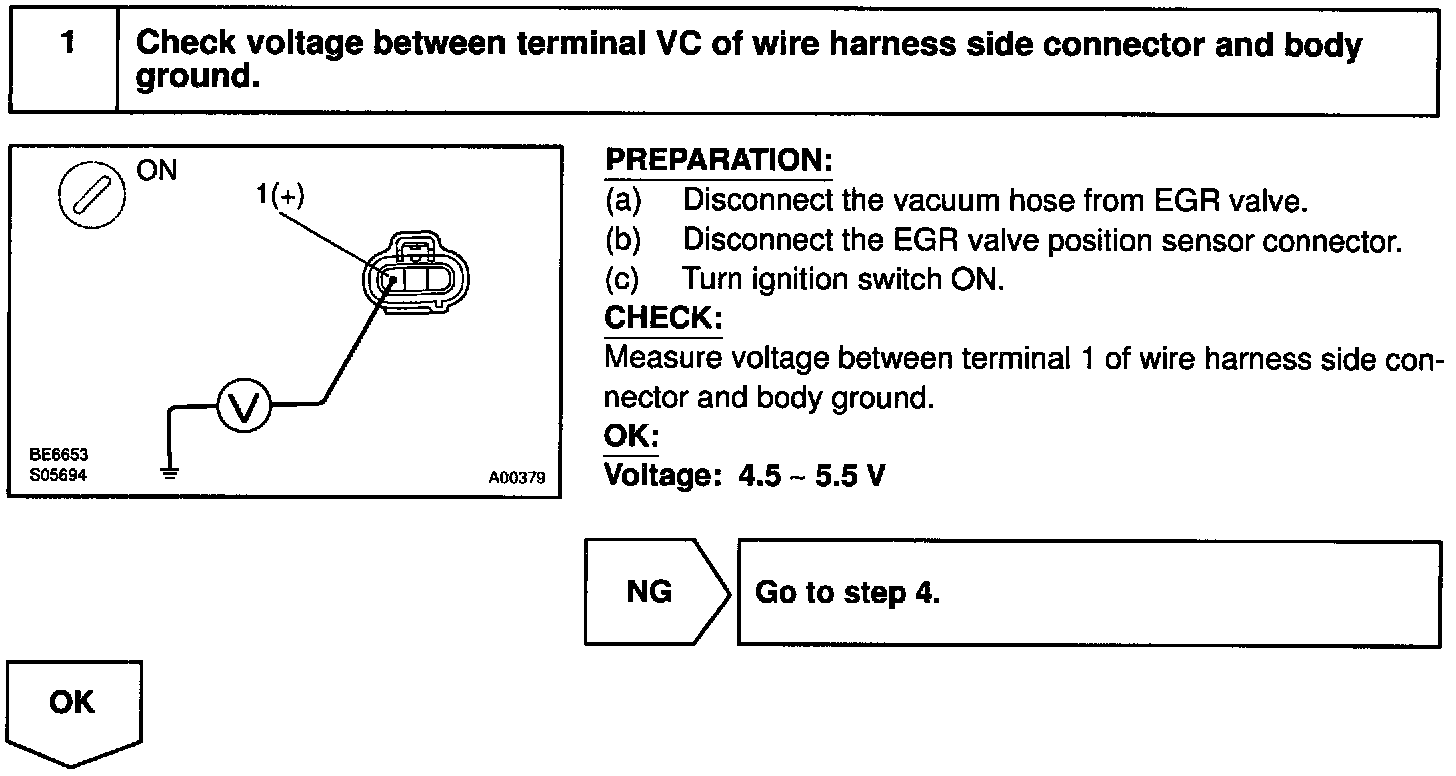

Step 1:

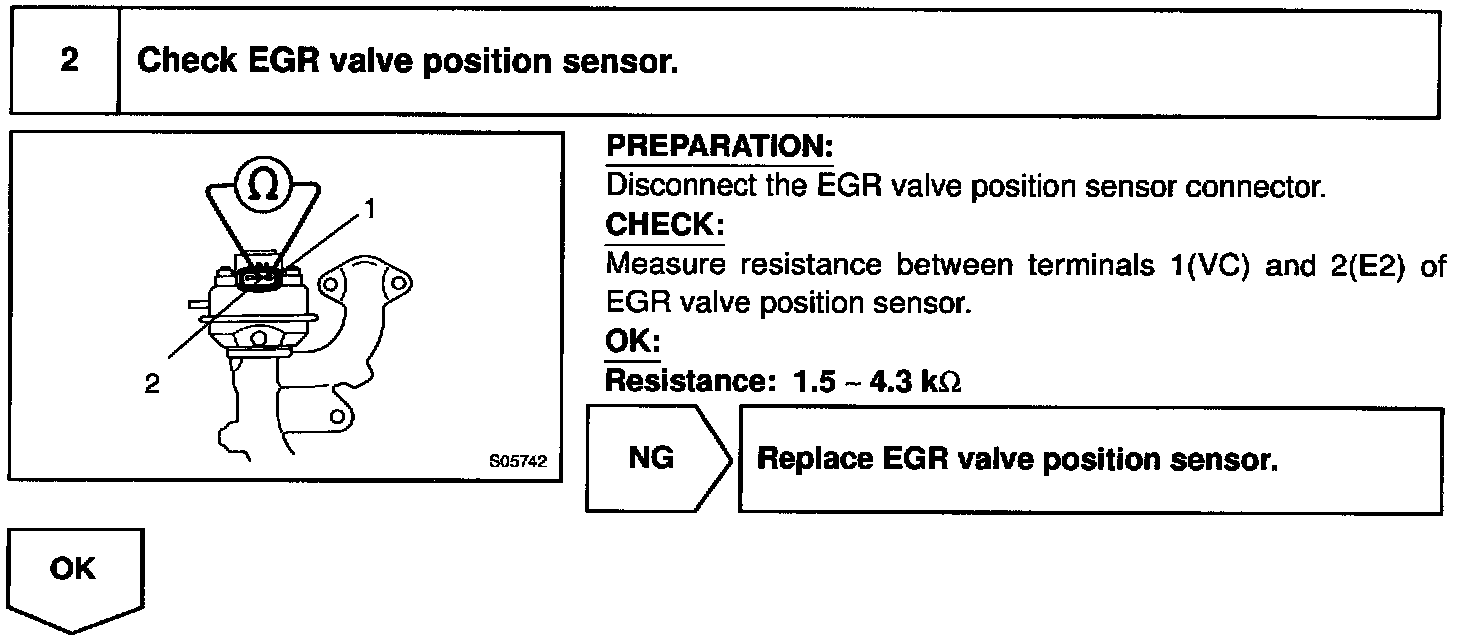

Step 2:

Step 3:

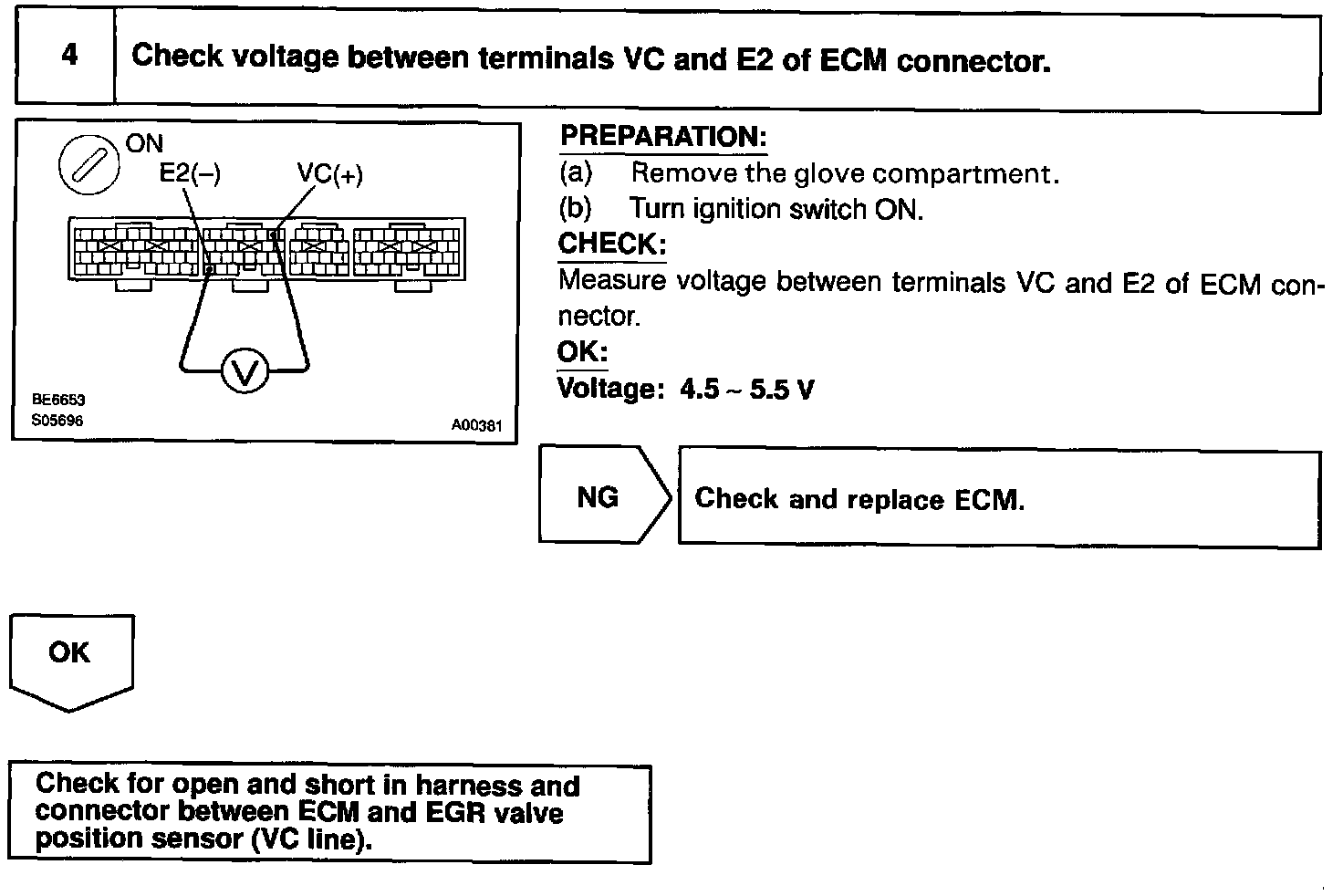

Step 4:

INSPECTION PROCEDURE

HINT: If DTC "P0110" (Intake Air Temp. Circuit Malfunction), "P0115" (Engine Coolant Temp. Circuit Malfunction), "P0120" (Throttle/Pedal Position/Switch "A" Circuit Malfunction), "P1410" (EGR Valve Position Sensor Circuit Malfunction) are output simultaneously, E2 (Sensor Ground) may be open.
