P0441

DTC P0441 Evaporative Emission Control System Incorrect Purge Flow

DTC P0446 Evaporative Emission Control System Vent Control Malfunction





CIRCUIT DESCRIPTION
The vapor pressure sensor and VSV for vapor pressure sensor are used to detect abnormalities in the evaporative emission control system.
The ECM decides whether there is an abnormality in the evaporative emission control system based on the vapor pressure sensor signal.

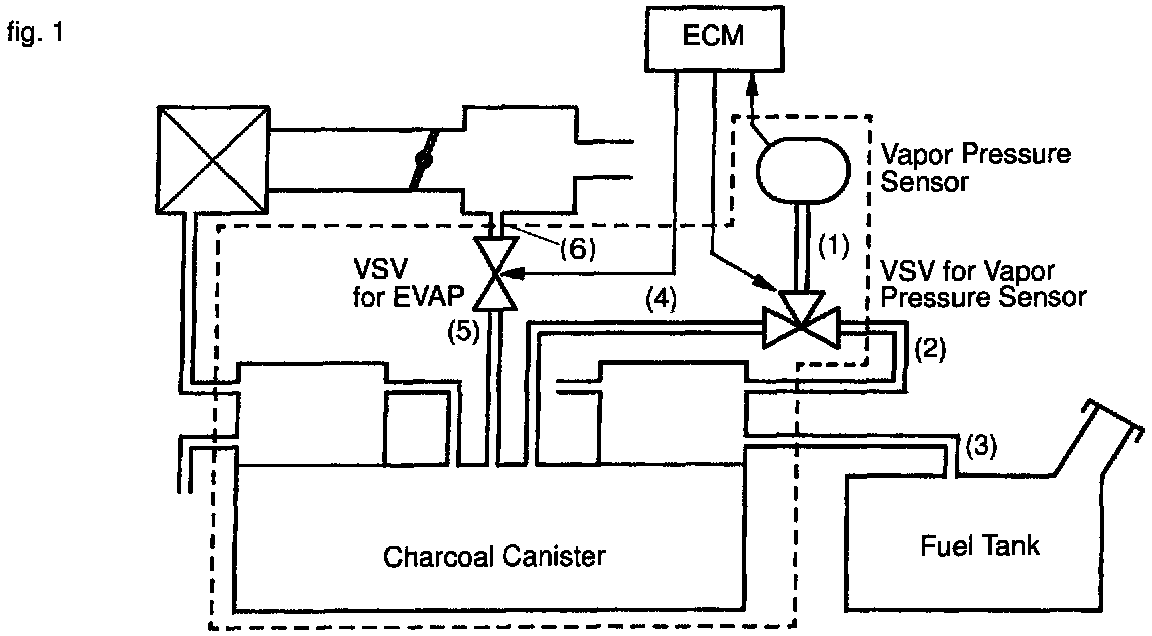

DTC P0441 and P0446 are recorded by the ECM when evaporative emissions leak from the components within the dotted line in fig. 1 below, or when there is a malfunction in either the VSV for EVAP, the VSV for vapor pressure sensor, or in the vapor pressure sensor itself.

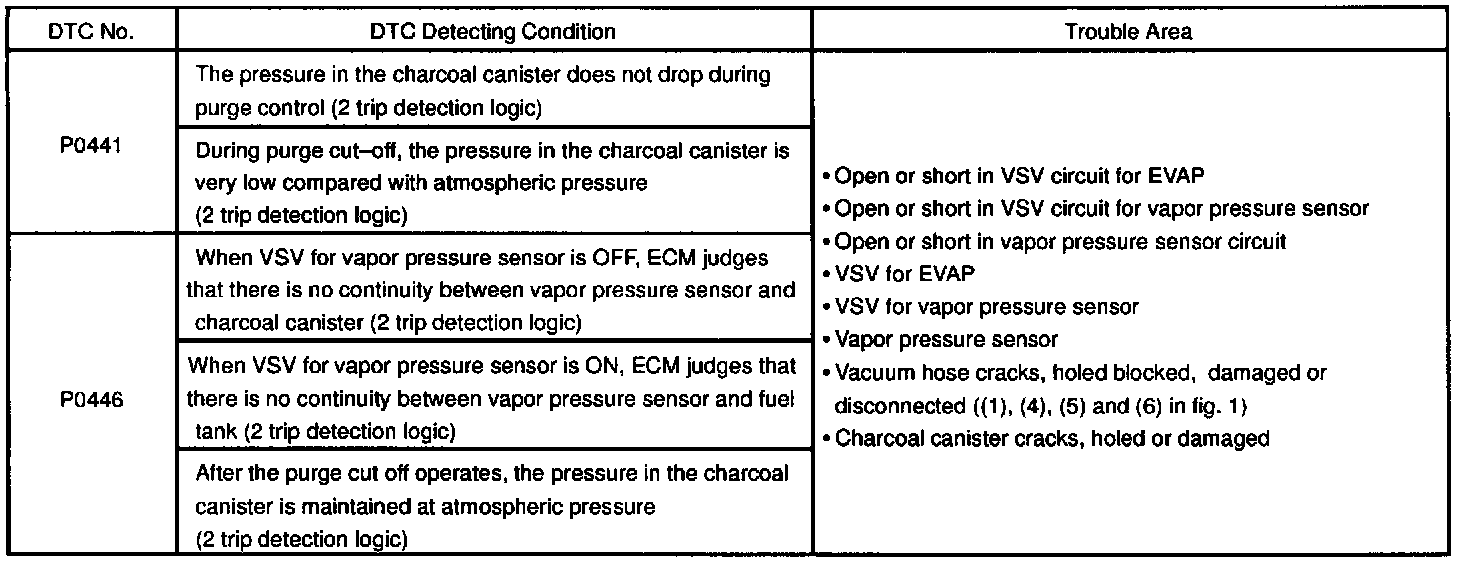

DETECTING CONDITION

HINT: If DTC P0441, P0446 or P0450 is output after DTC P0440, first troubleshoot DTC P0441, P0446 or P0450. If no malfunction is detected, troubleshoot DTC P0440 next.

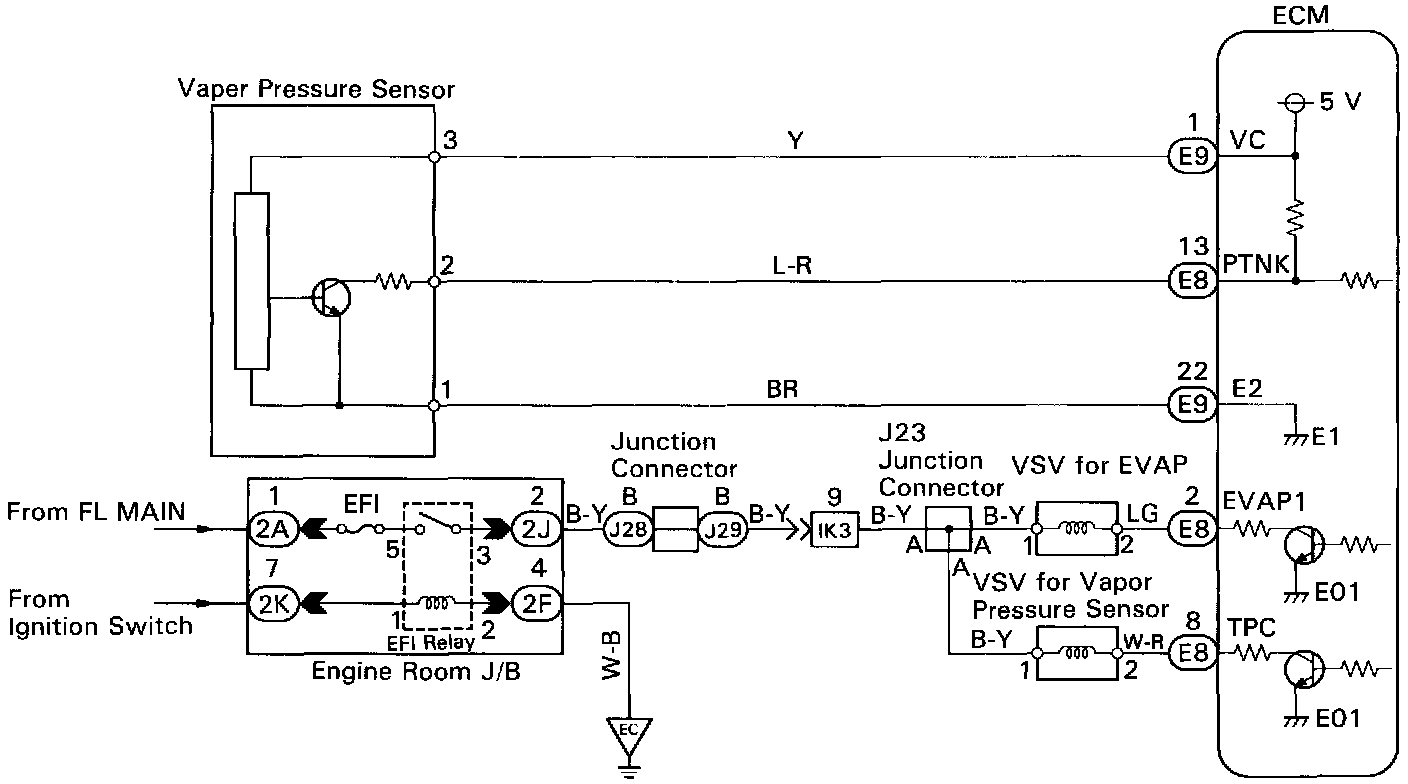

WIRING DIAGRAM

INSPECTION PROCEDURE

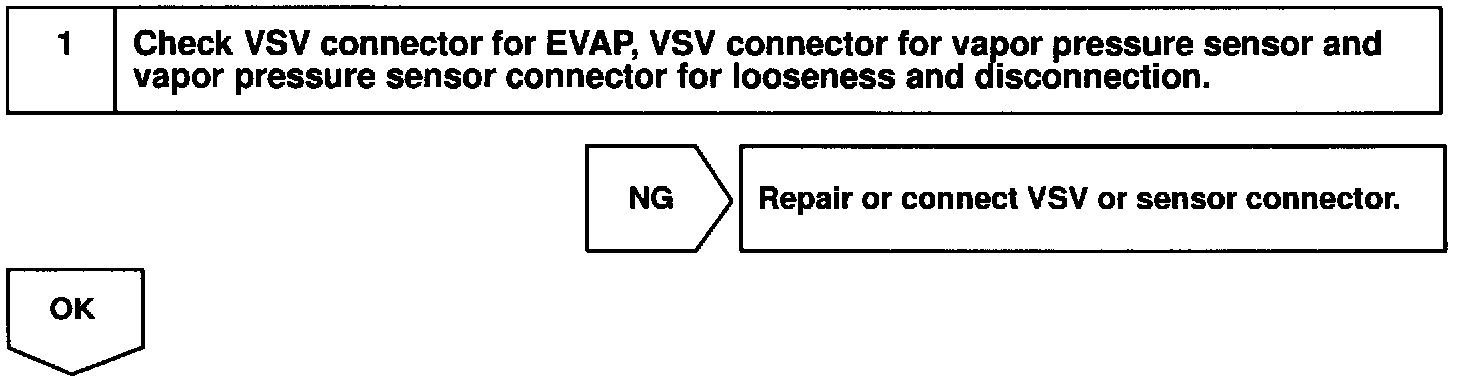

Step 1:

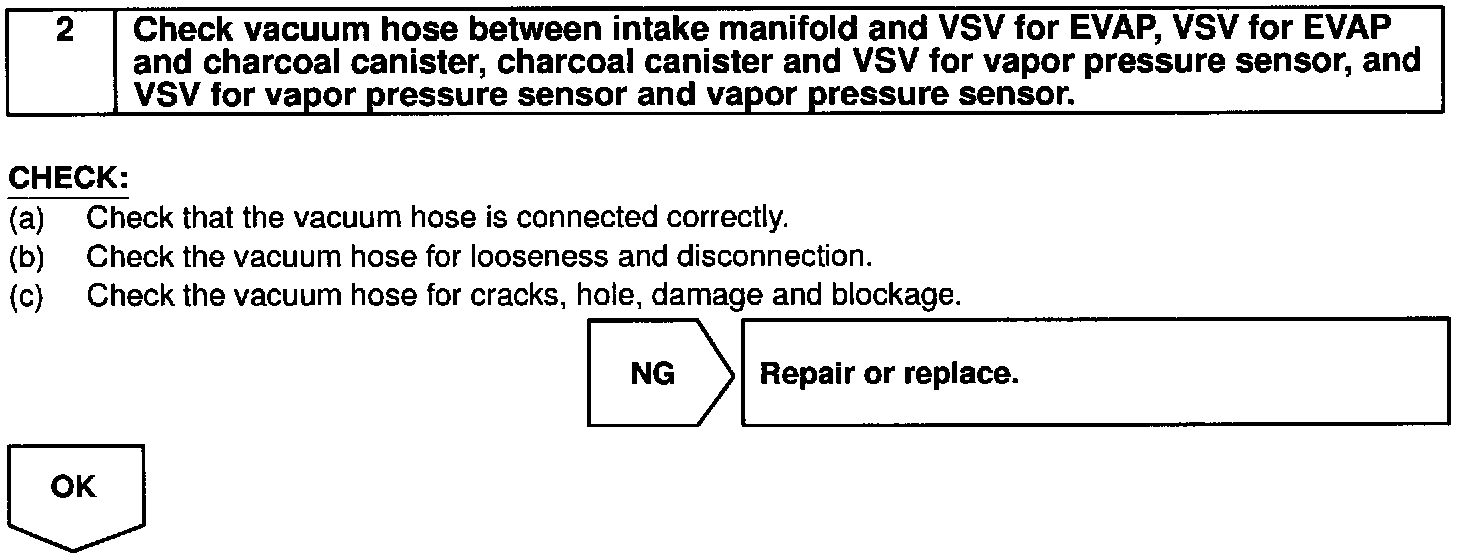

Step 2:

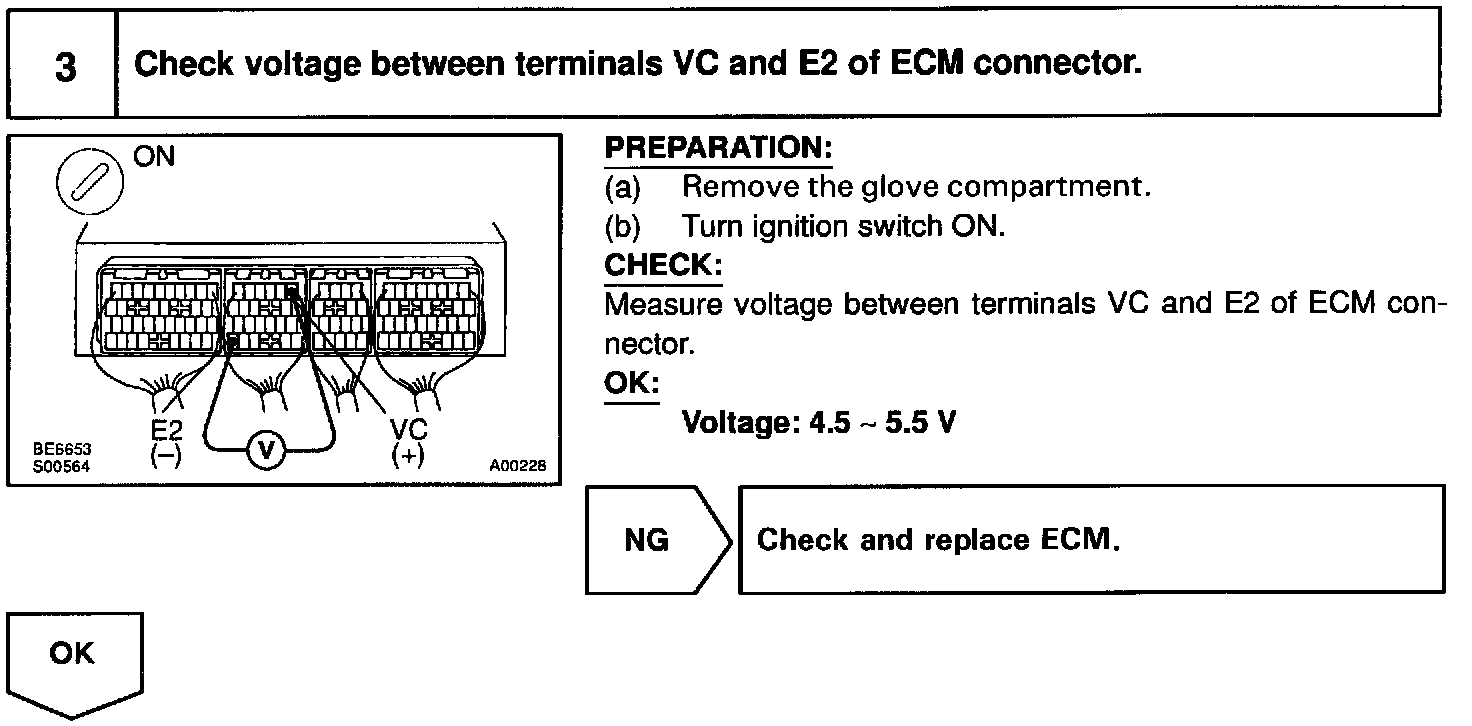

Step 3:

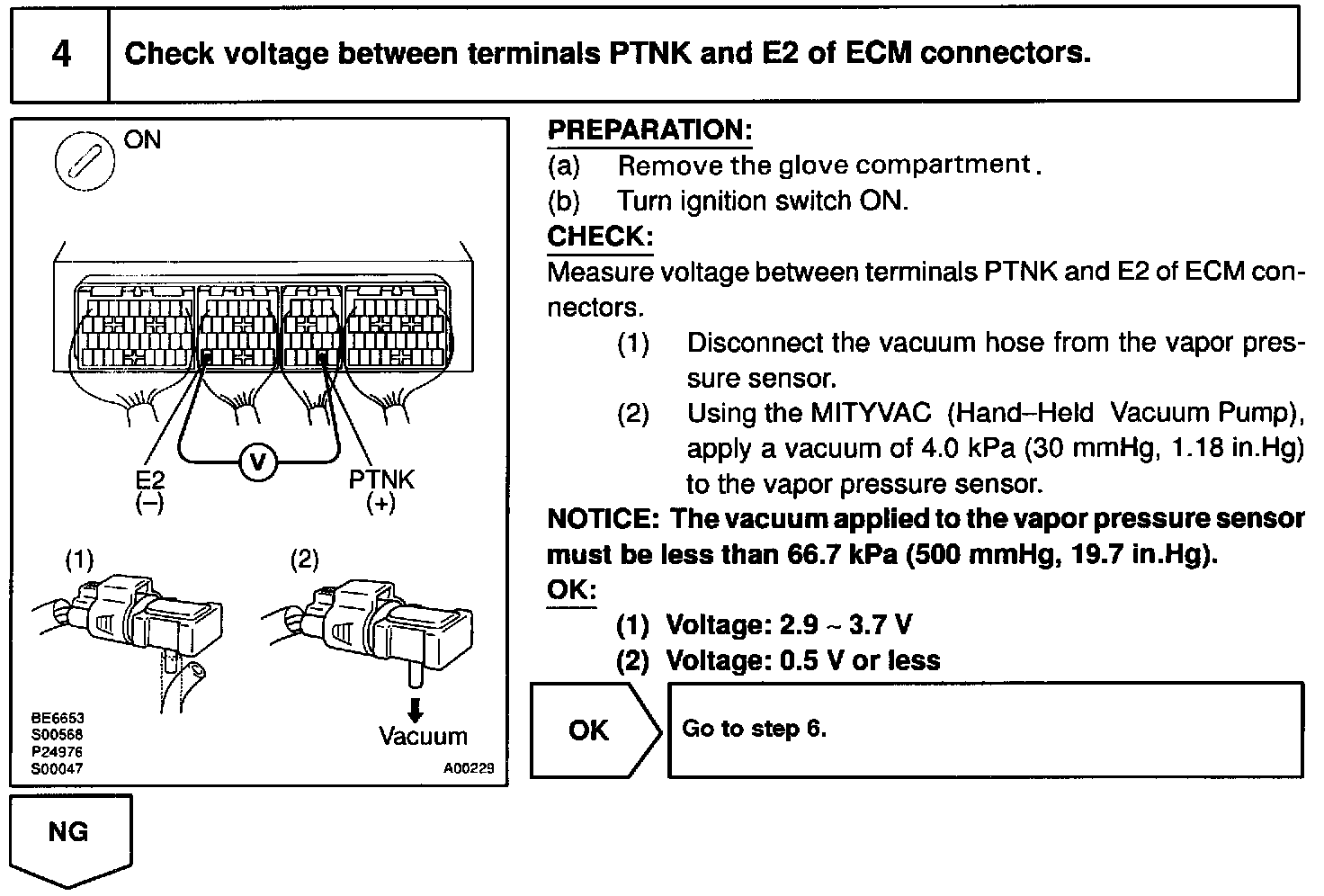

Step 4:

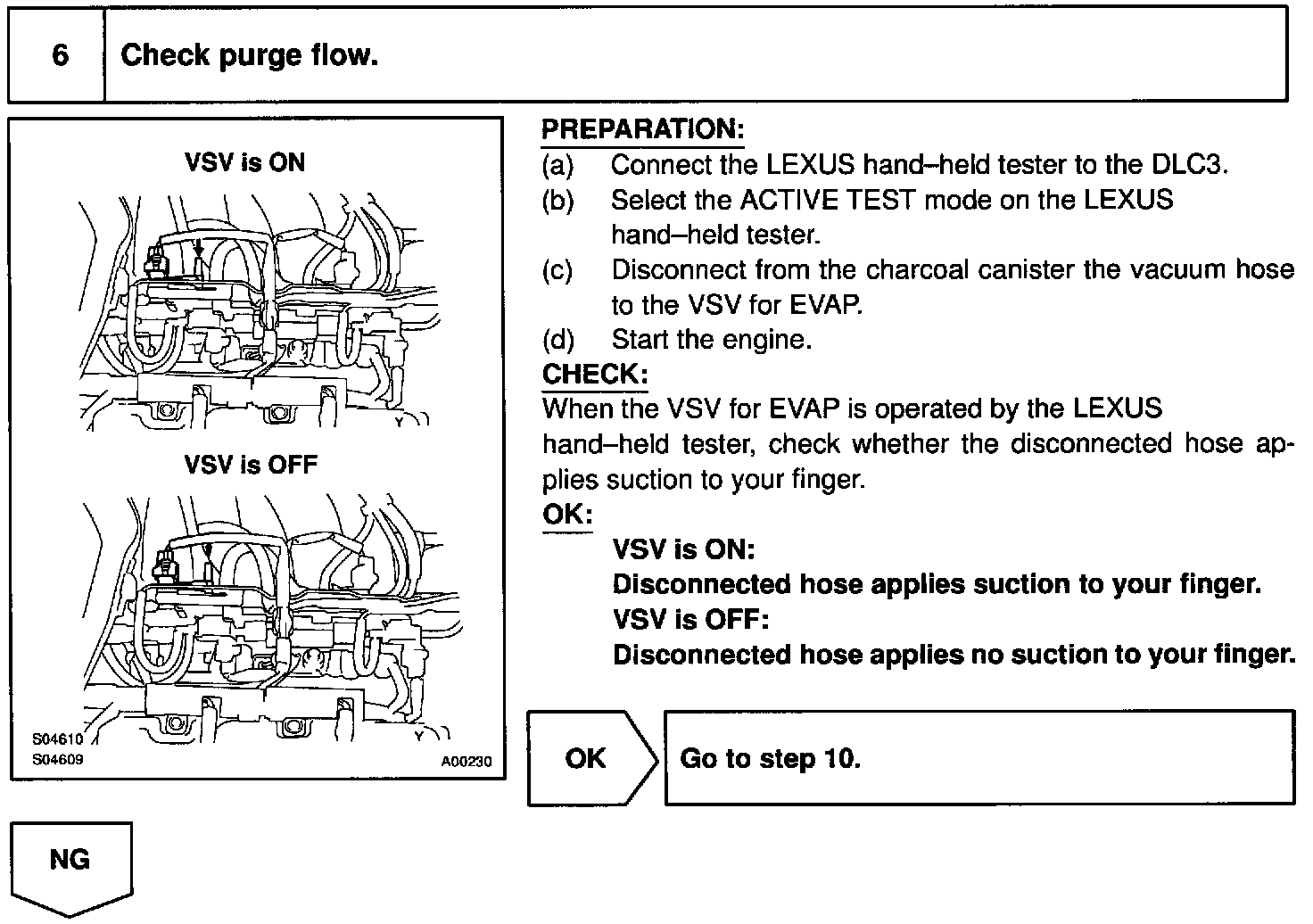

Step 5:

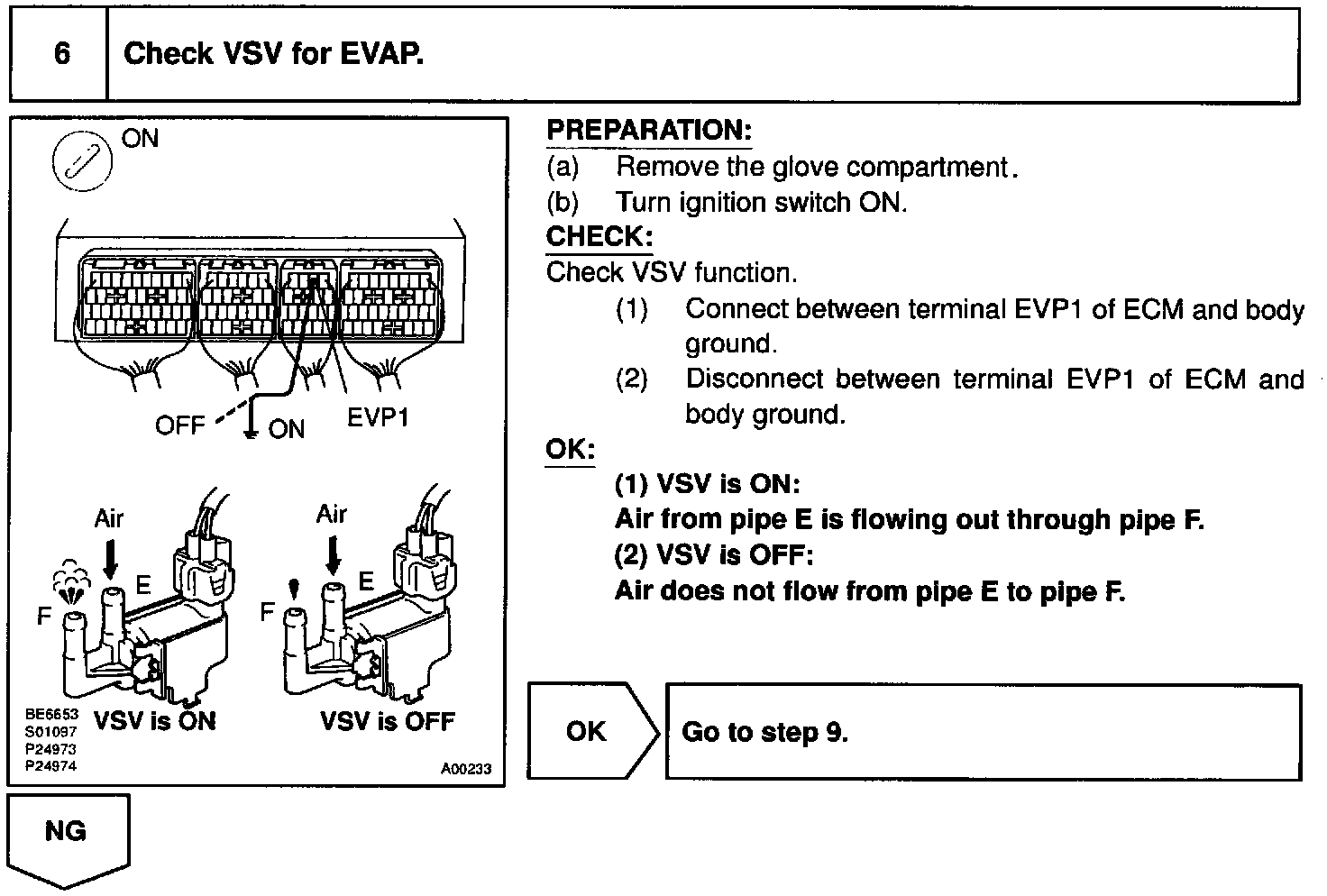

Step 6:

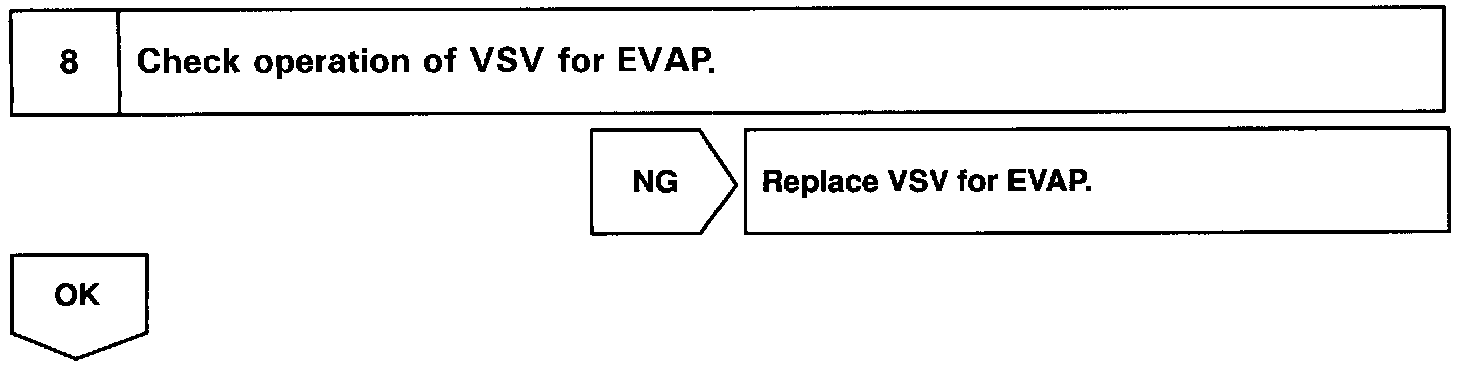

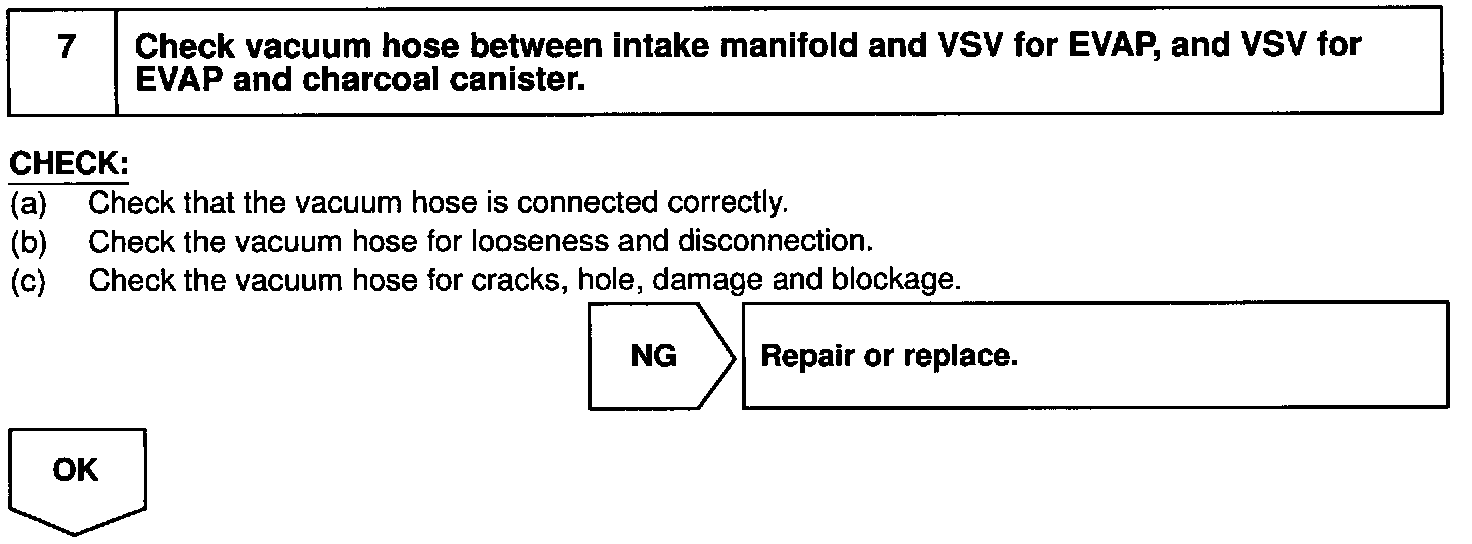

Step 7:

Step 8:

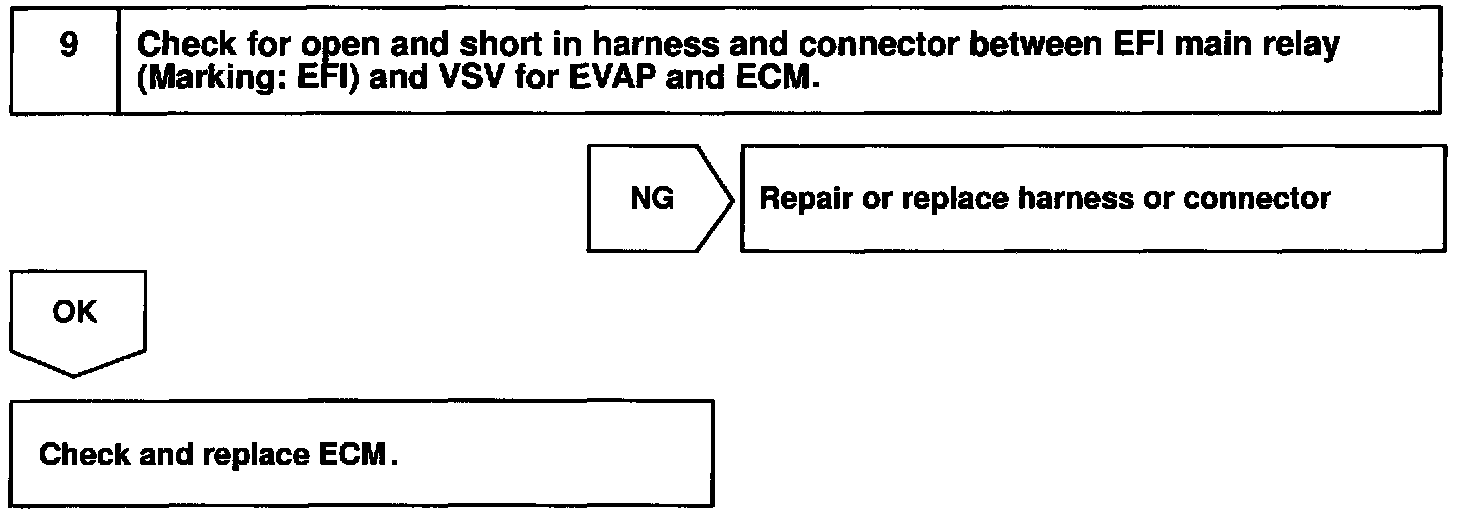

Step 9:

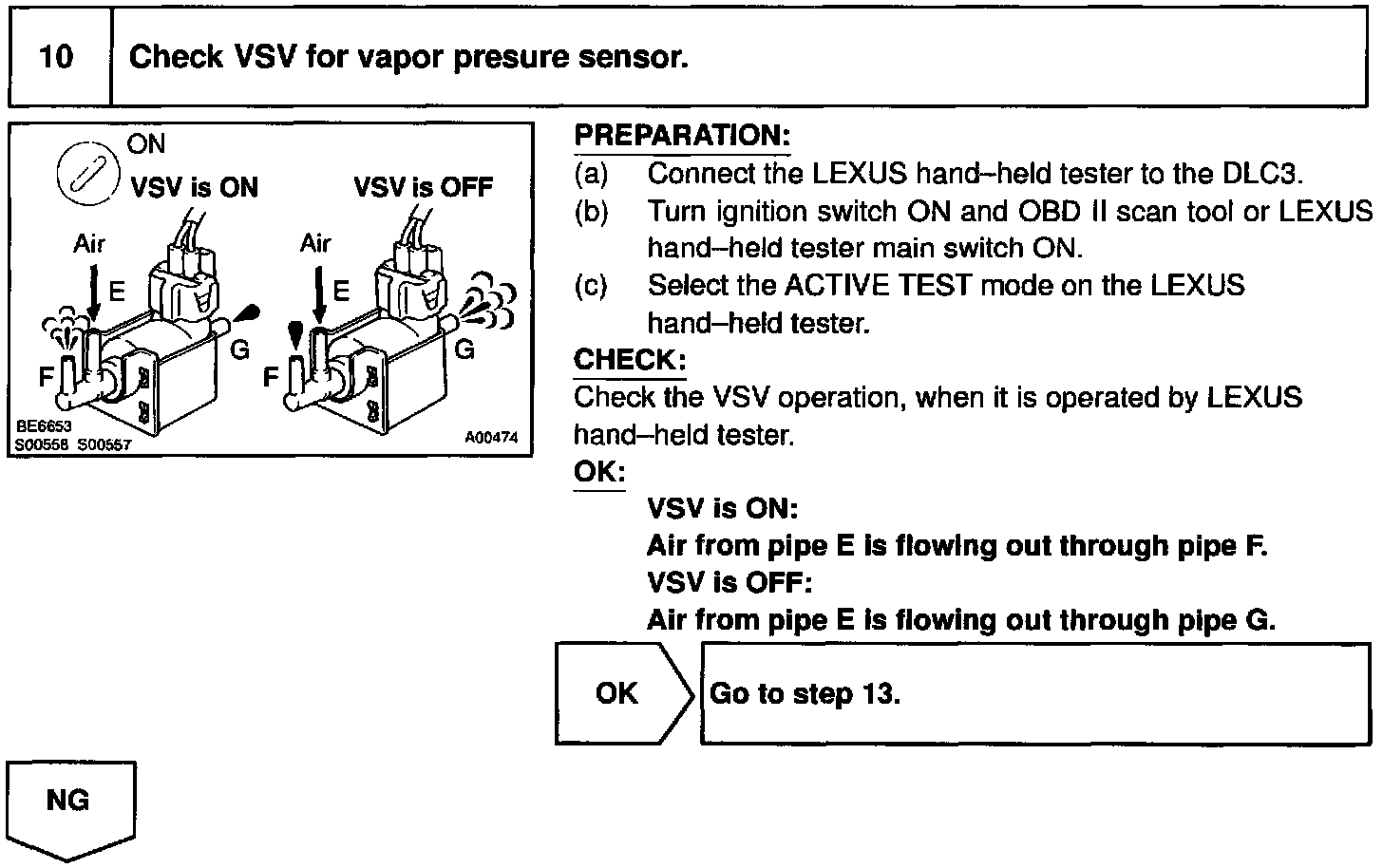

Step 10:

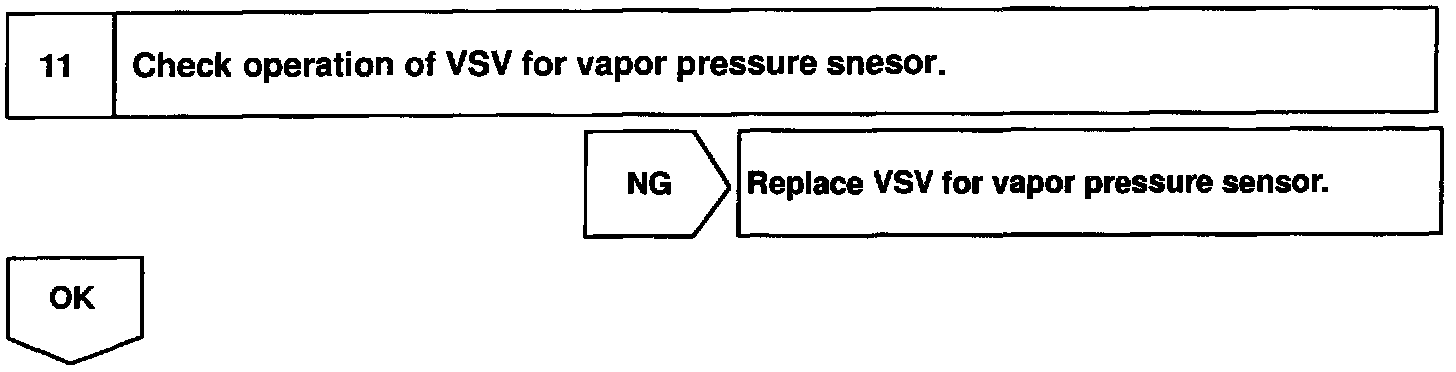

Step 11:

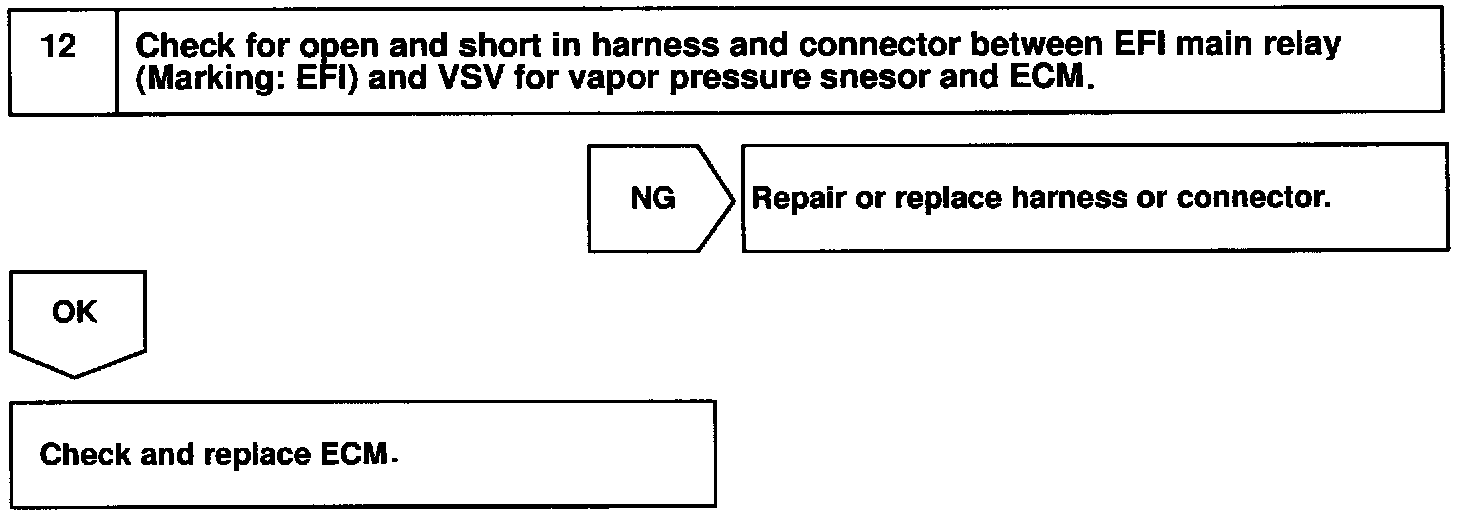

Step 12:

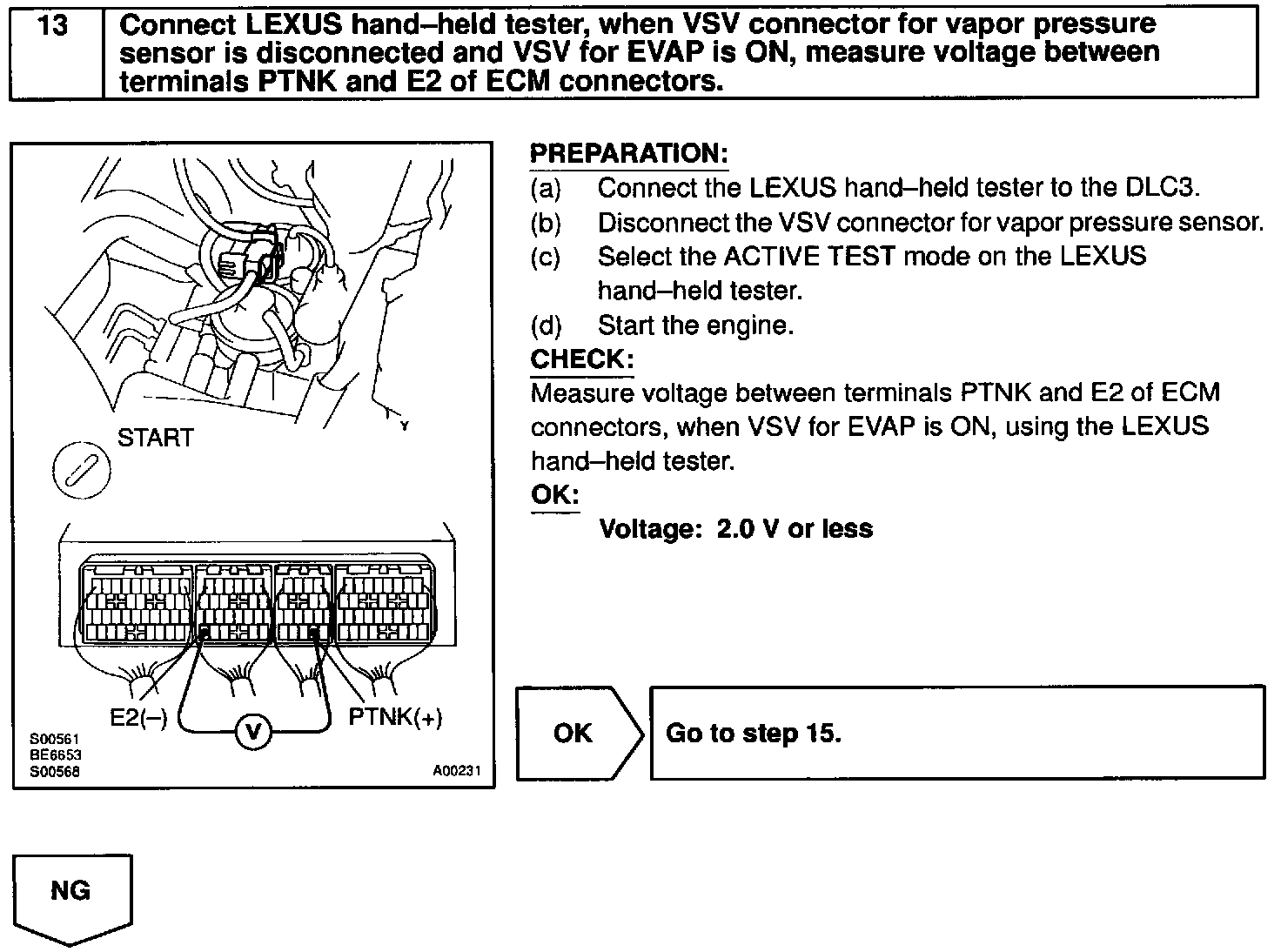

Step 13:

Step 14:

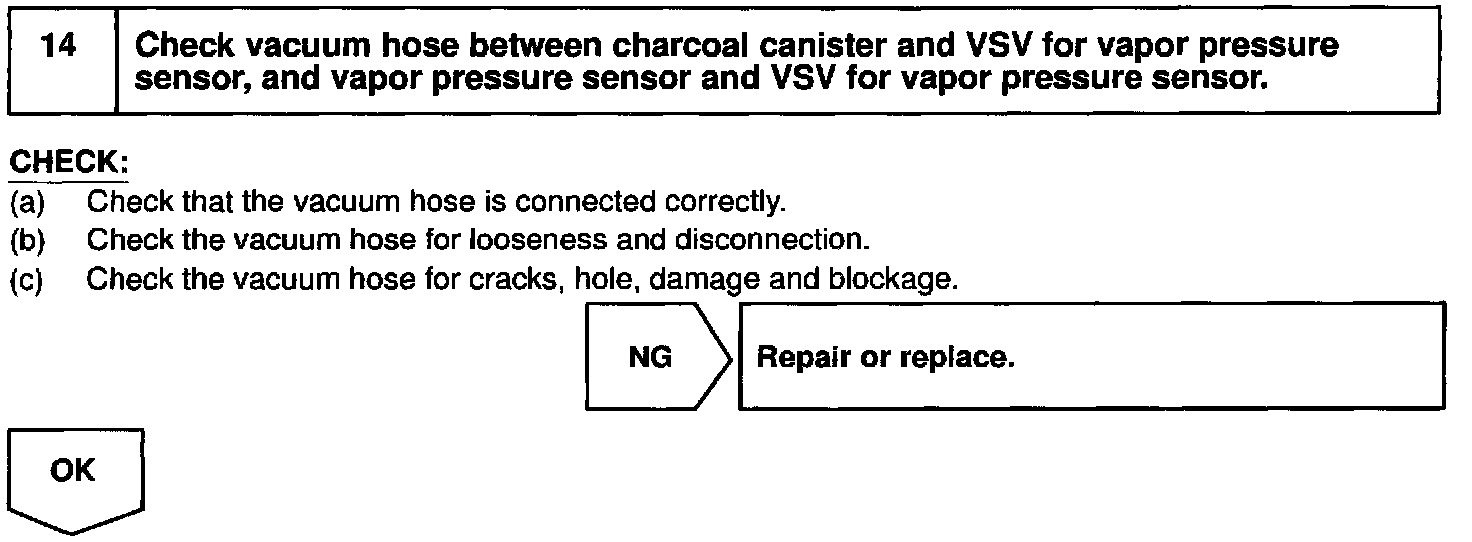

Step 15:

LEXUS hand-held tester

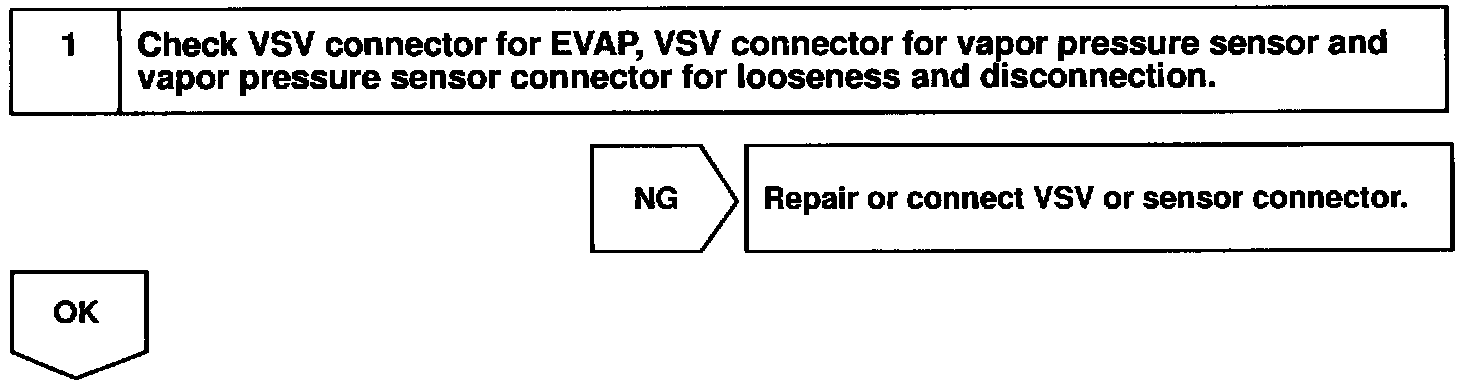

Step 1:

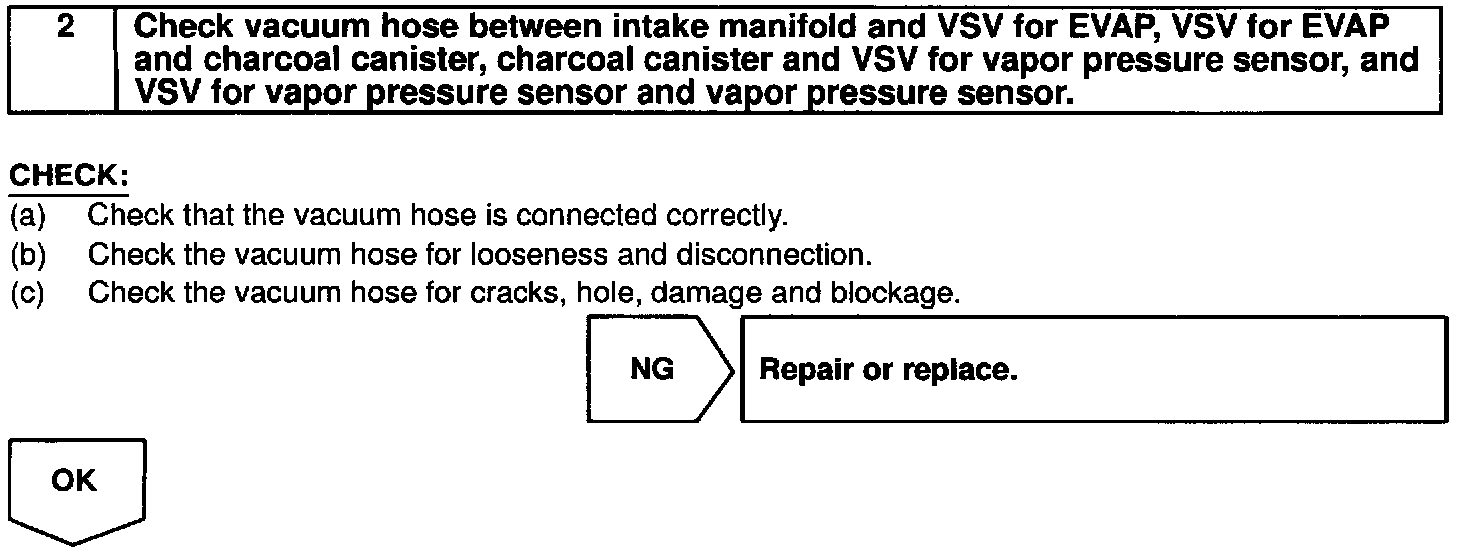

Step 2:

Step 3:

Step 4:

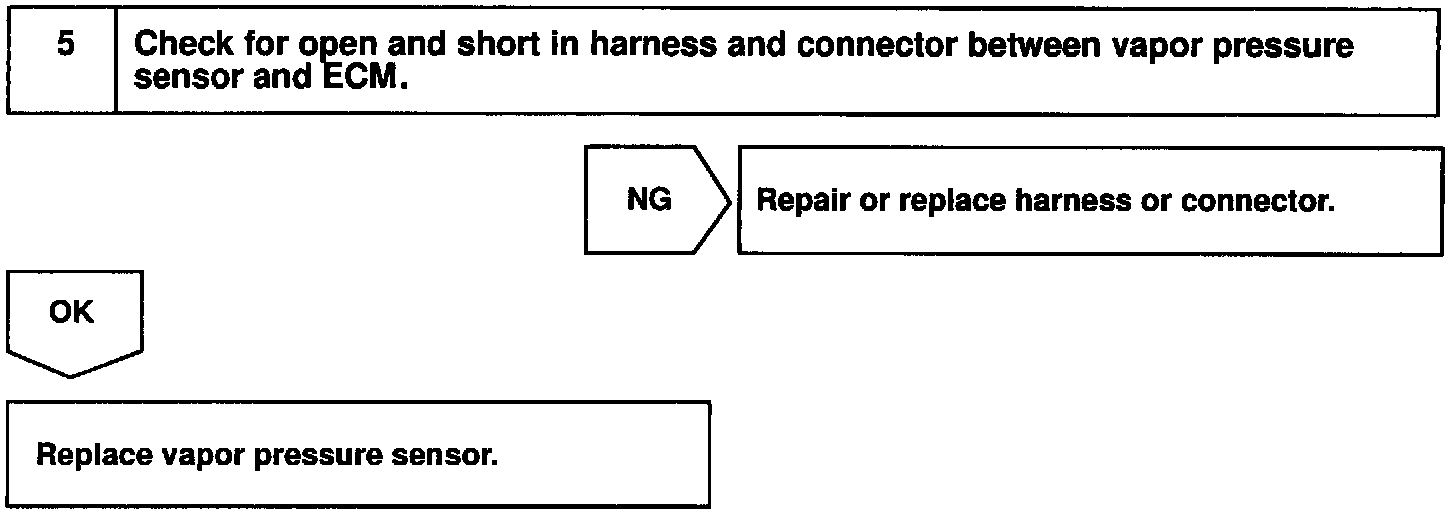

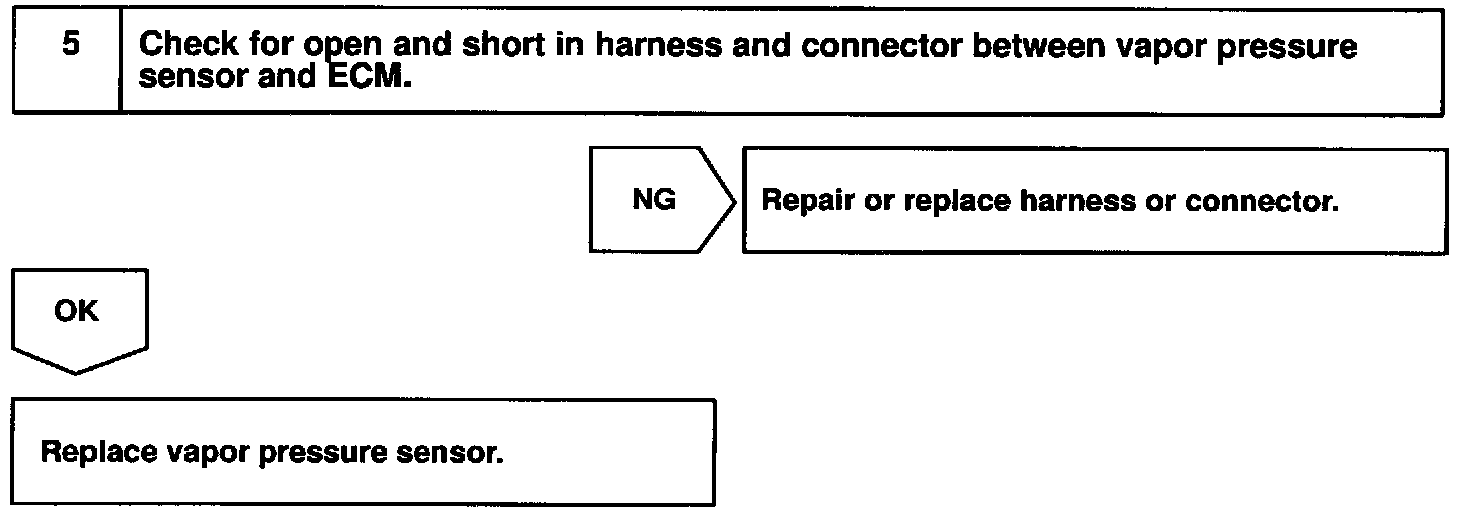

Step 5:

Step 6:

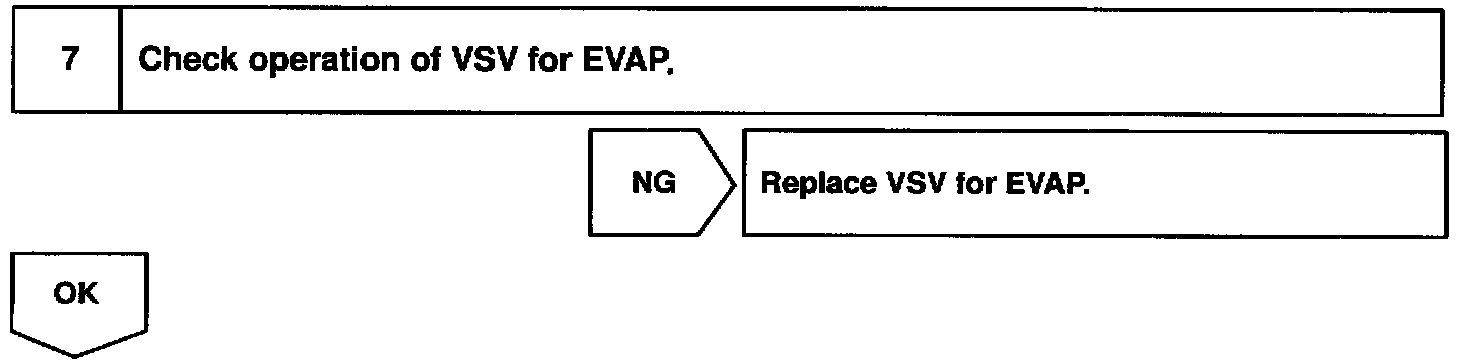

Step 7:

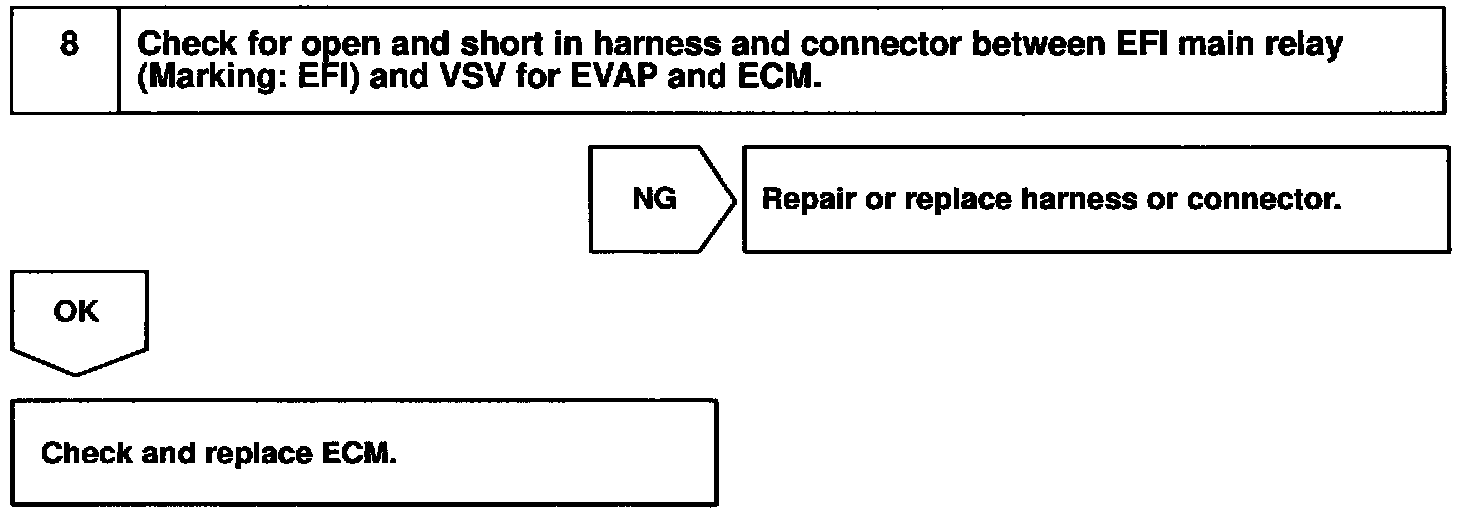

Step 8:

Step 9:

Step 10:

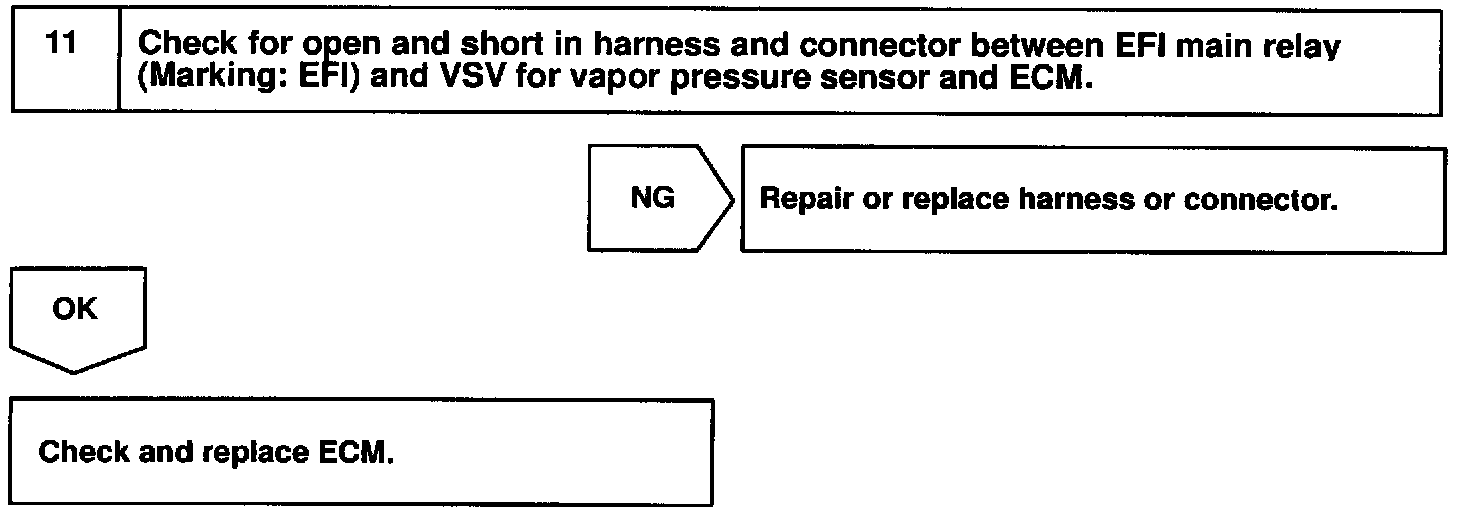

Step 11:

OBD II scan tool (excluding LEXUS hand-held tester)
