Troubleshooting

DTC P0335 Crankshaft Position Sensor "A" Circuit Malfunction

CIRCUIT DESCRIPTION
Crankshaft Position Sensor (NE signal) consists of a signal plate and pickup coil.
The NE signal plate has 34 teeth and is mounted on the crankshaft angle based on the G22 signals, and the actual crankshaft angle and the engine speed by the NE signals.

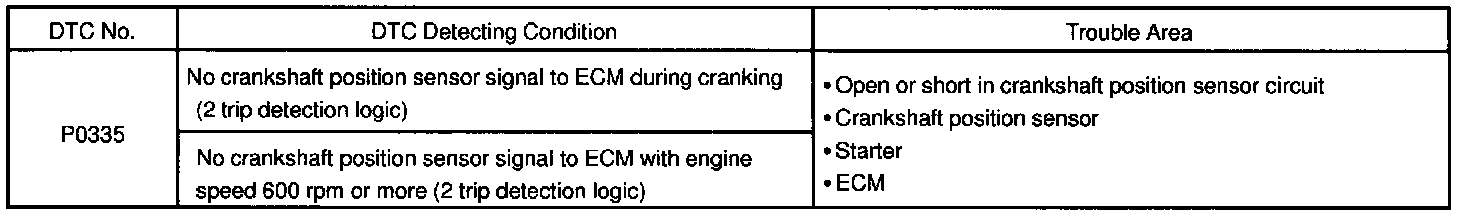

DETECTING CONDITION





WIRING DIAGRAM

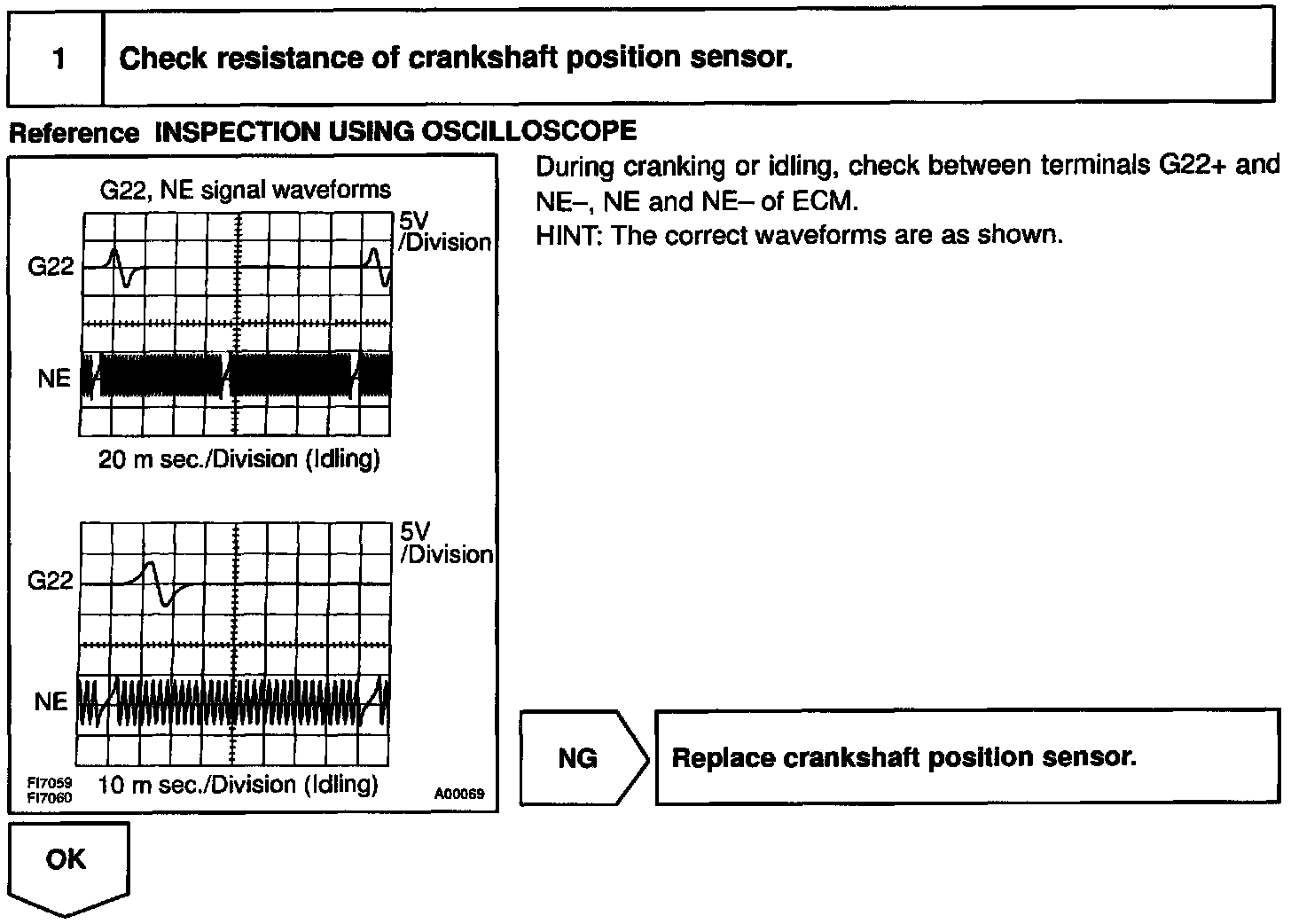

Step 1:

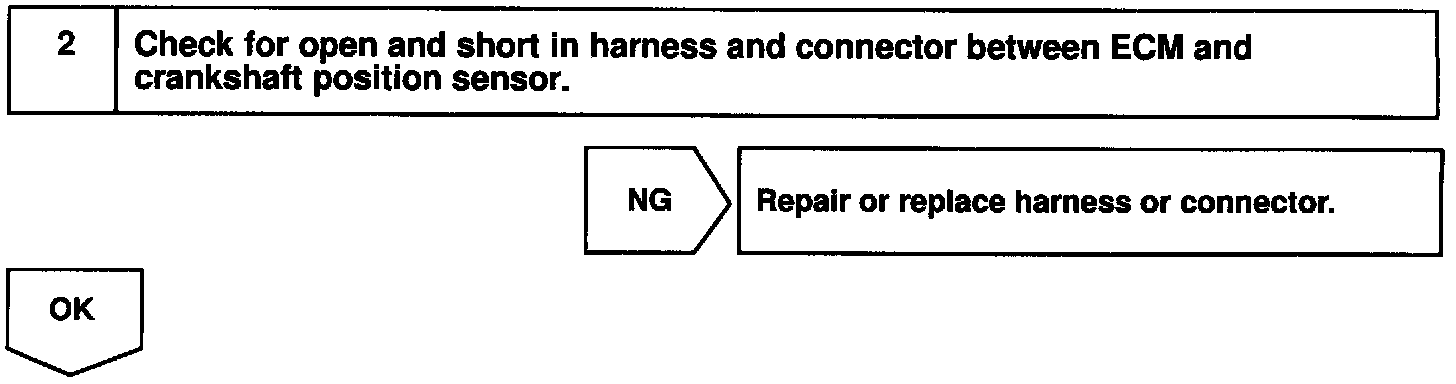

Step 2:

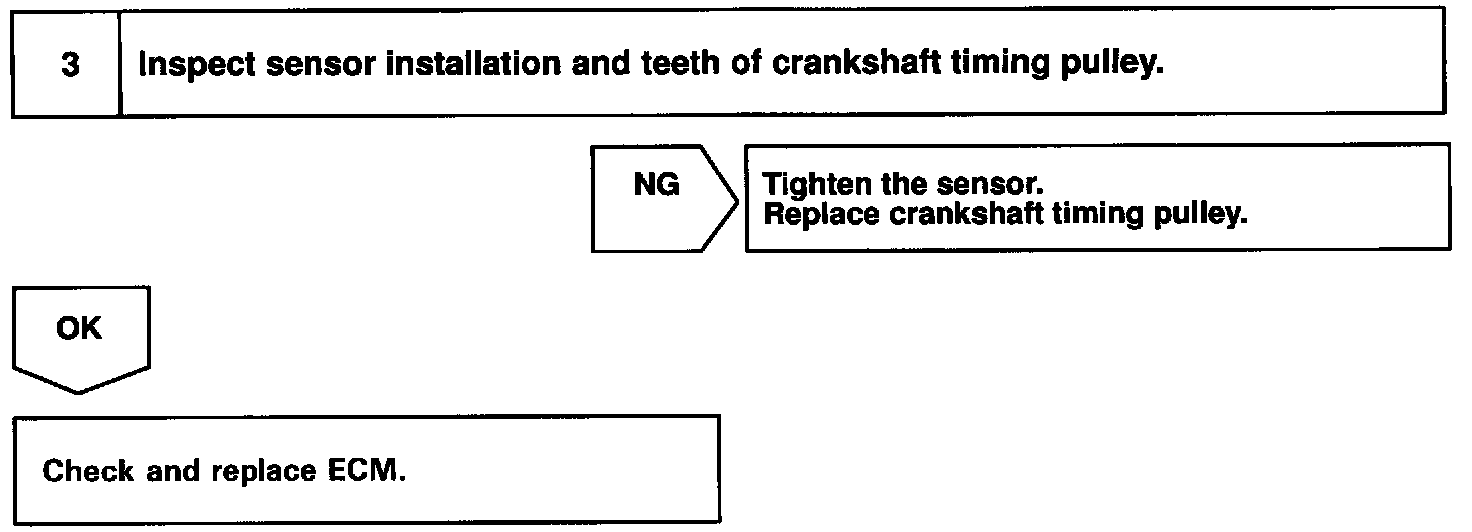

Step 3:

INSPECTION PROCEDURE

HINT: Perform troubleshooting of DTC P0335 first. If no trouble is found, troubleshoot the following mechanical systems.
