Troubleshooting

DTC P0116 Engine Coolant Temp. Circuit Range/ Performance Problem

CIRCUIT DESCRIPTION
A thermistor built into the engine coolant temp. sensor changes the resistance value according to the engine coolant temp.
The structure of the sensor and connection to the ECM is the same as in the intake air temp. circuit malfunction.

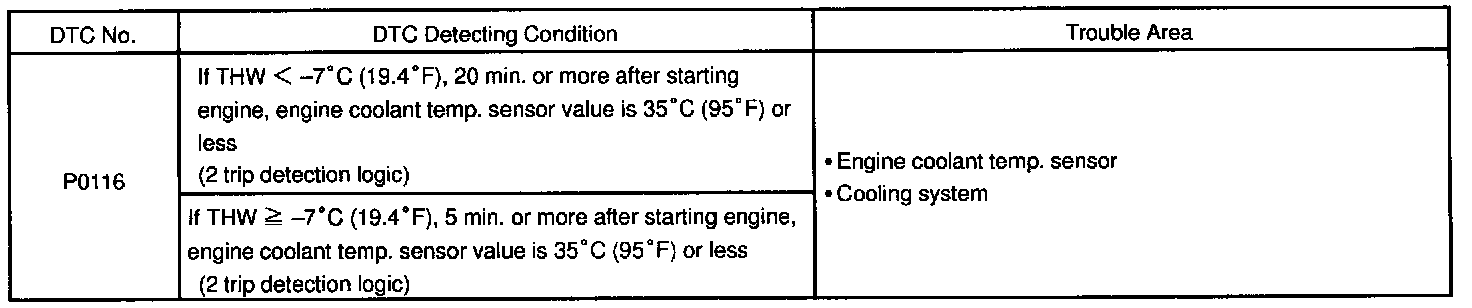

DETECTING CONDITION

Step 1:

Step 2:

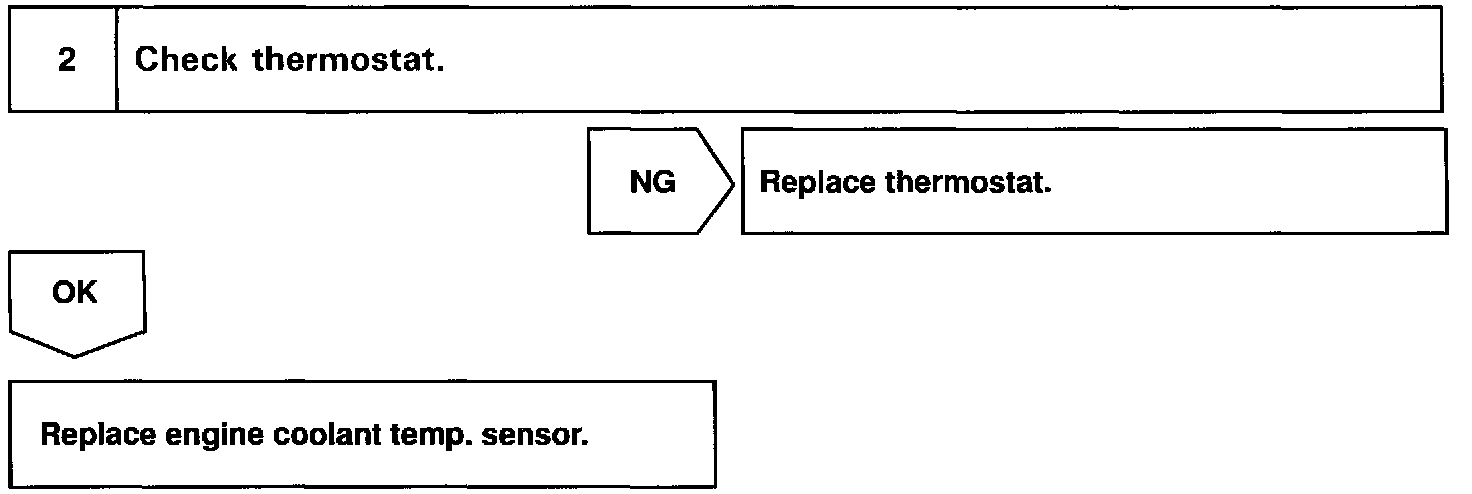

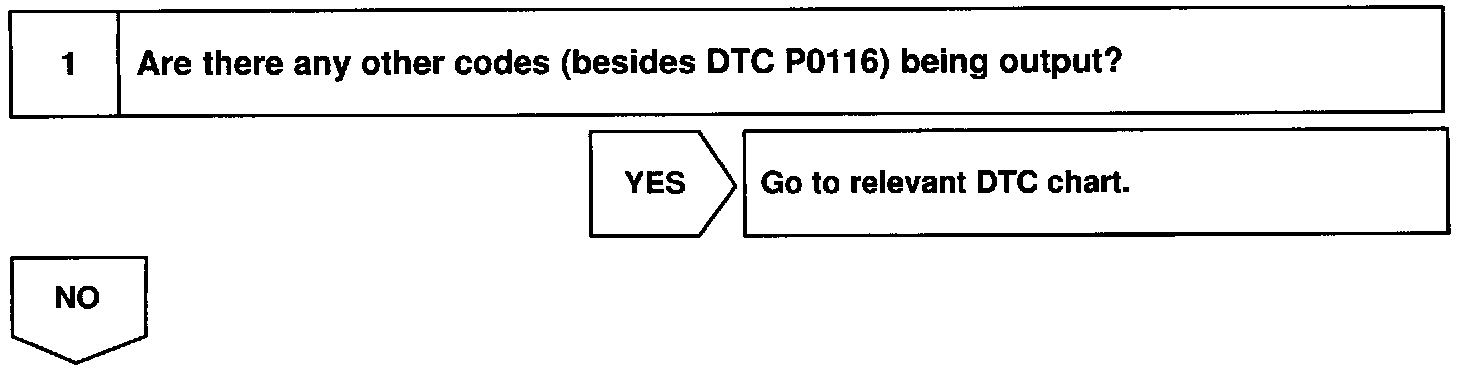

INSPECTION PROCEDURE

HINT: If DTC P0115 (Engine Coolant Temp. Circuit Malfunction) and P0116 (Engine Coolant Temp. Circuit Range/Performance) are output simultaneously, engine coolant temp. sensor circuit may be open. Perform troubleshooting of DTC P0115 first.
