Air Inlet Control Servomotor Circuit


















CIRCUIT DESCRIPTION
The air inlet control servomotor is controlled by the A/C control assembly and moves the air inlet damper to the desired position.

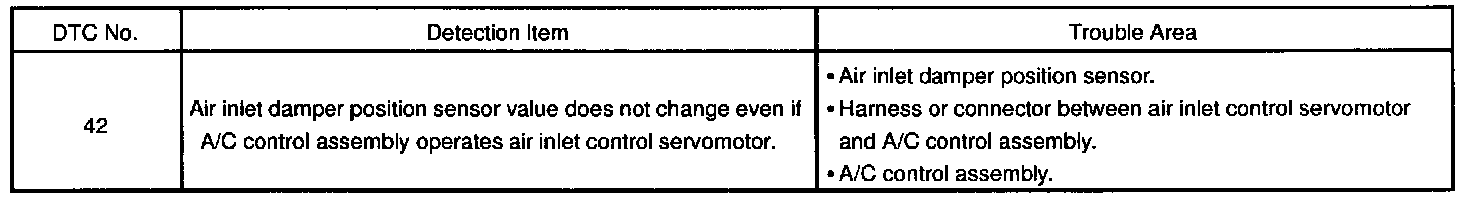

DETECTING CONDITION

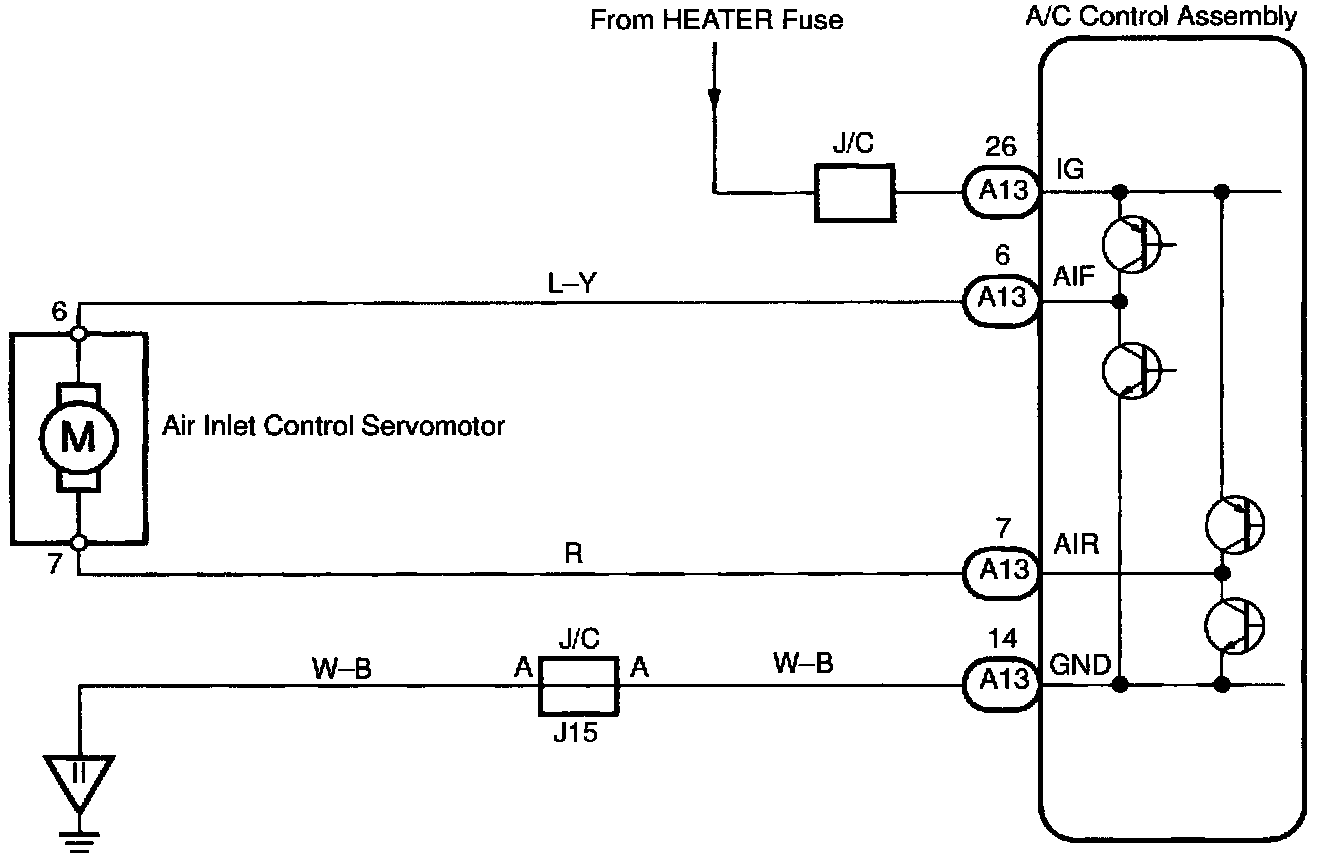

WIRING DIAGRAM

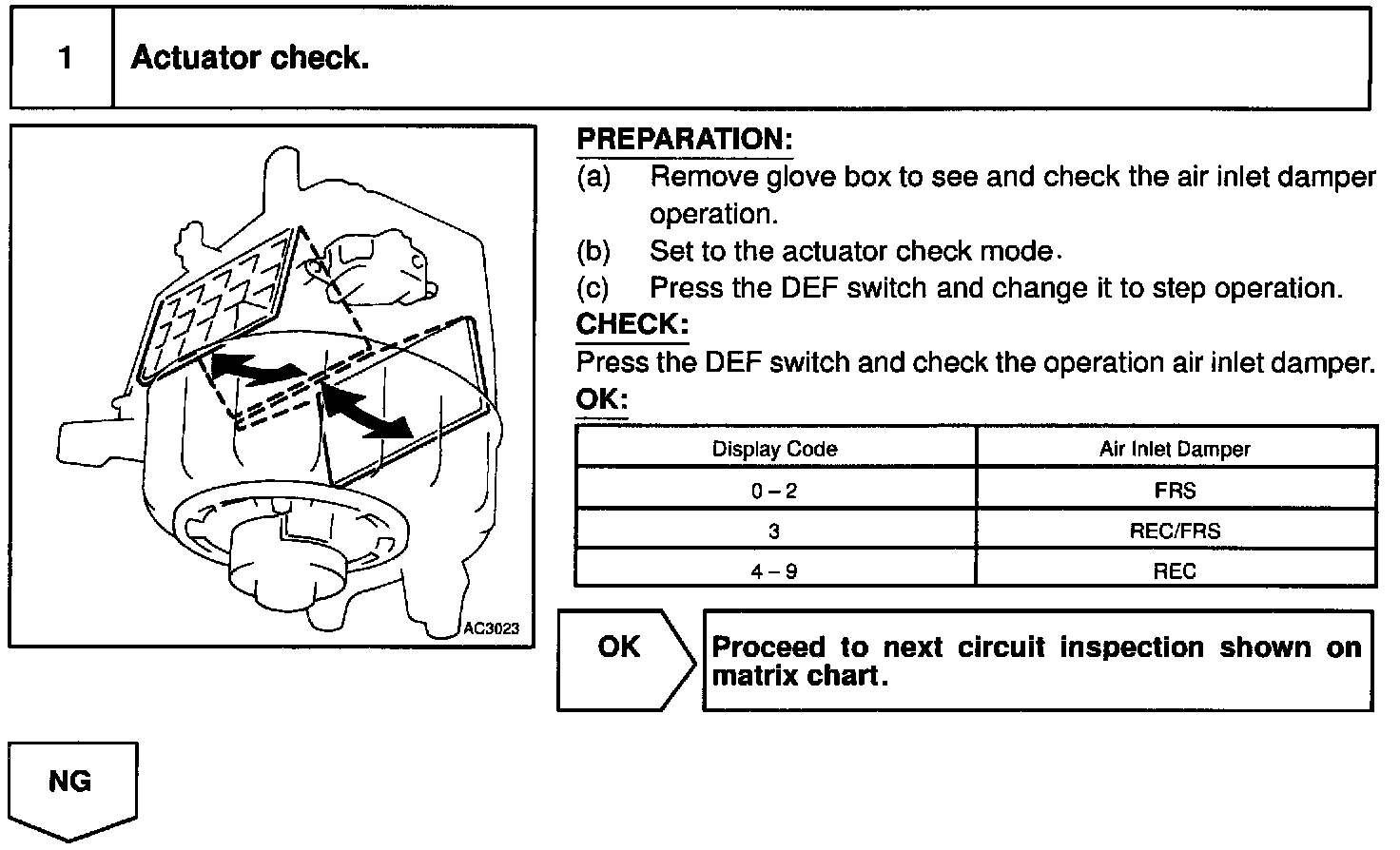

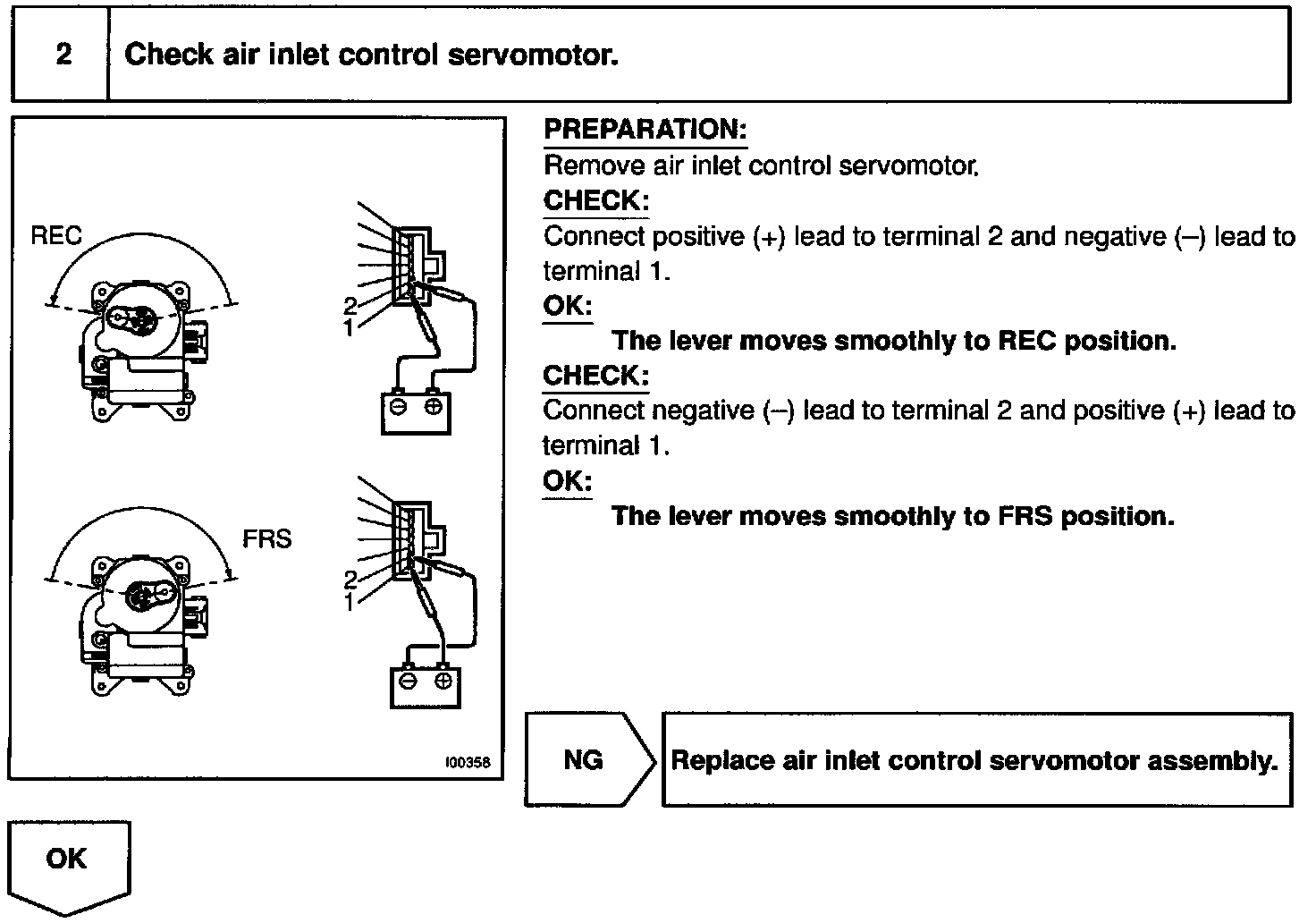

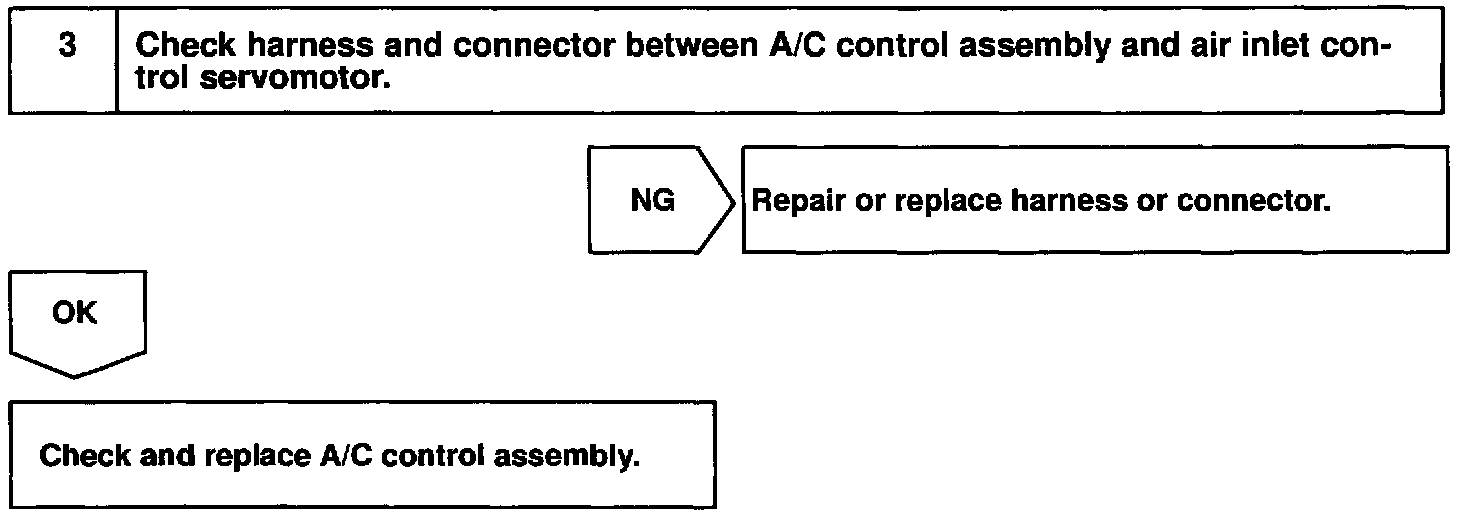

INSPECTION PROCEDURE
