Air Mix Control Servomotor Circuit


















CIRCUIT DESCRIPTION
This air mix control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

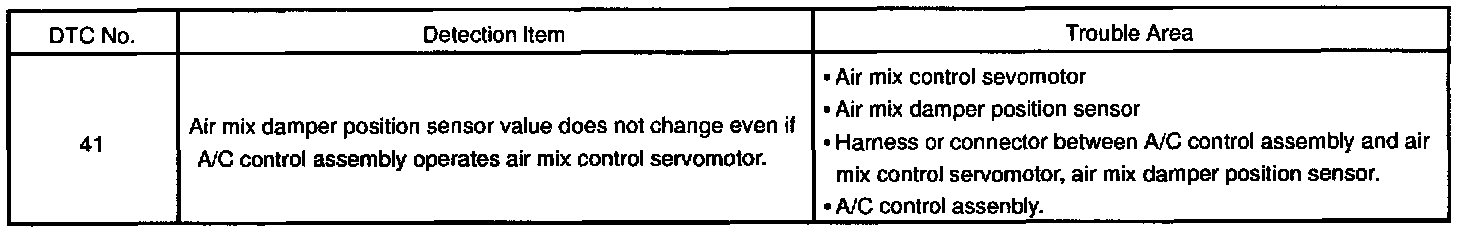

DETECTING CONDITION

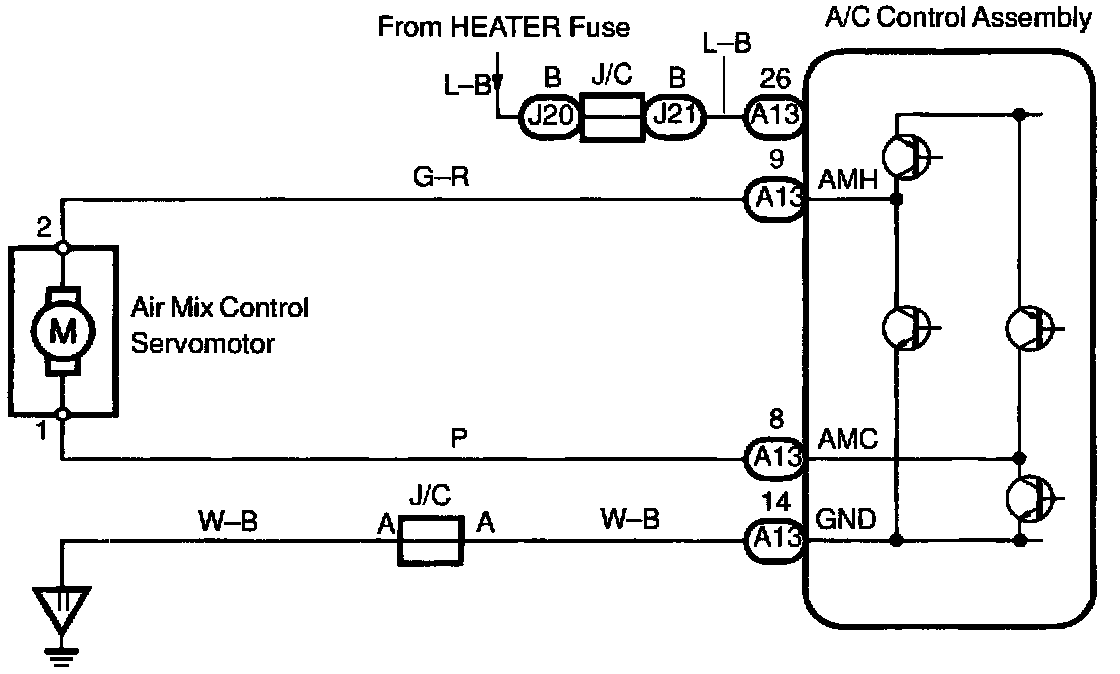

WIRING DIAGRAM

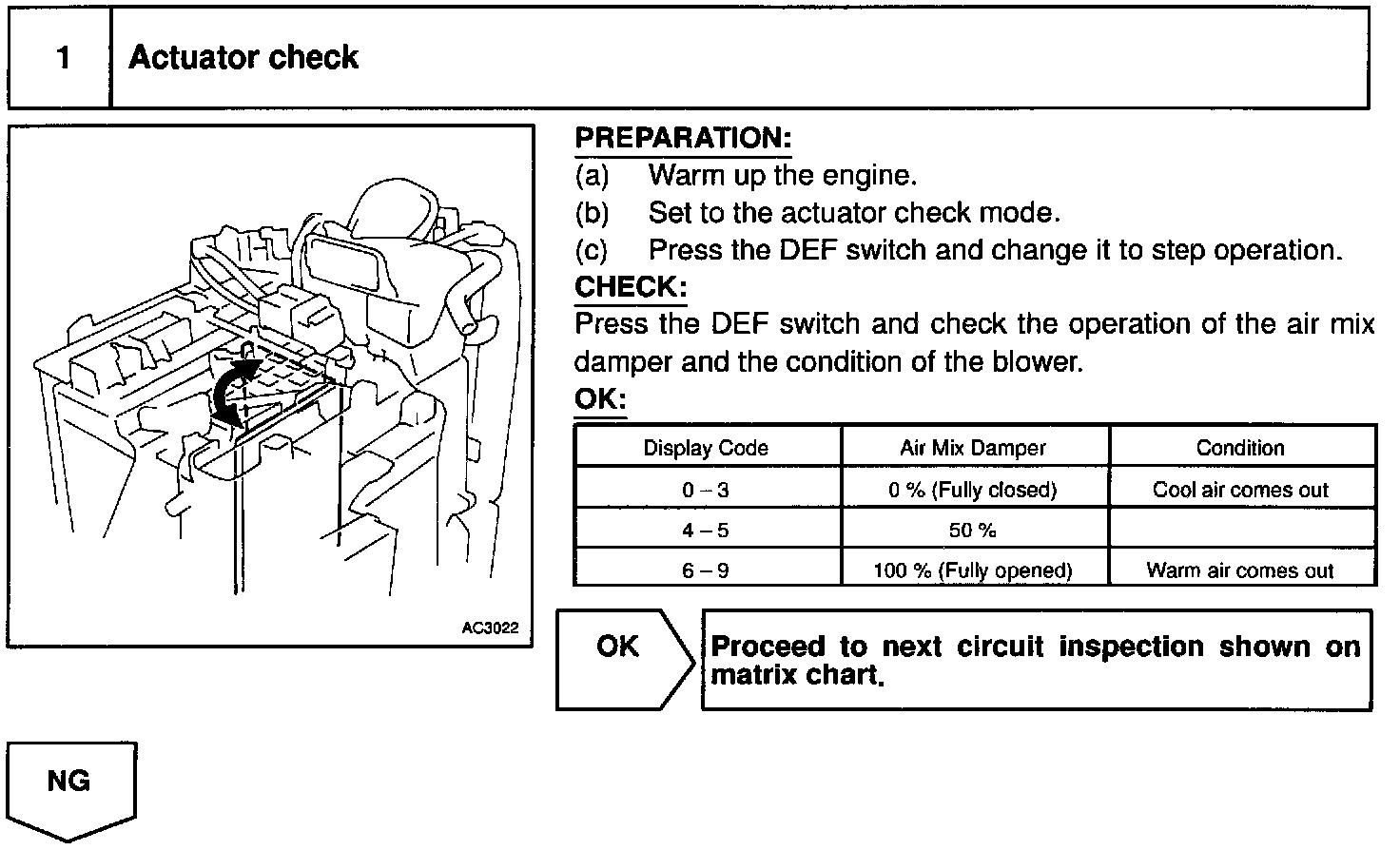

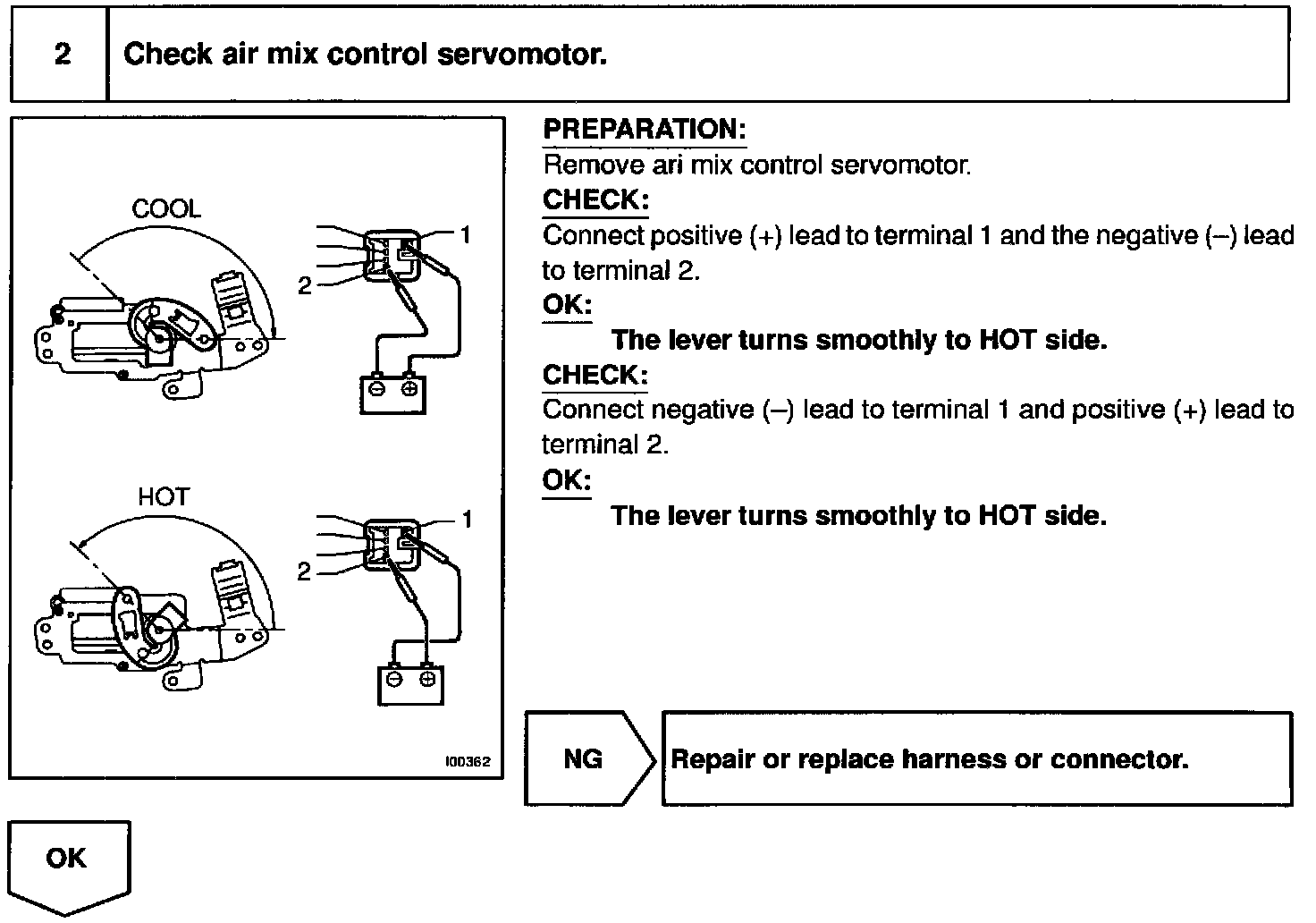

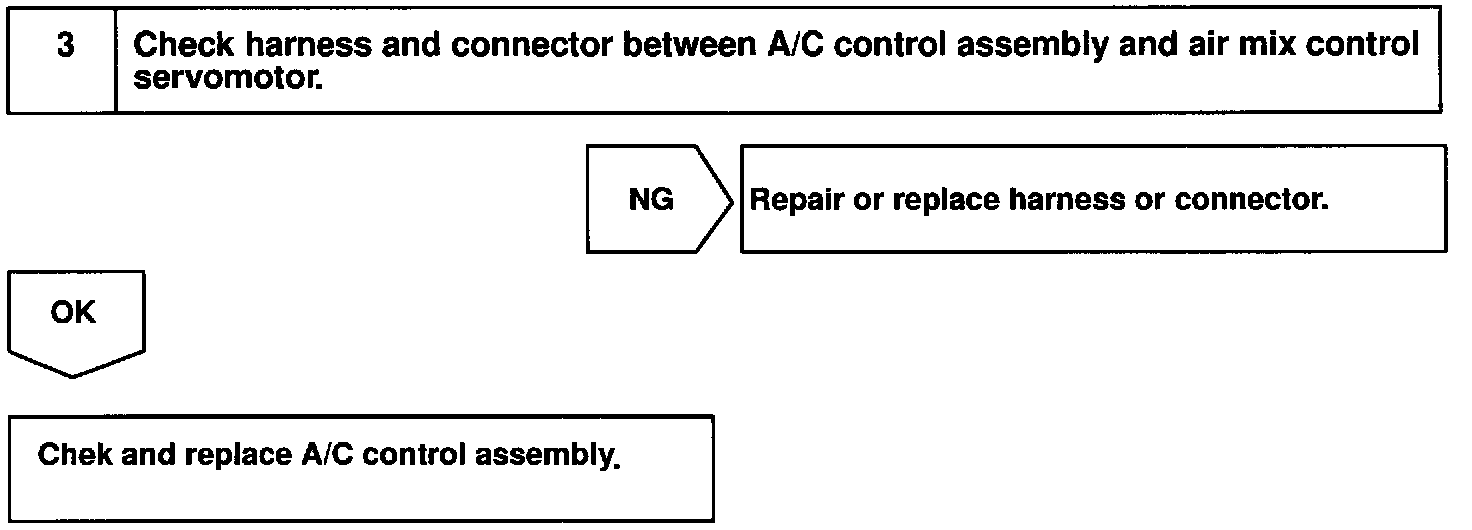

INSPECTION PROCEDURE
