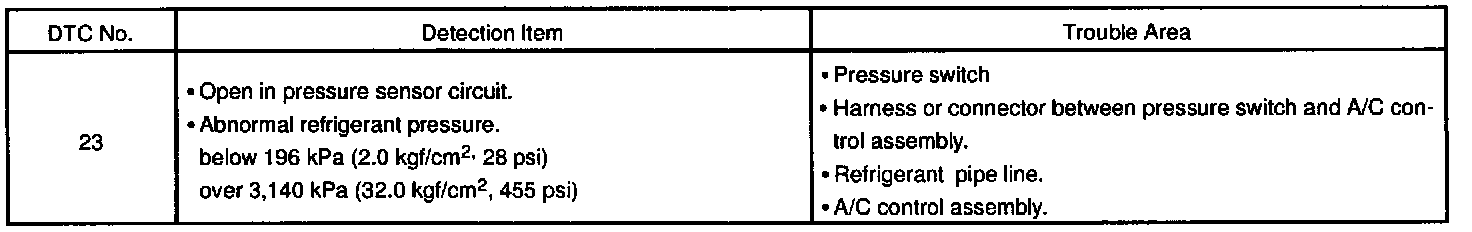

DTC 23

CIRCUIT DESCRIPTION
This pressure switch sends the appropriate signals to the A/C control assembly when the air conditioning refrigerant pressure drops too low or rises too high. When the A/C control assembly receives these signals, if outputs signals via the ECM to switch off the compressor relay and turns the magnetic clutch off.

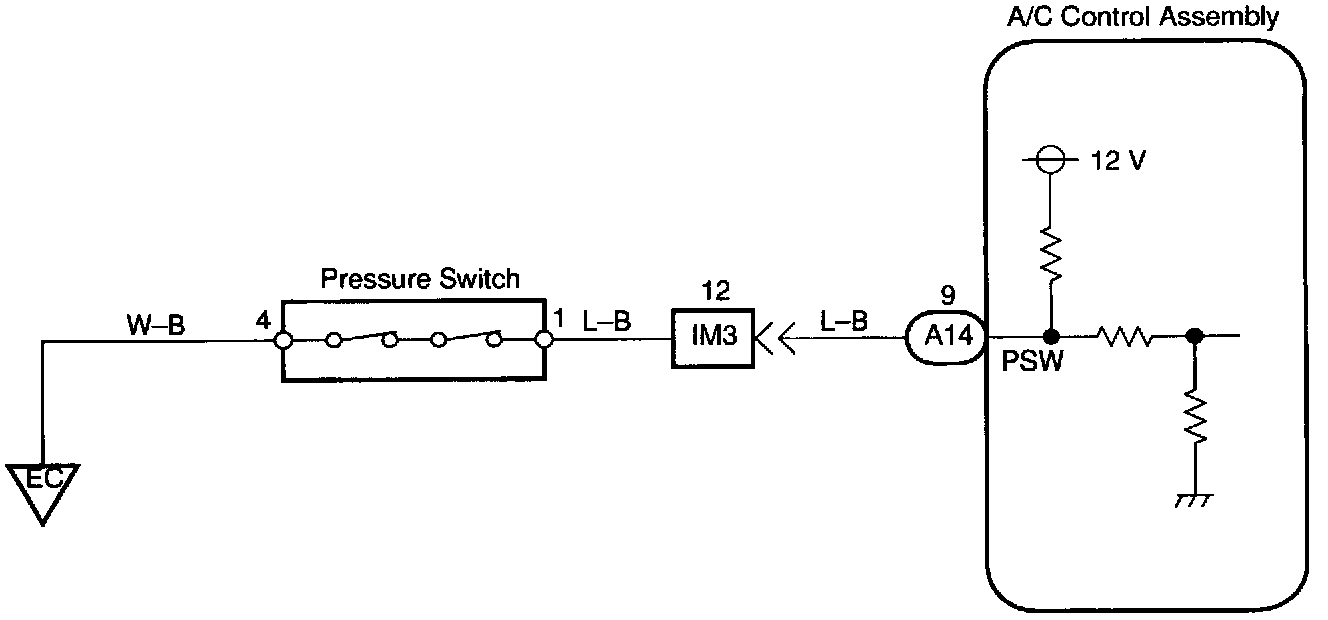

WIRING DIAGRAM

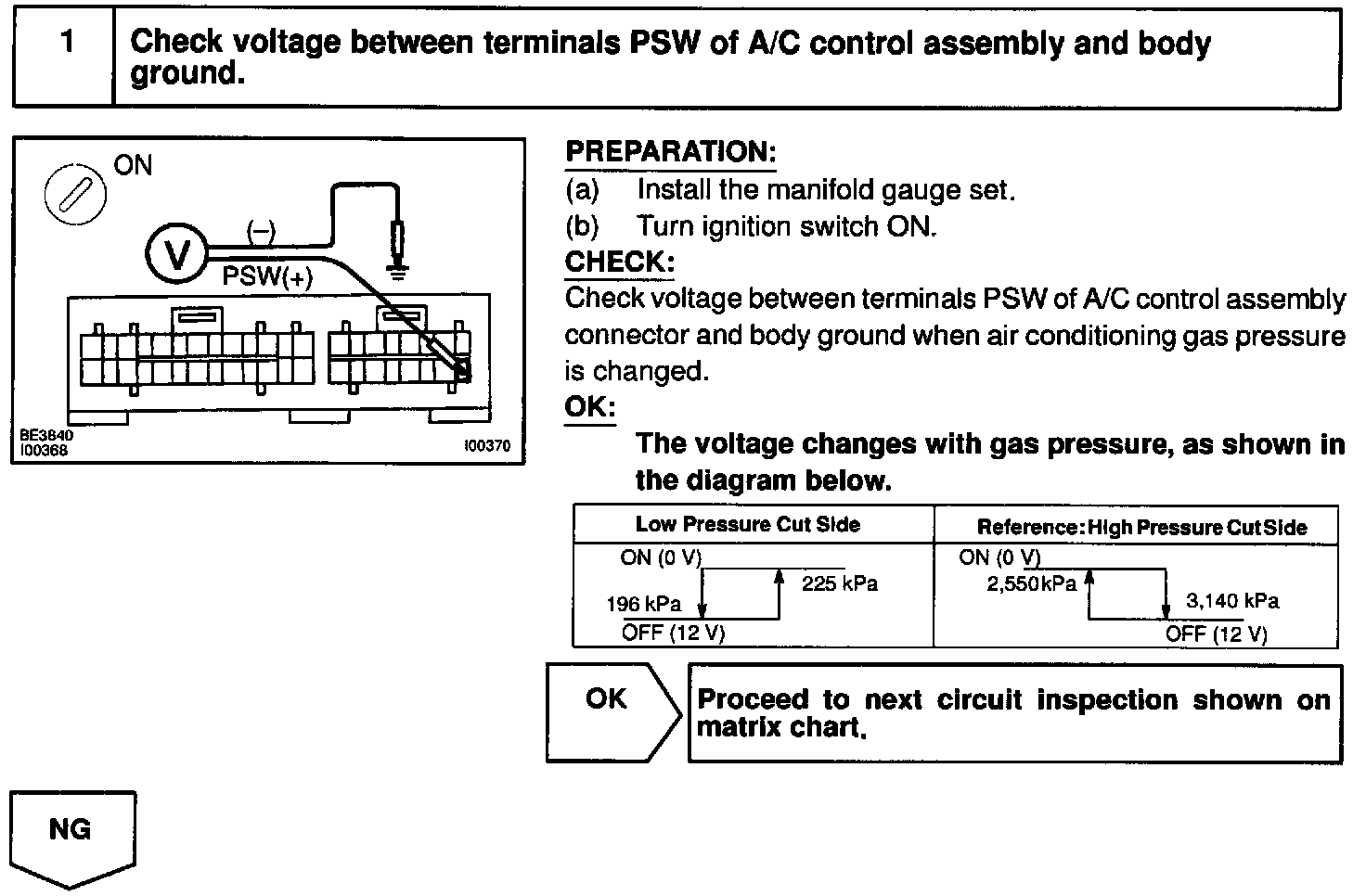

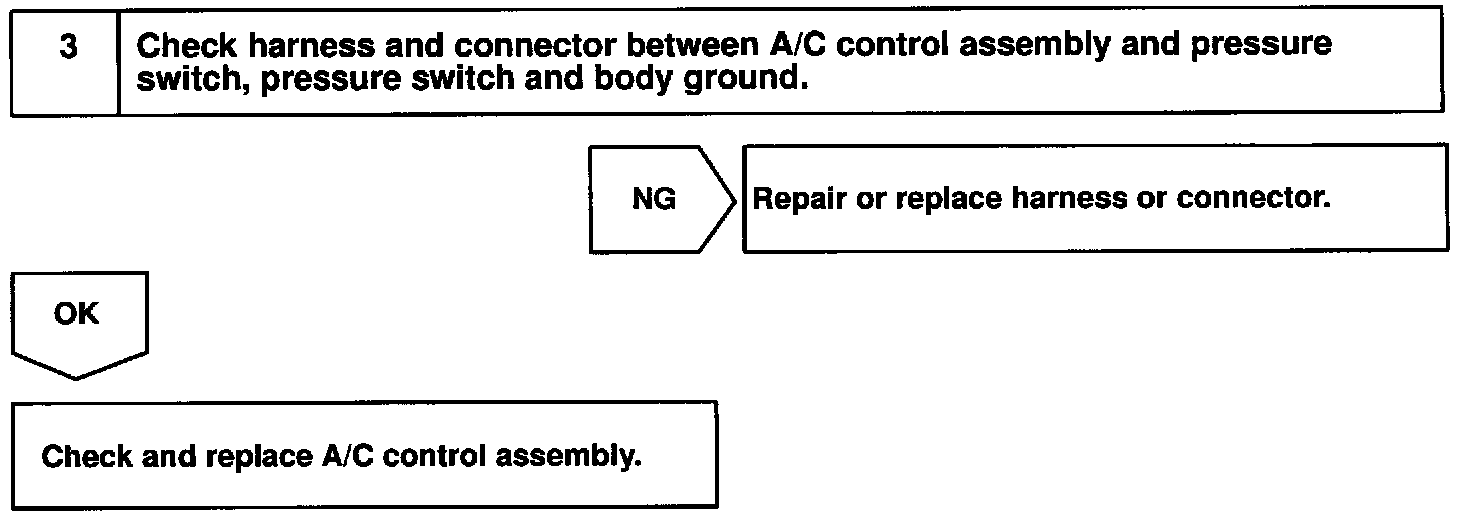

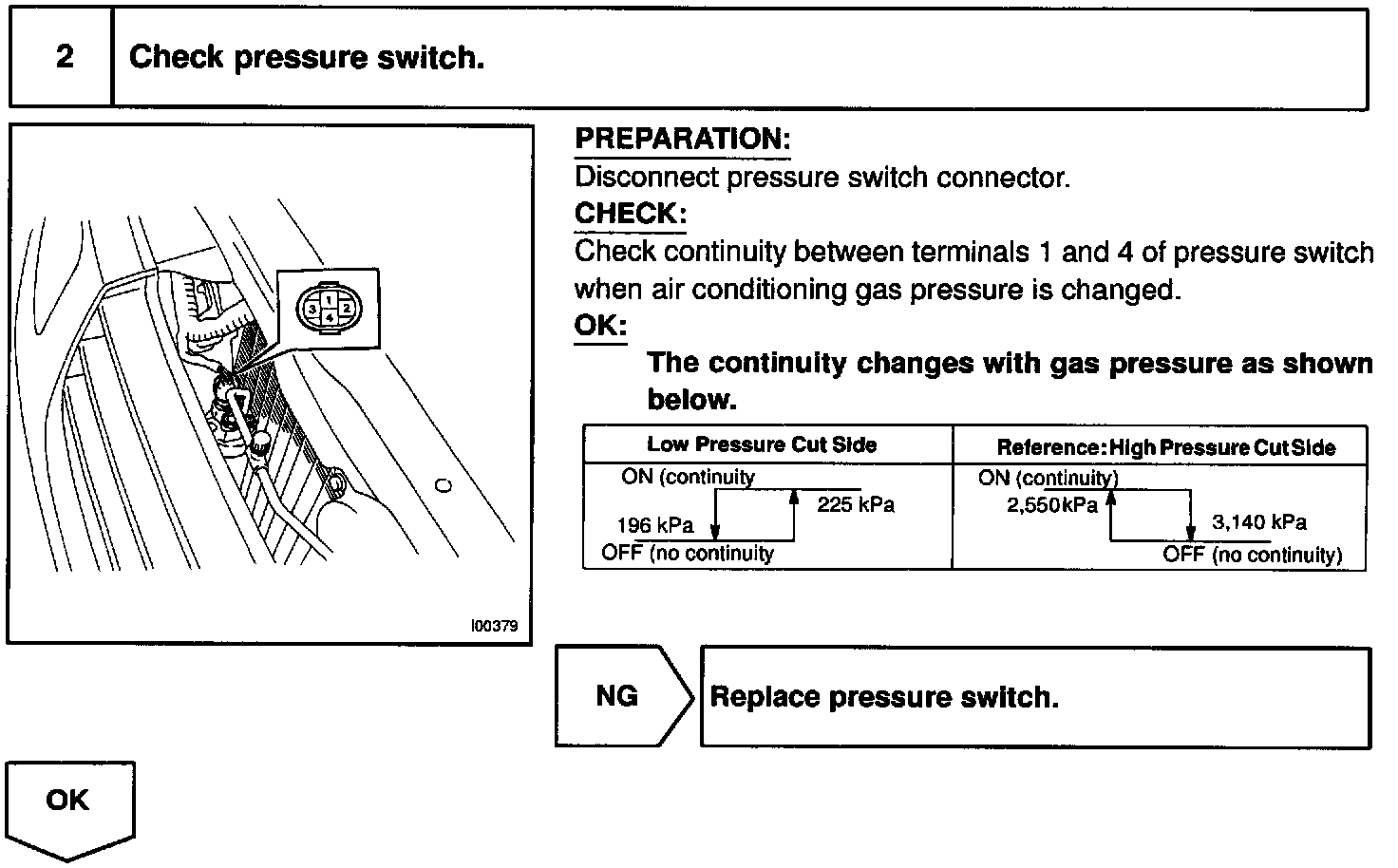

INSPECTION PROCEDURE
