DTC 21





















CIRCUIT DESCRIPTION

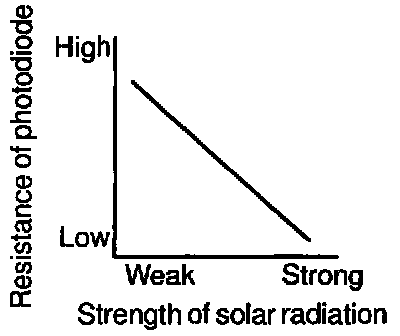

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

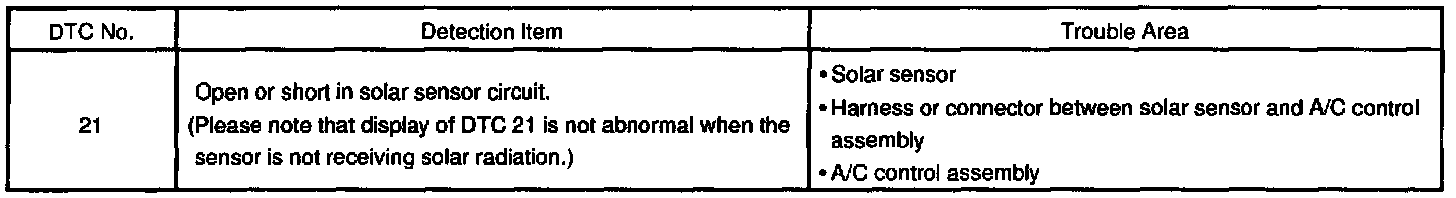

DETECTING CONDITION

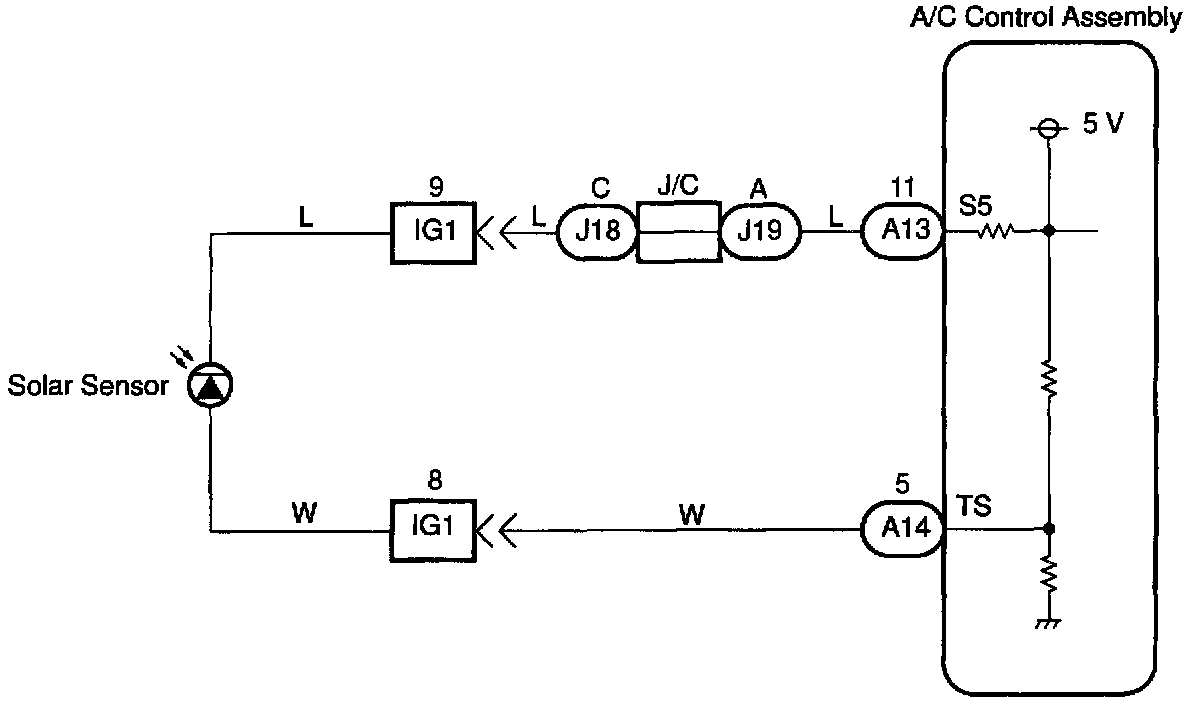

WIRING DIAGRAM

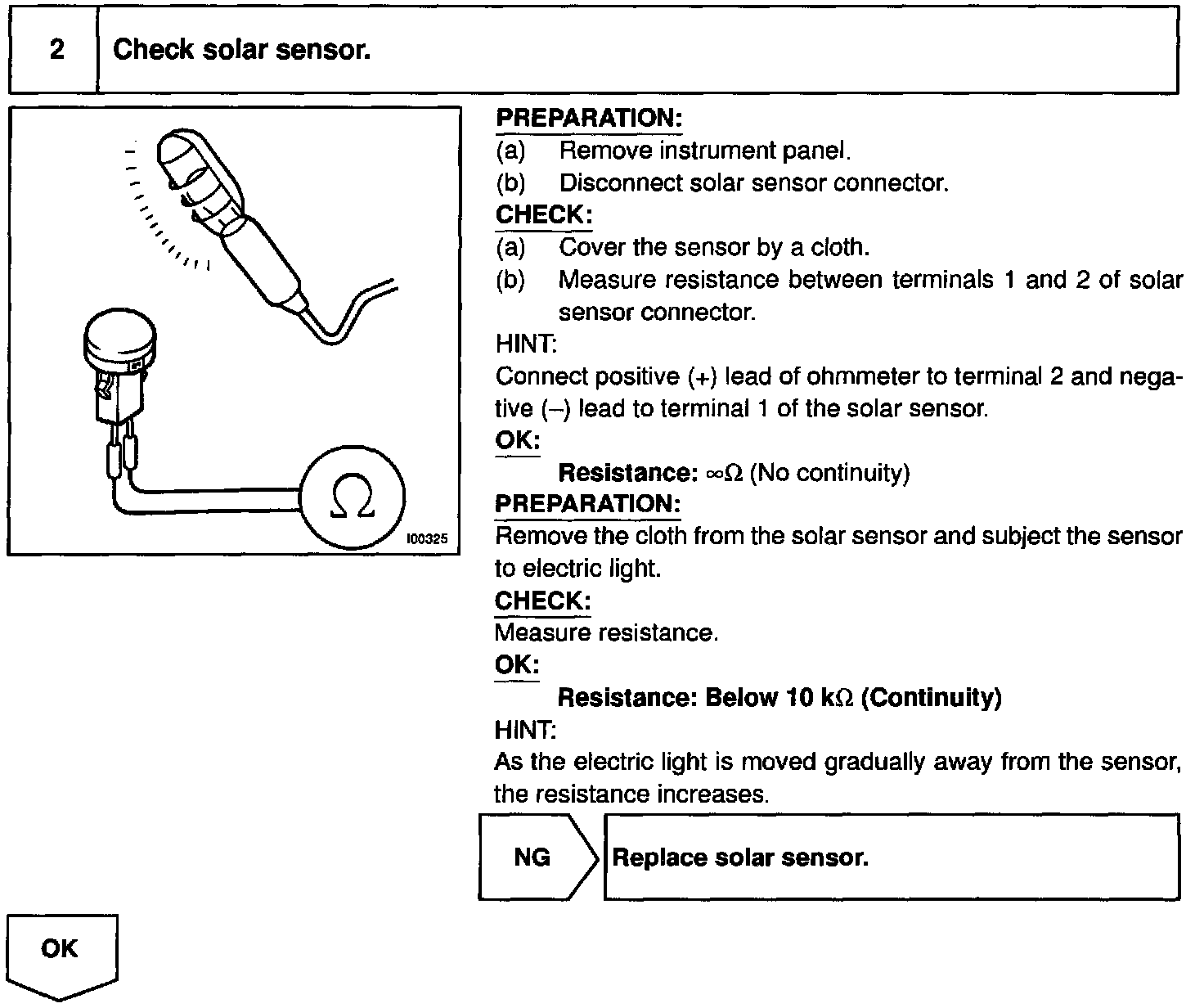

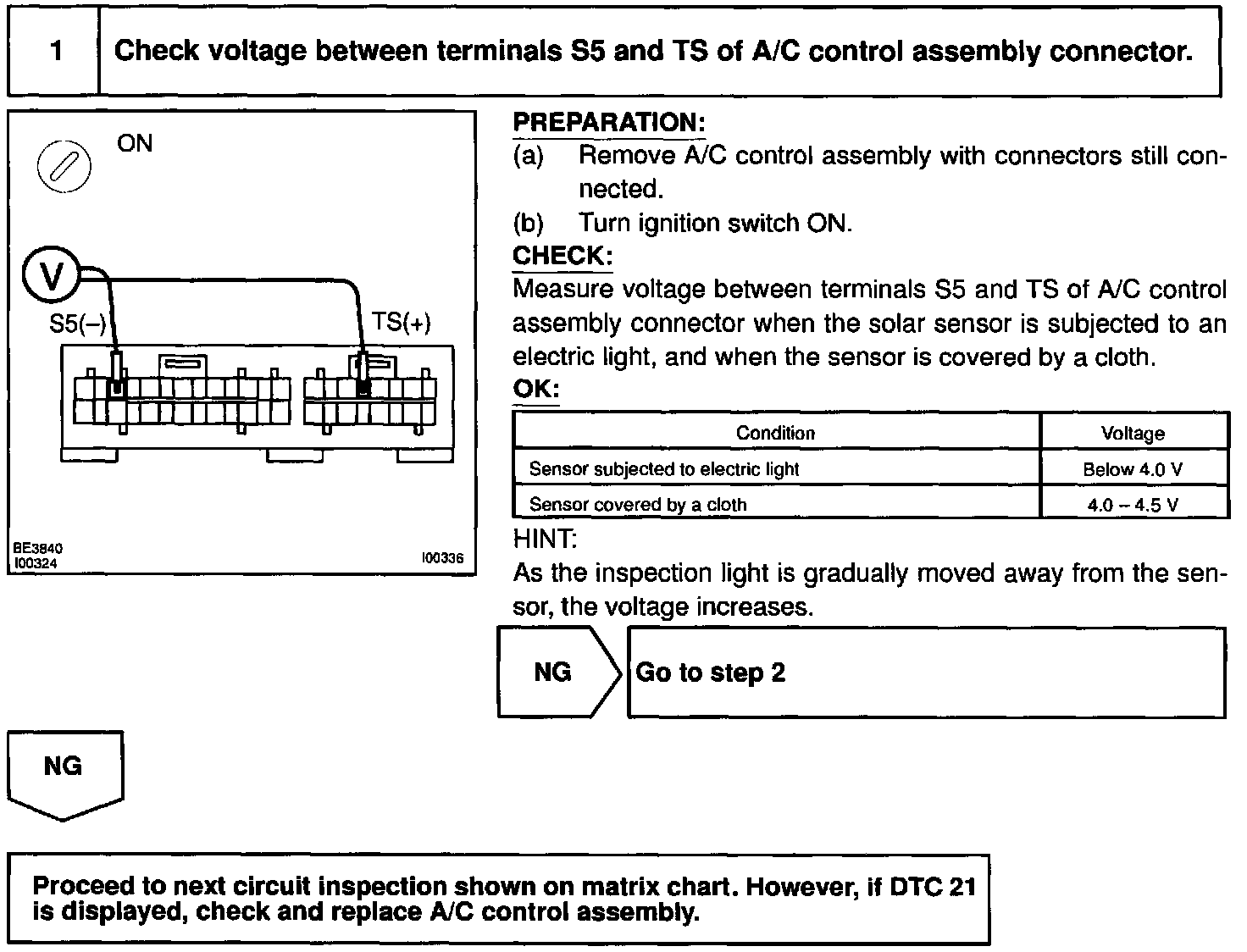

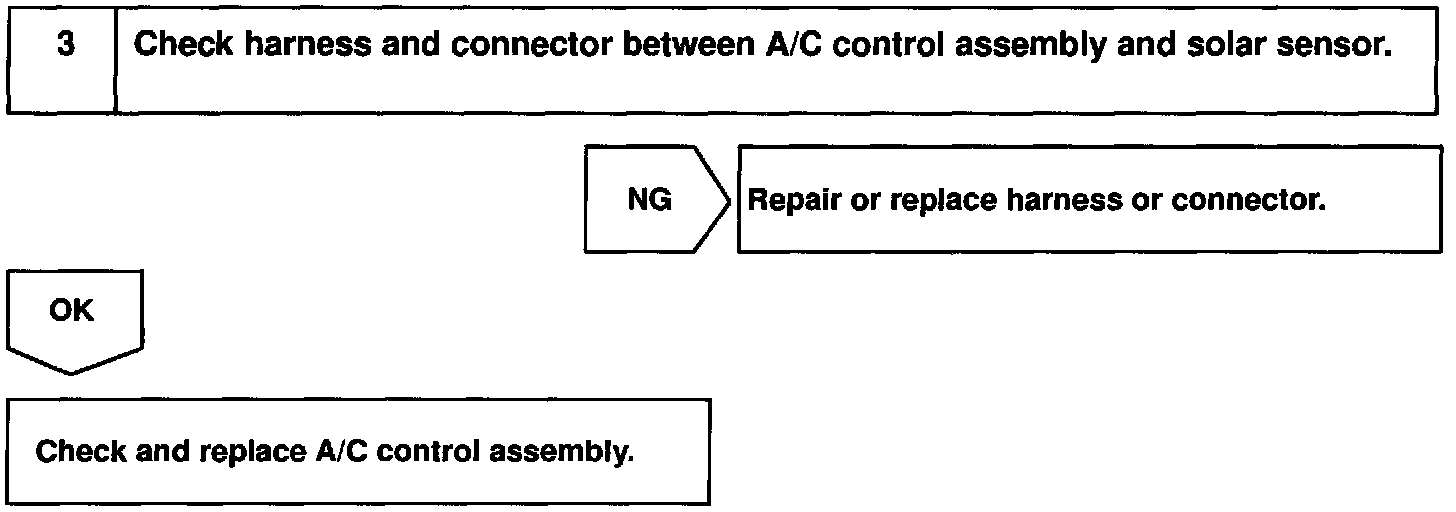

INSPECTION PROCEDURE
