DTC 11


















CIRCUIT DESCRIPTION
This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C control assembly.

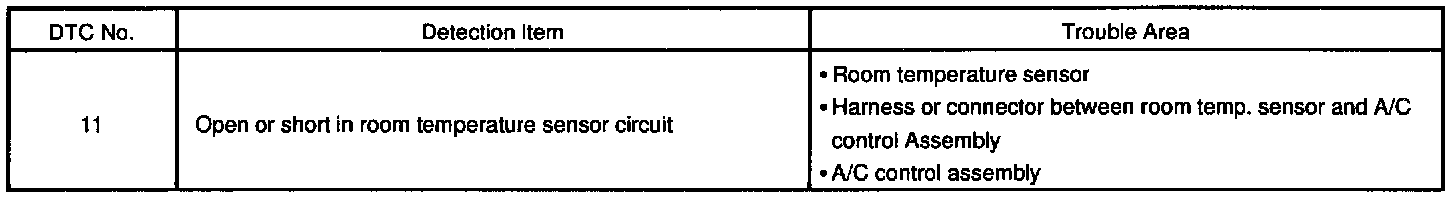

DETECTING CONDITION

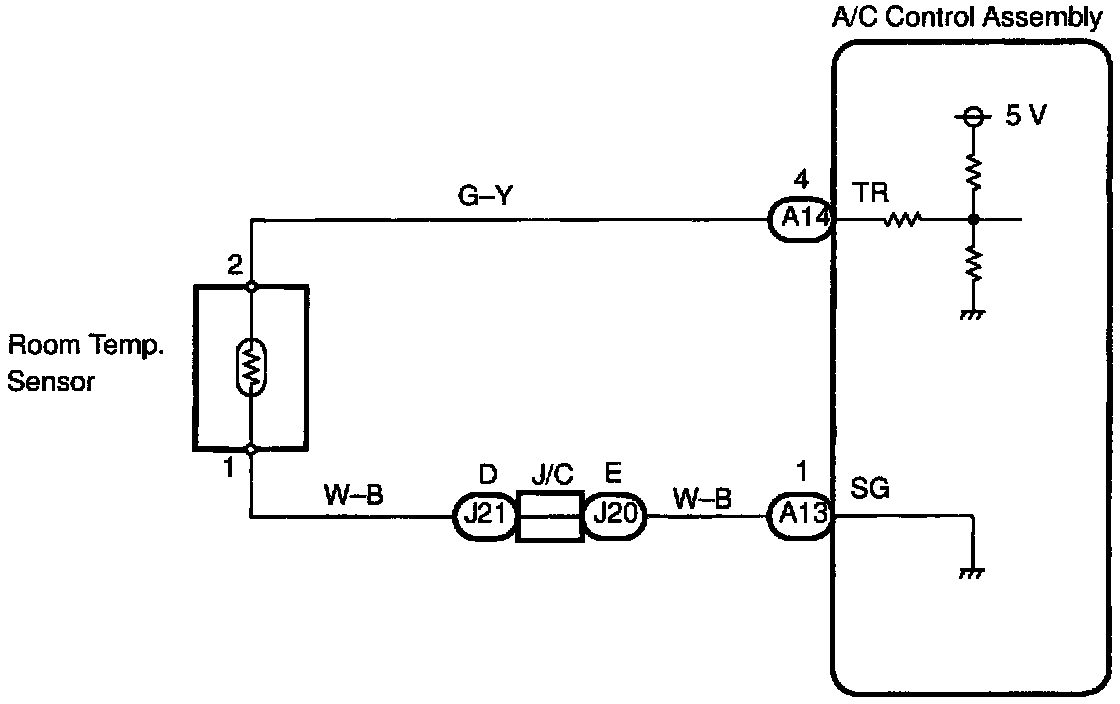

WIRING DIAGRAM

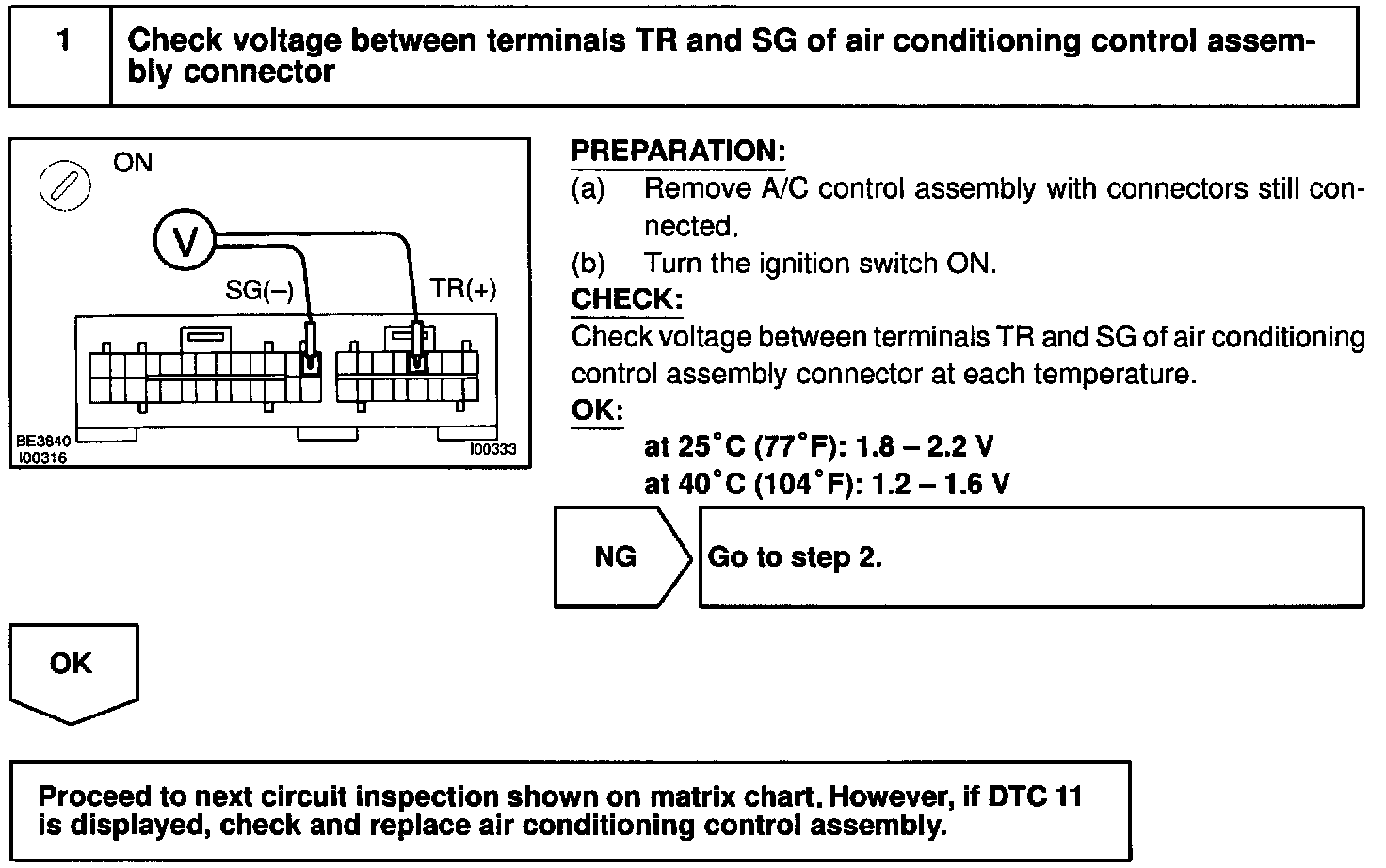

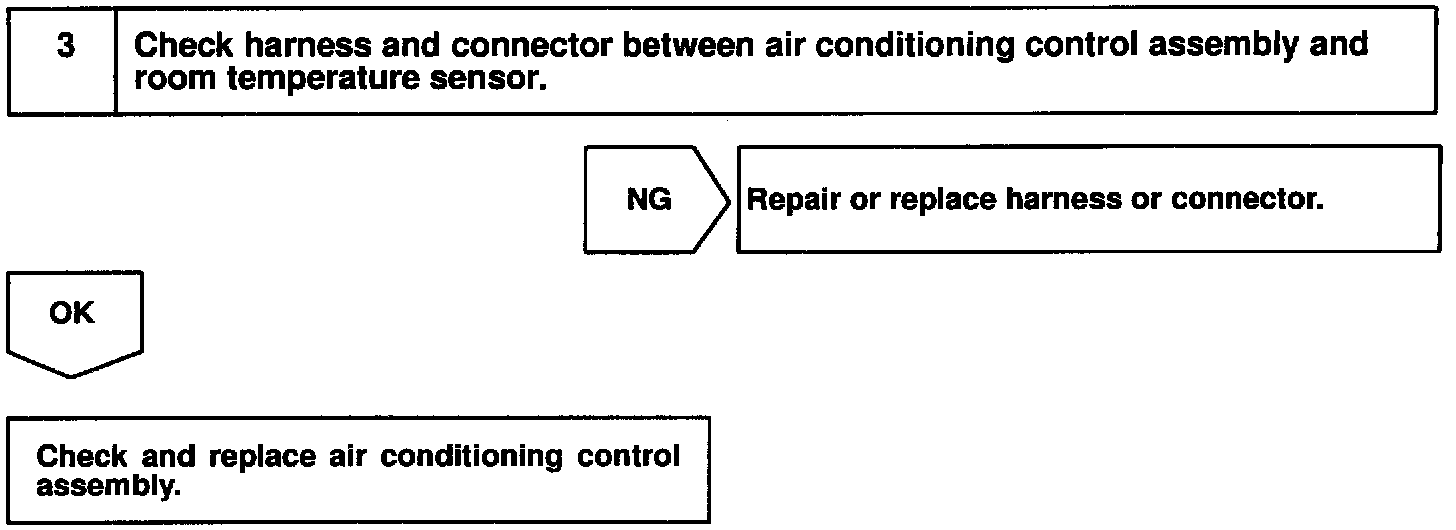

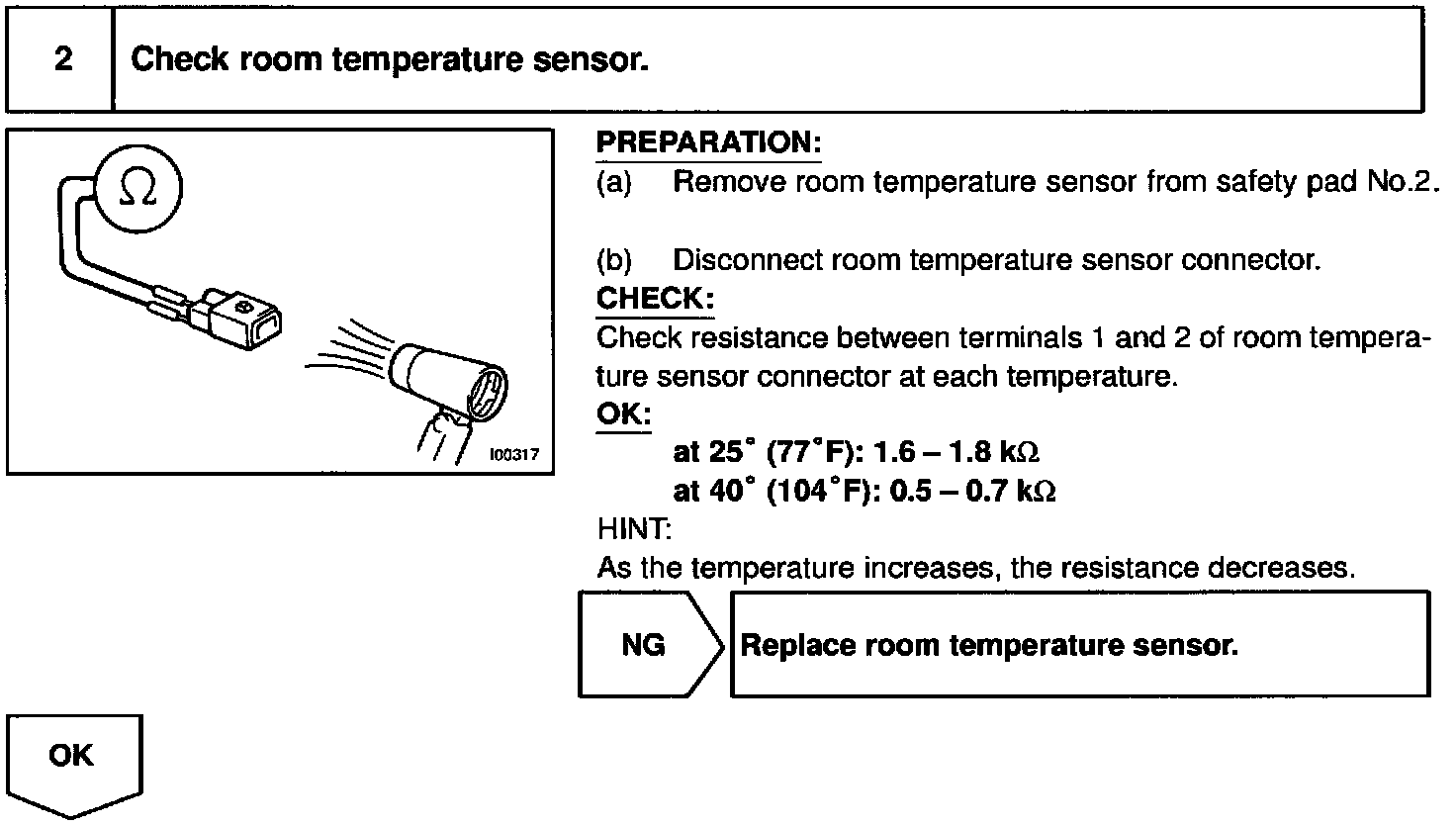

INSPECTION PROCEDURE
