DTC 51



CIRCUIT DESCRIPTION
When the idle switch in turned ON, a signal is sent to the ECU. The ECU uses this signal to correct the discrepancy between the throttle valve position and the actuator position sensor value to enable accurate cruise control at the set speed. If the idle switch is malfunctioning, problem symptoms also occur in the engine, so also inspect the engine.

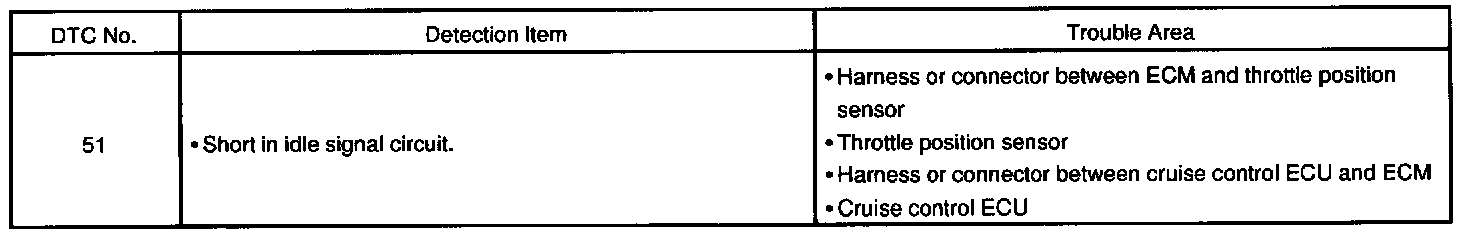

DETECTING CONDITION

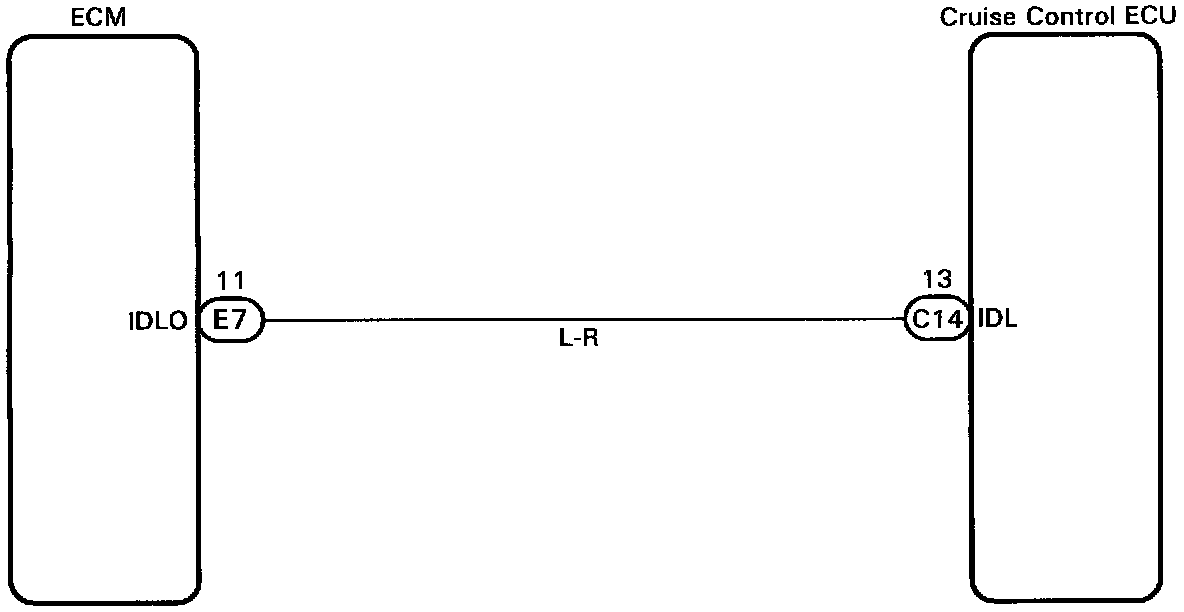

WIRING DIAGRAM

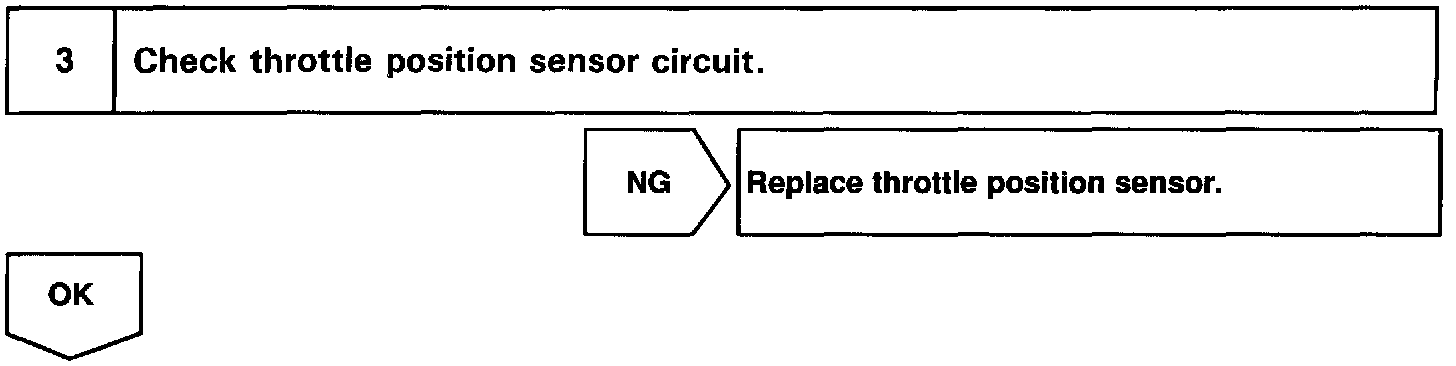

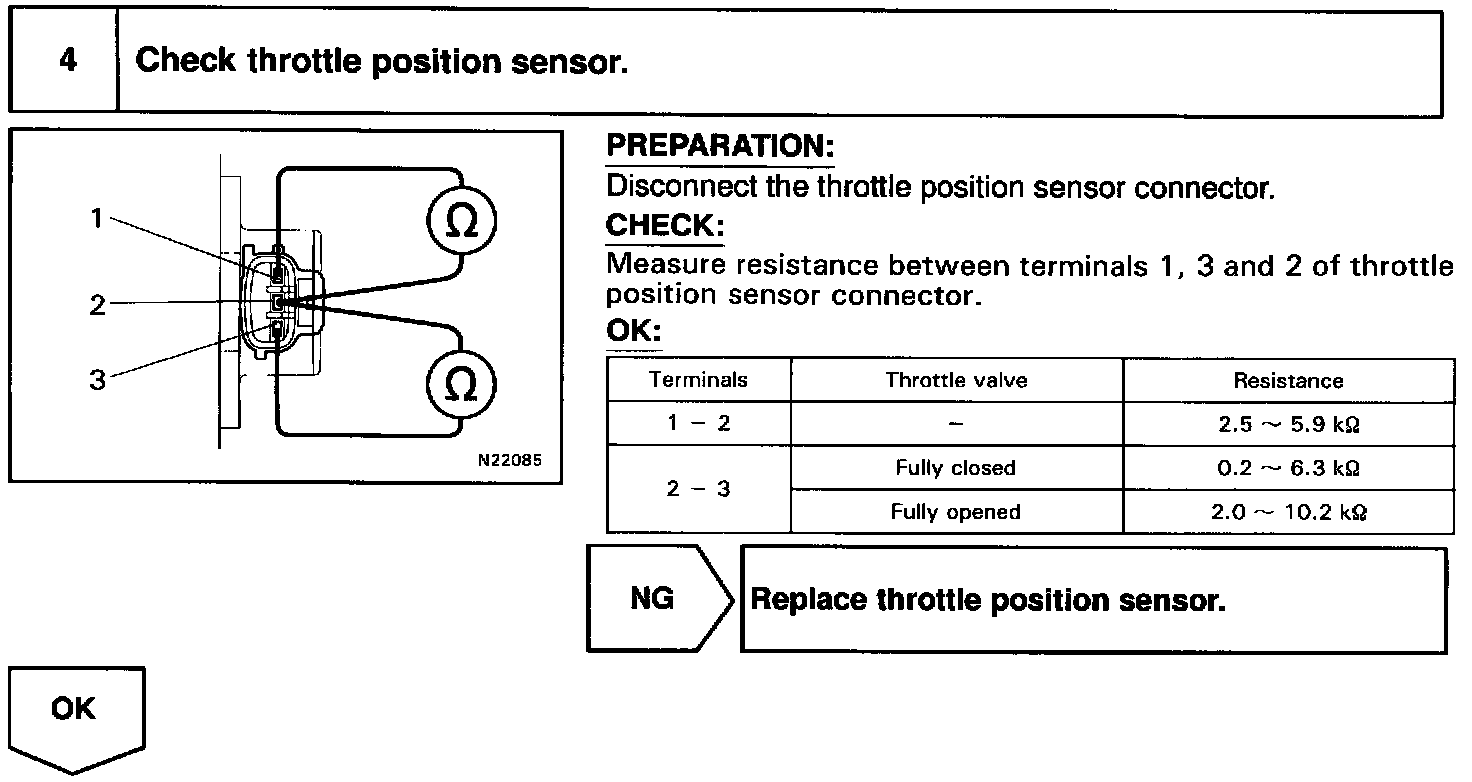

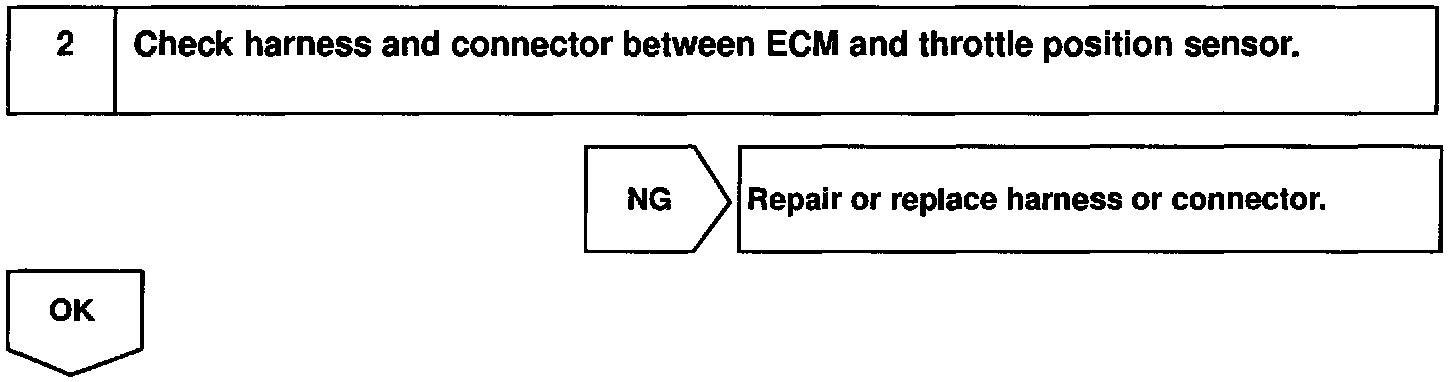

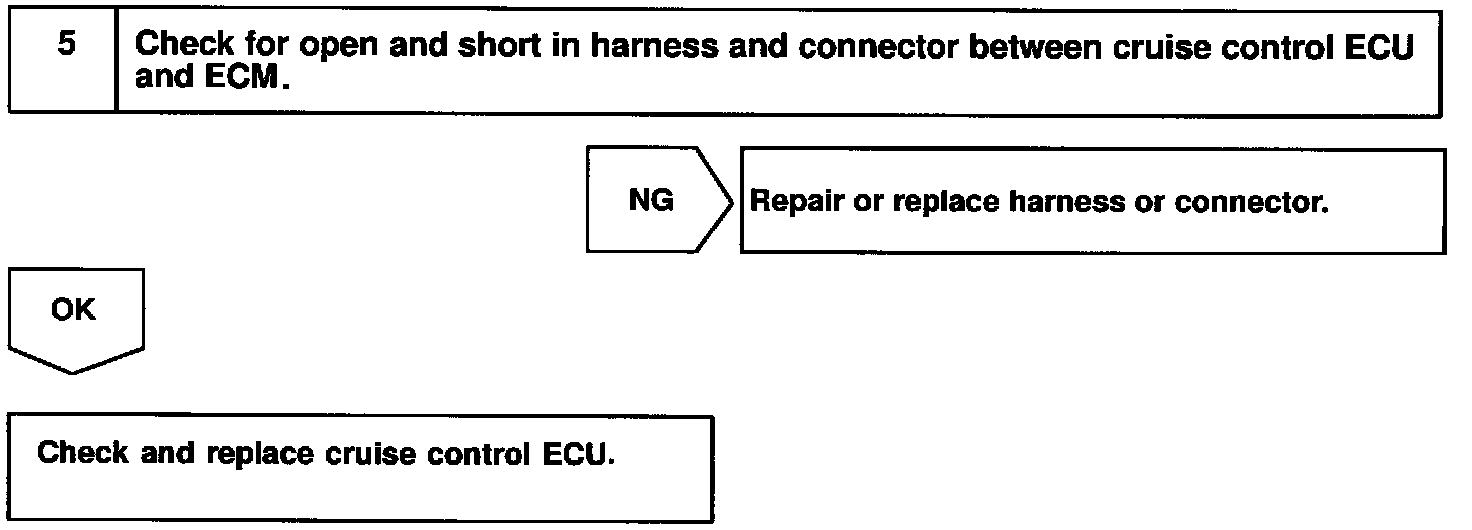

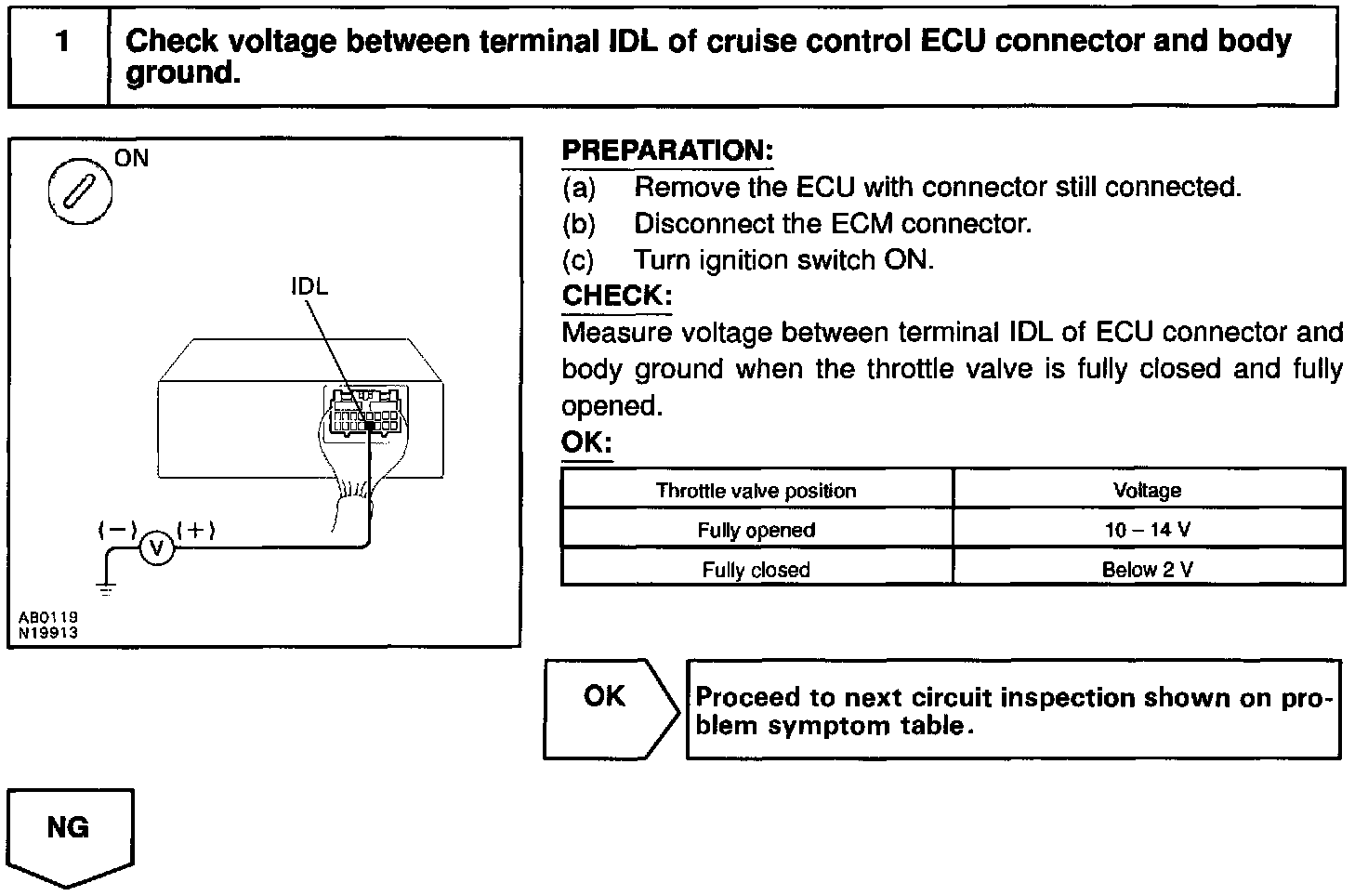

INSPECTION PROCEDURE
