Home >> Lexus >> 1997 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Cruise Control System >> DTC 32

DTC 32



CIRCUIT DESCRIPTION
This circuit carries the SET/COAST RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.





DETECTING CONDITION





WIRING DIAGRAM

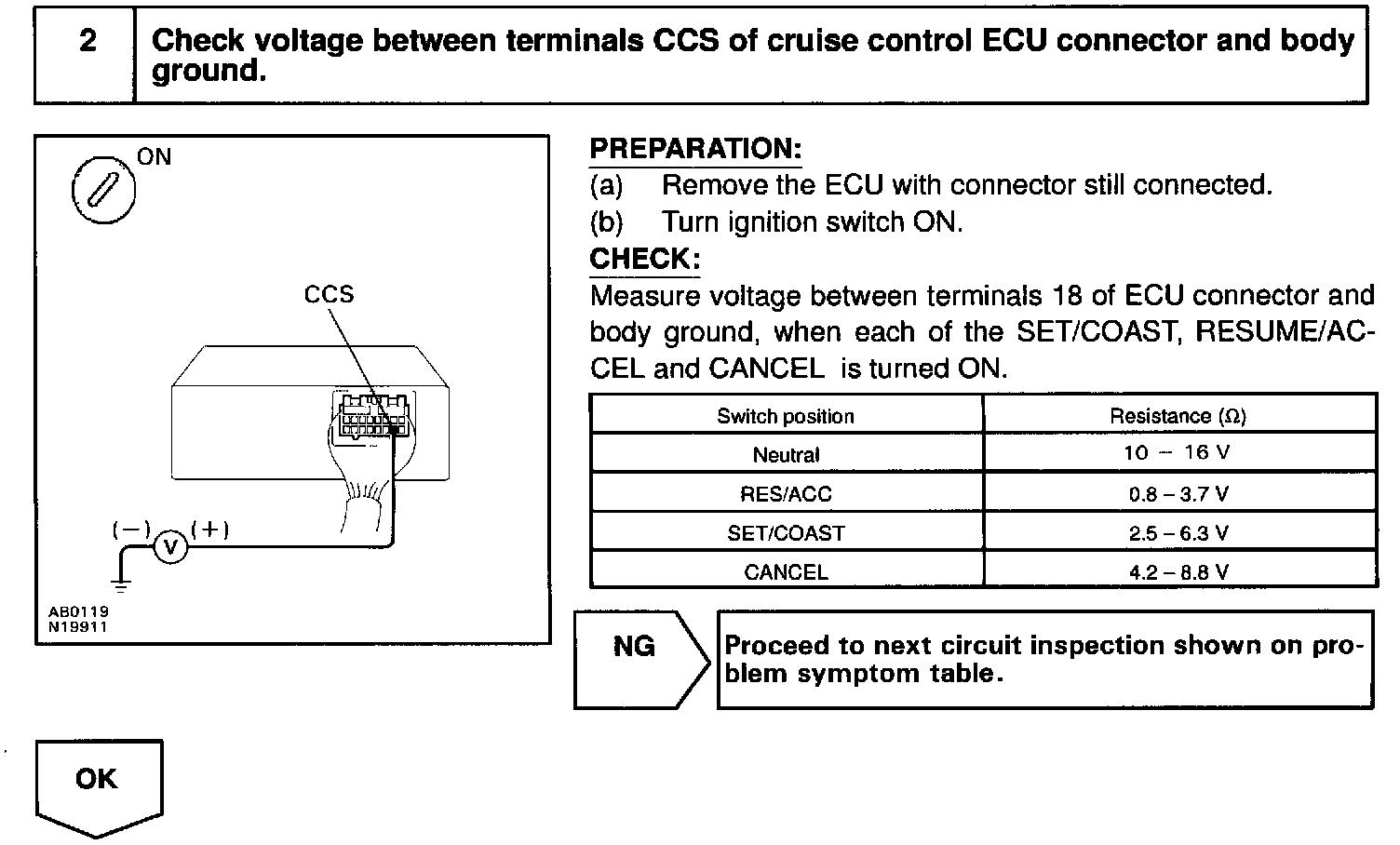

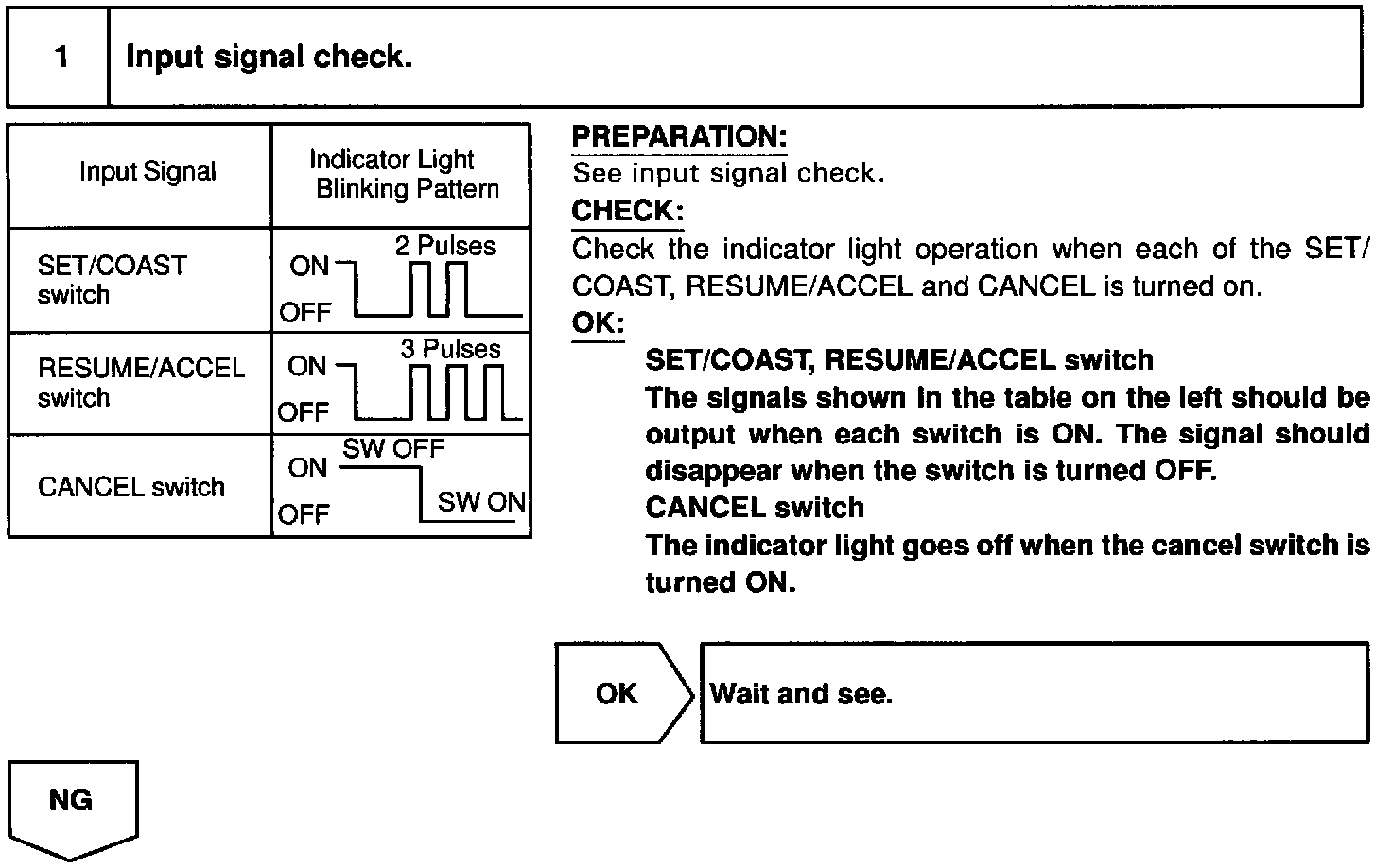

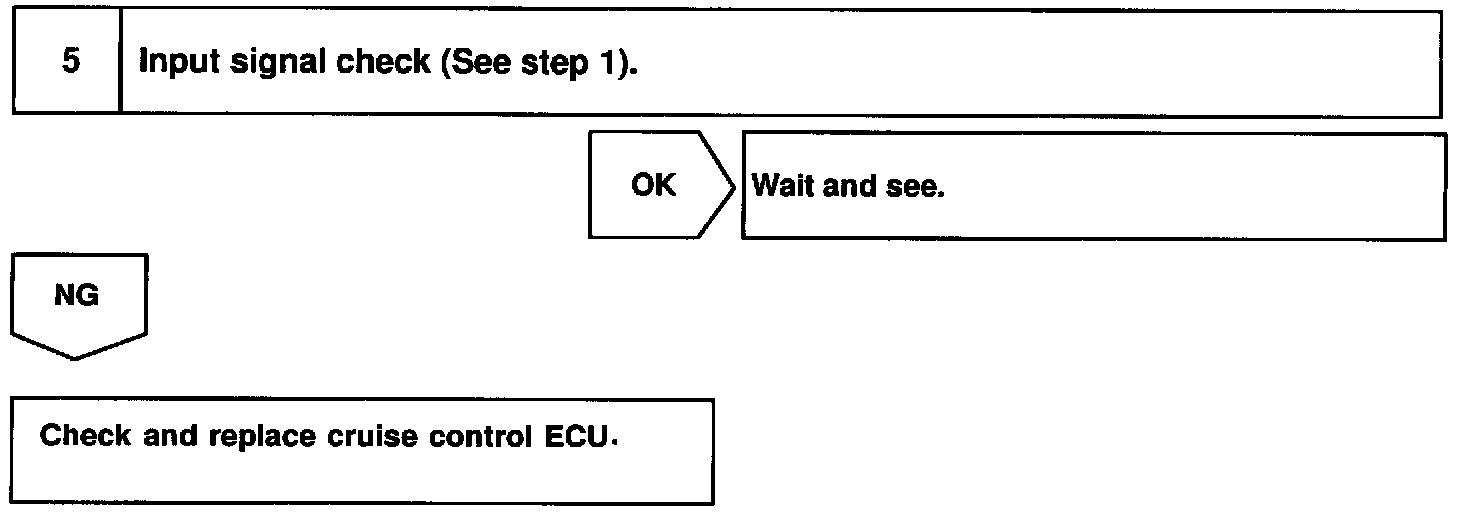

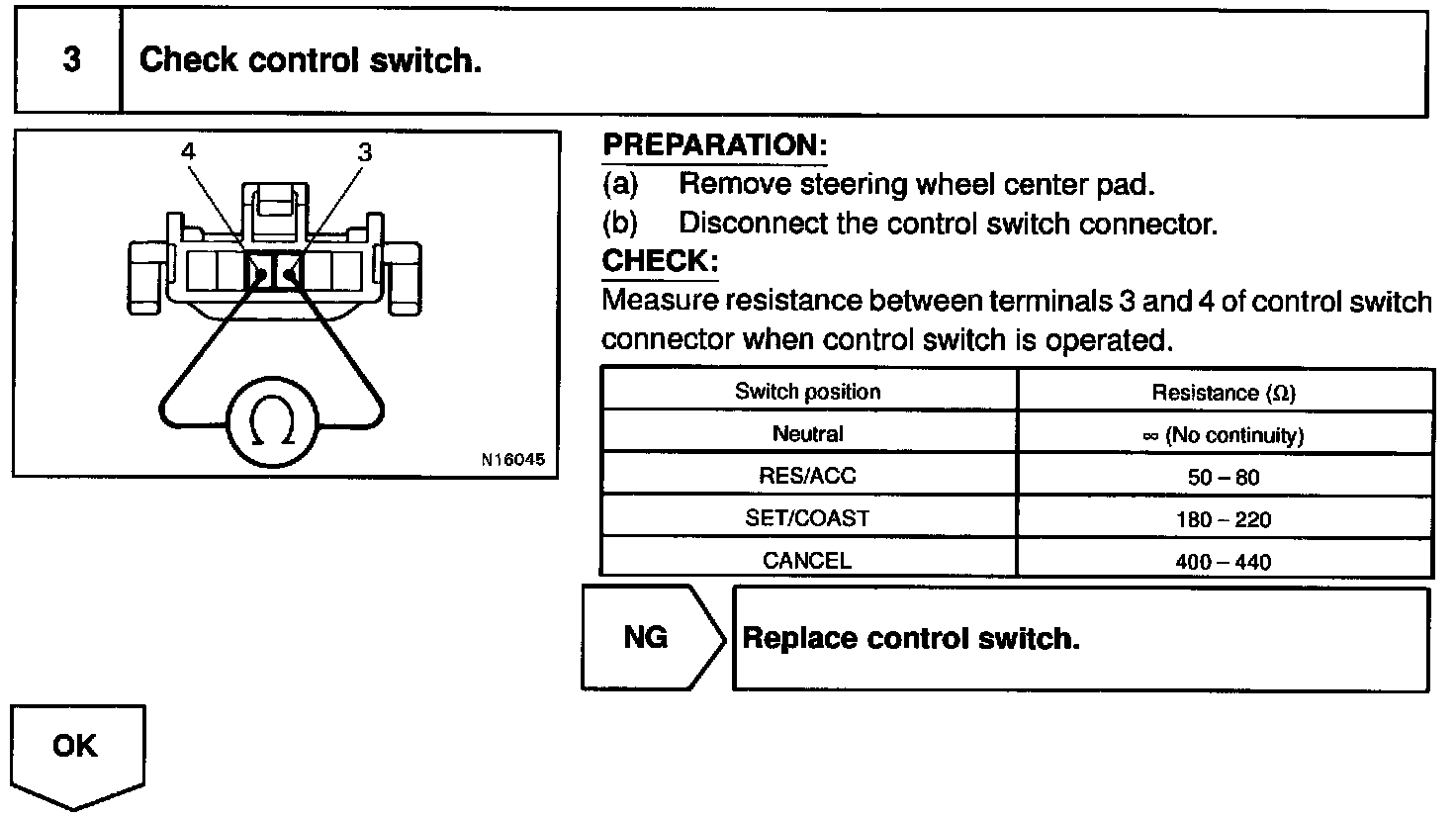

INSPECTION PROCEDURE
