DTC 53

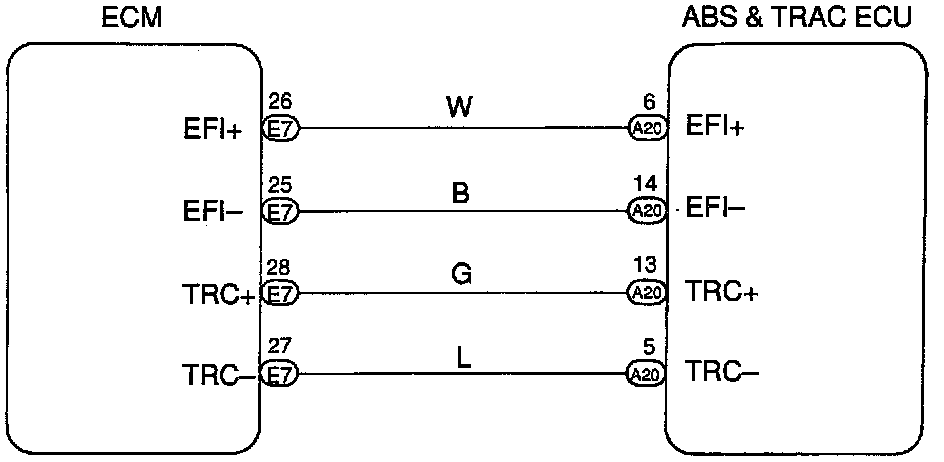

ECM Communication Circuit Malfunction Wiring Diagram:

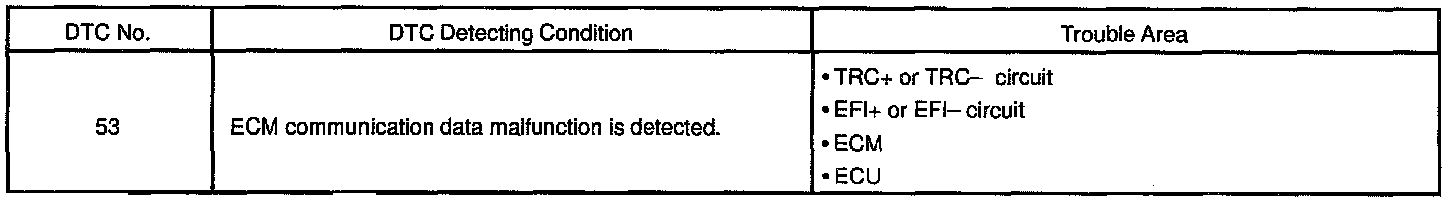

Code 53: ECM Communication Circuit Malfunction DTC Chart:

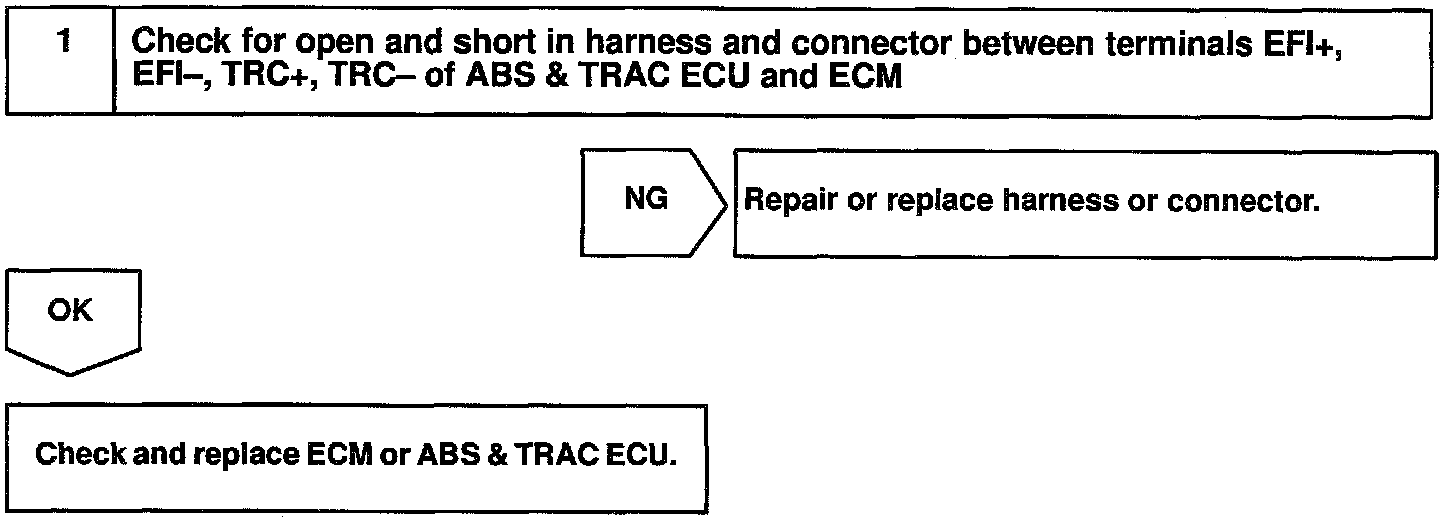

ECM Communication Circuit Malfunction Inspection Procedure Part 1 Of 1:
