DTC 44

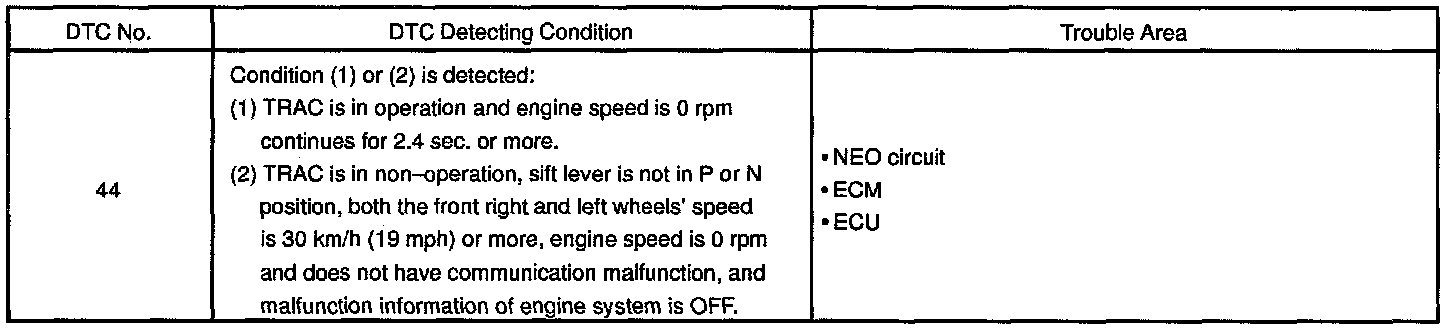

Code 44: NE Signal Circuit DTC Chart:

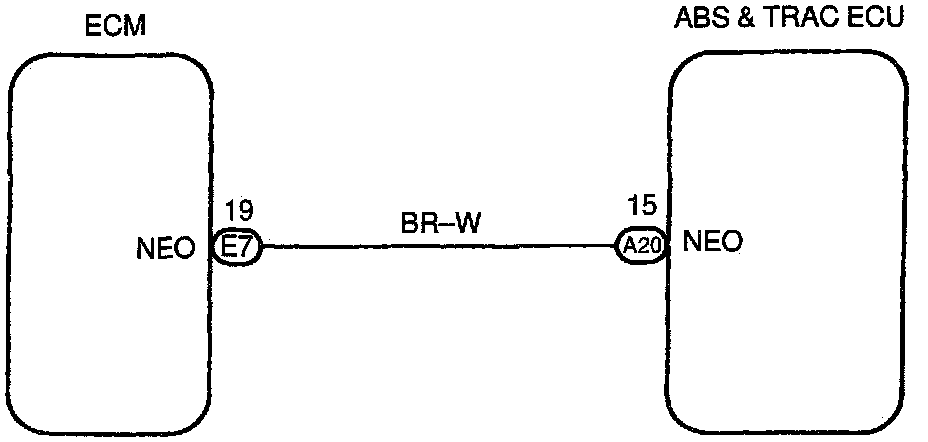

NE Signal Circuit Wiring Diagram:

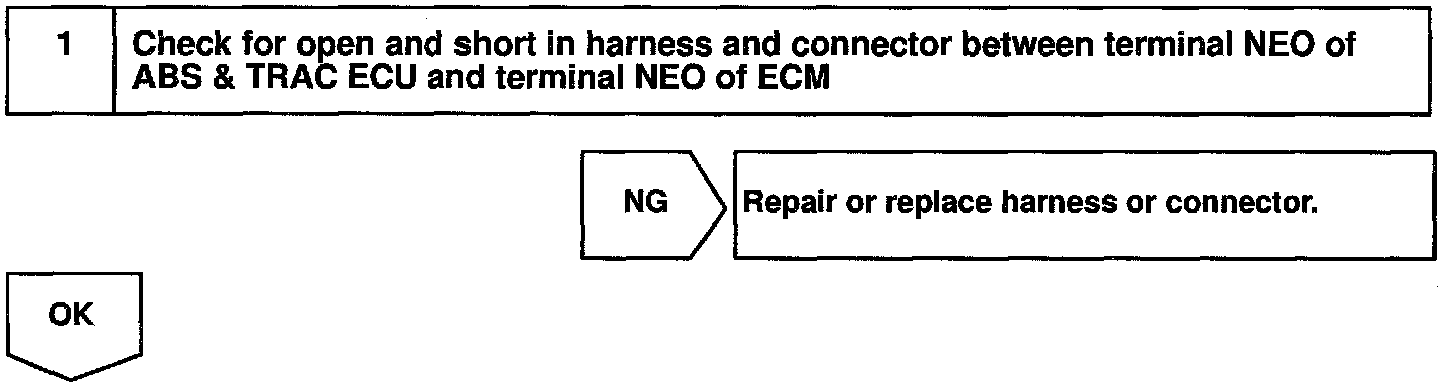

NE Signal Circuit Inspection Procedure Part 1 Of 2:

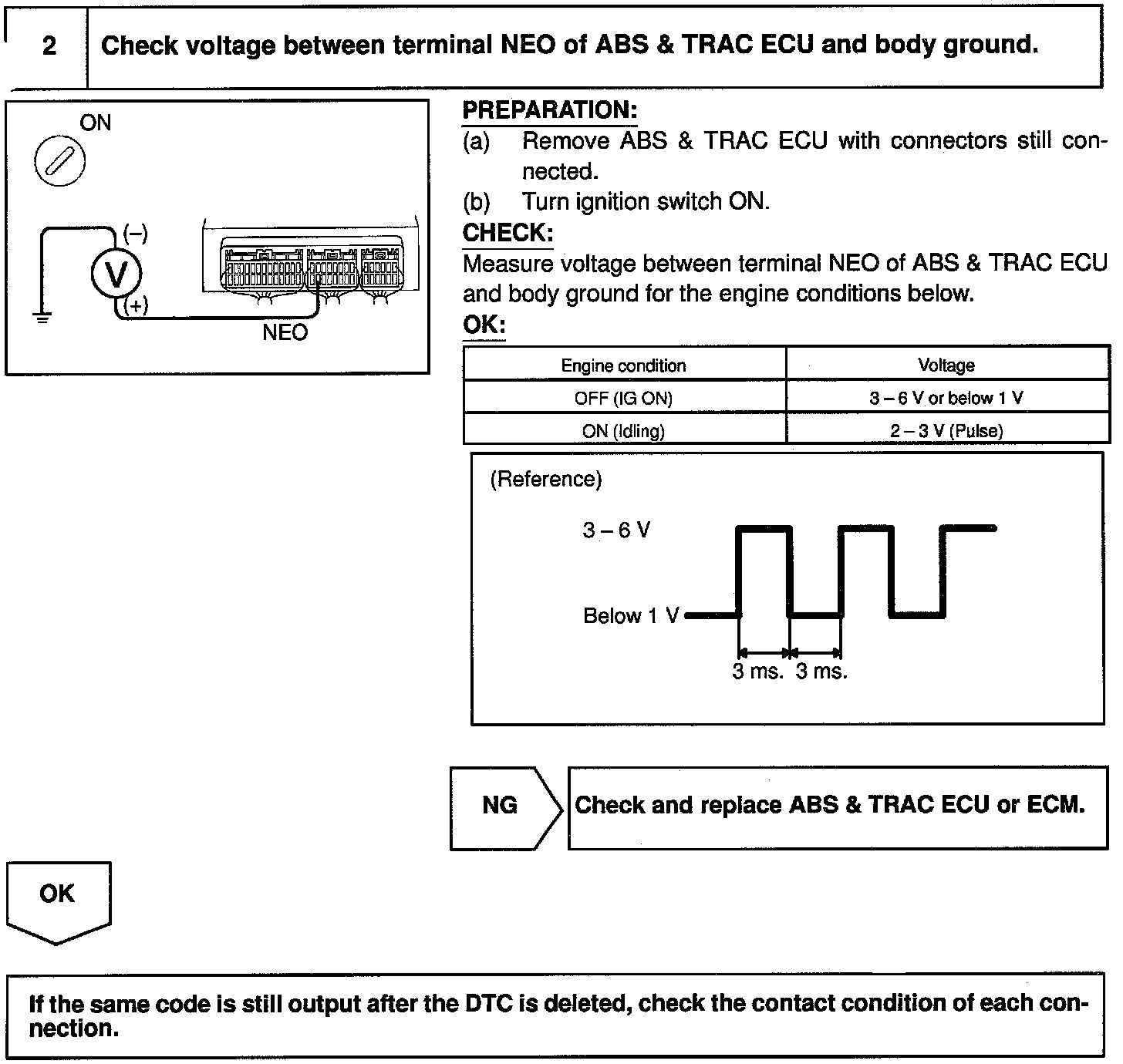

NE Signal Circuit Inspection Procedure Part 2 Of 2:

CIRCUIT DESCRIPTION
The ABS & TRAC ECU receives engine speed signals (NE signals) from the ECM.
