Home >> Lexus >> 1997 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> ABS w/ Traction Control (TRAC) >> DTC 43

DTC 43

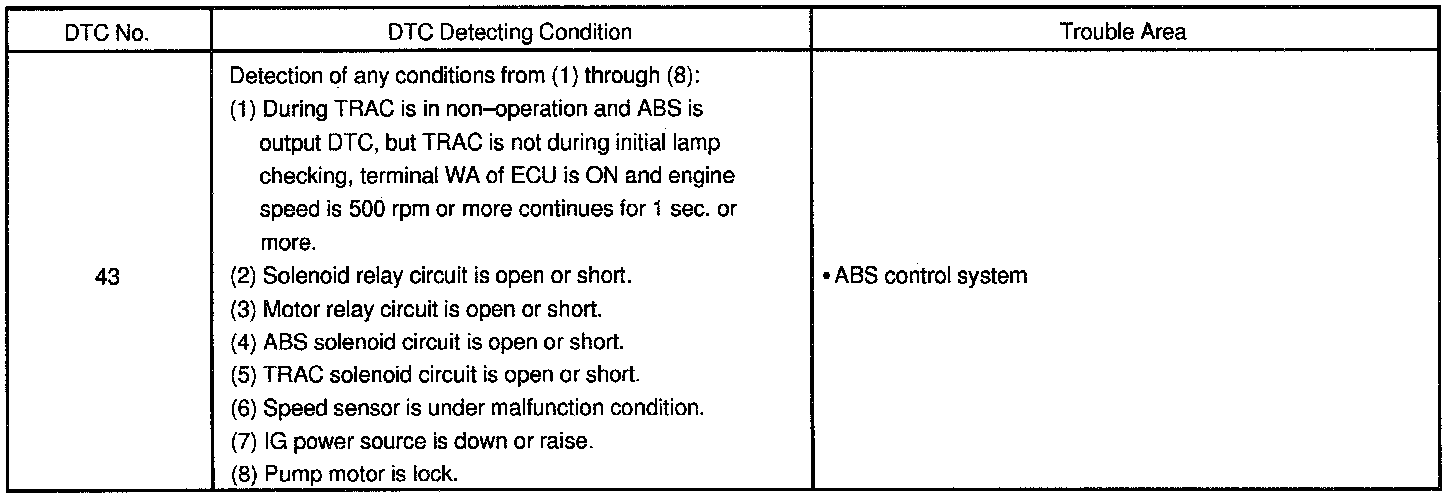

Code 43: ABS Control System Malfunction DTC Chart (For TRAC):

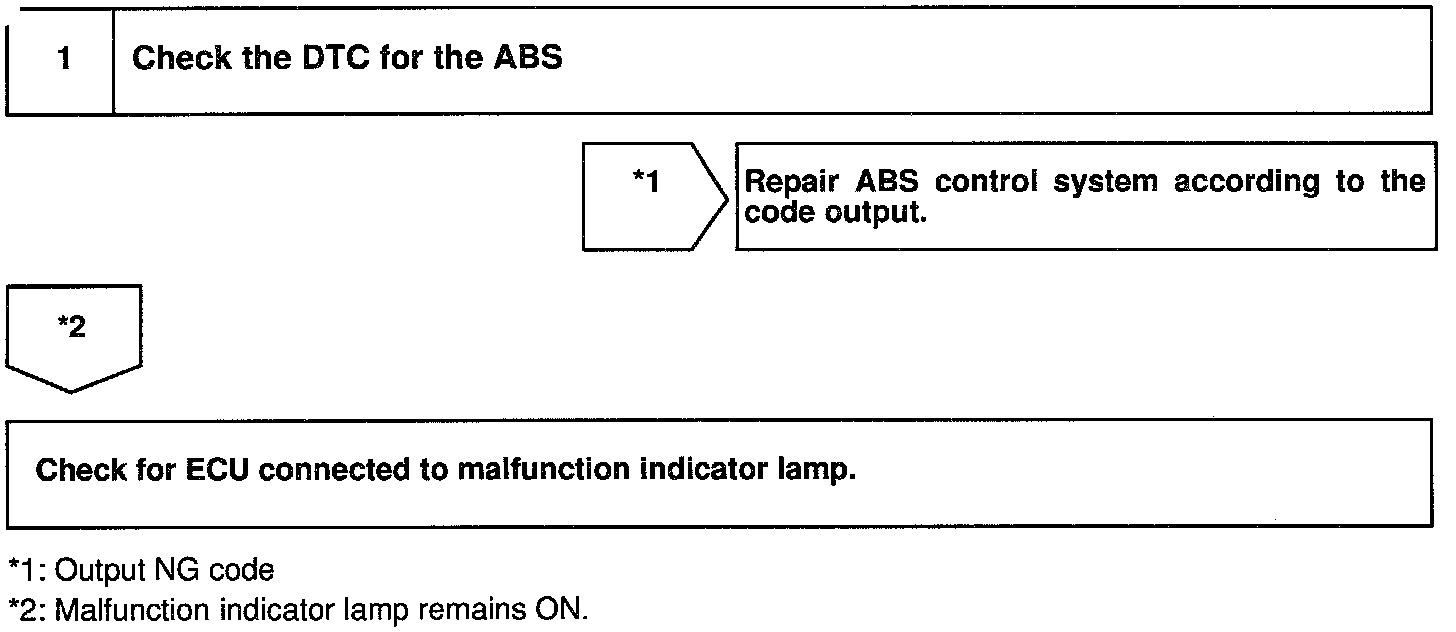

ABS Control System Malfunction Inspection Procedure Part 1 Of 1:






CIRCUIT DESCRIPTION
