Suspension Control ( Automatic - Electronic Level )

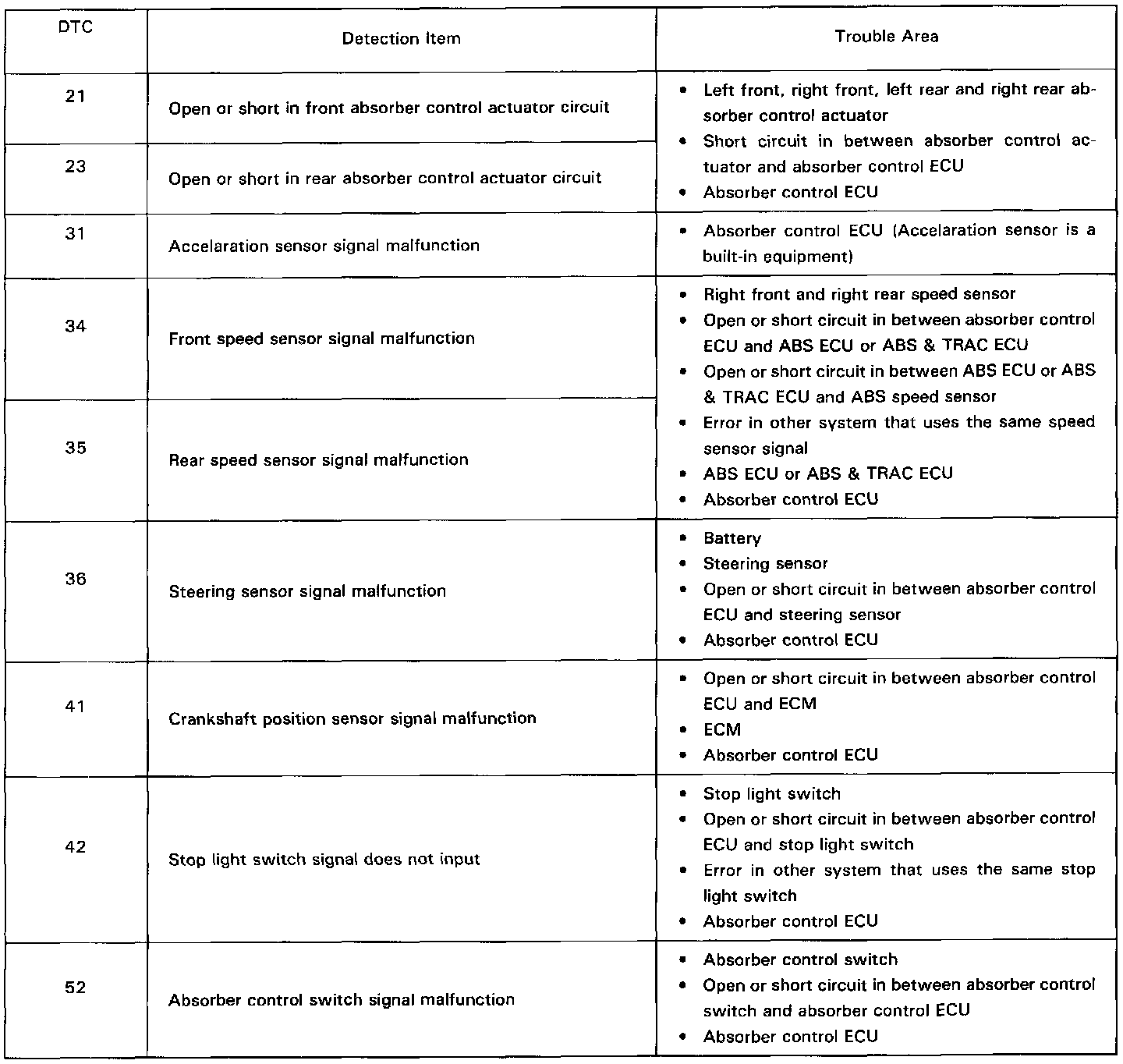

If a malfunction code is displayed during the DTC check identify the DTC code and check the circuit listed that the code.
NOTICE:
- DTCs 36, 42 and 52 can be detected only in the input signal inspecting mode.
- All DTCs are erased when the ignition switch is turned off.
